Specifications
1.240mm power cable
2.ASTM IEC BS Standard.
3.Professional Manufacturer of 22 Years.
4.Prompt Delivery
Application
This product is used for AC 35kV and below power distribution circuit,especially for the important places havin high requiremet for cables flame retardancy, like railway, tunnel, power station, petroleum, chemical industry and high building.

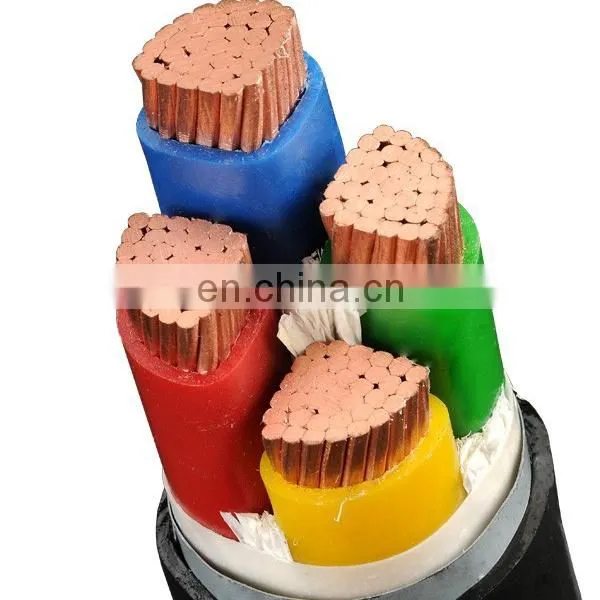

Product Description:
1. Conductors: copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4. PVC or XLPE sheathed.
5. Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6. Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.
Characteristics of 240mm Power Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Type and Specifiction
PVC Insulation Electric Cable
TYPE | Description of Cable
| Main Applications
| |
CU core | AL core | ||
VV | VLV | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY | VLY | Copper/Aluminium core,PVC insulated,PE sheathed power cable | |
VV22 | VLV22 | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 | VLV23 | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable | |
VV32 | VLV32 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable | Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 | VLV33 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable | |
VV42 | VLV42 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable | Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 | VLV43 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable | |
XLPE Insulated electric cable
Type | Description | Application | |
Cu Core | Al Core | ||

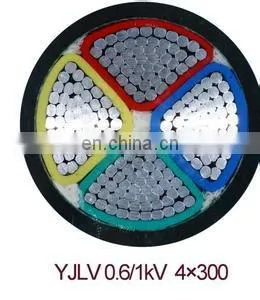

YJV ZR-YJV | YJLV ZR-YJLV | Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power Cable | Can be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. |
YJV22 ZR-YJV22 | YJLV22 ZR-YJLV22 | Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power Cable | Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. |
YJV32 ZR-YJV32 | YJLV32 ZR-YJLV32 | Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable | Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force. |
YJV42 ZR-YJV42 | YJLV42 ZR-YJLV42 | Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable | Can be laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force. |
Specificiation
pvc sheathed electric cable pvc sheathed electric cable pvc sheathed electric cable pvc sheathed electric cable.
Conductor: Copper or Aluminum, stranded
Insulation: PVC(polyvinyl chloride)
Sheath: PVC or PE
Rated voltage: 0.6/1KV
Number of cores: One, two, three, four, five.
Reliable quality,lowest price,factory direct sell,fast delivery,best and sincere service. pvc sheathed electric cable pvc sheathed electric cable
Specific Property for Using
1).The long-time permissible working temperature of pvc sheathed electric cable conductive core is not more than 70°C.
2).During short circuit (max permanent time is not more than 5 seconds),the max temperature of pvc sheathed electric cable conductor is not more than 165°C.
3).The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4).Our pvc sheathed electric cable have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
5).Light weight, good bending property and easy installation and maintenance.
pvc sheated electric cable specifications pvc sheathed electric cable

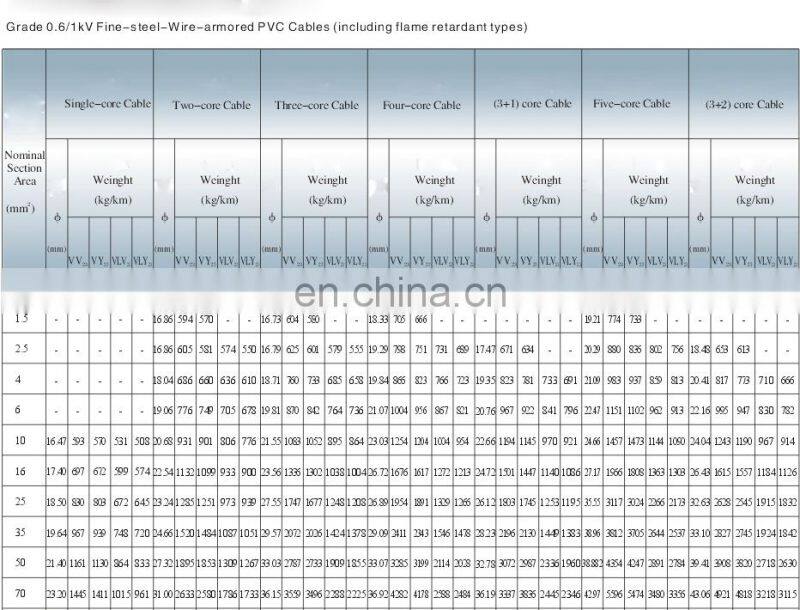

Technical data
| Specification (mm2) | Insulation thickness (mm) | Sheath thickness (mm) | O.D (mm) | Reference weight of cable (kg/km) | Max D.C resistance at 20°C (Ω/km) | Recommended Current Capacity (A) | |||
| Cu | Al | Cu | Al | Cu | Al | ||||
| 4*4+1*2.5 | 0.7 | 1.5 | 14.5 | 331 | 214 | 4.61 | 7.41 | 34 | 27 |
| 4*6+1*4 | 0.7 | 1.5 | 15.9 | 435 | 259 | 3.08 | 4.61 | 43 | 35 |
| 4*10+1*6 | 0.7 | 1.5 | 18.9 | 649 | 359 | 1.83 | 3.08 | 60 | 47 |
| 4*16+1*10 | 0.7 | 1.5 | 21.9 | 965 | 499 | 1.15 | 1.91 | 83 | 64 |
| 4*25+1*16 | 0.9 | 2 | 26.2 | 1456 | 725 | 0.727 | 1.2 | 105 | 82 |
| 4*35+1*16 | 0.9 | 2 | 28.8 | 1863 | 882 | 0.524 | 0.868 | 125 | 100 |
| 4*50+1*25 | 1 | 2 | 33.4 | 2633 | 1216 | 0.387 | 0.641 | 160 | 125 |
| 4*70+1*35 | 1.1 | 2 | 38.8 | 3565 | 1581 | 0.268 | 0.443 | 200 | 155 |
| 4*95+1*50 | 1.1 | 2 | 44.1 | 4735 | 2028 | 0.193 | 0.32 | 245 | 200 |
| 4*120+1*70 | 1.2 | 2.5 | 49.5 | 5977 | 2512 | 0.153 | 0.253 | 285 | 220 |
| 4*150+1*70 | 1.4 | 2.5 | 54.1 | 7276 | 3055 | 0.124 | 0.206 | 325 | 250 |
| 4*185+1*95 | 1.6 | 3 | 60.5 | 9055 | 3797 | 0.0991 | 0.164 | 375 | 295 |
| 4*240+1*120 | 1.7 | 3 | 68.2 | 11567 | 4763 | 0.0754 | 0.125 | 440 | 345 |
We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC ,UL certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;
