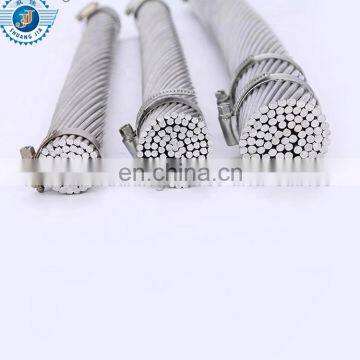

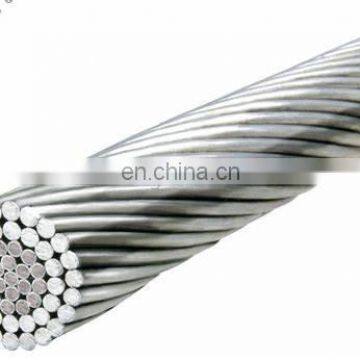

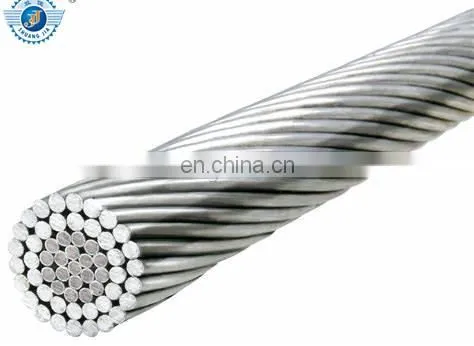

Help CenterIRAM 63005 25KV 300mm2 240mm2 185mm2 95 Mm2 35mm2 AAAC XLPE Cable
Related Products
-
Aluminium Alloy Conductor Bare Conductor ASTM B231M AAAC CABLEUS$ 0.02 - 3.2MOQ: 1 Meter -
ASTM B231M AAAC CABLE AKRON/AZUSA/ANAHEIM/BUTTE/CAIRO/FLINT CODEUS$ 0.02 - 3.2MOQ: 1 Meter
-
ASTM B231M Standard AAC AAAC Cable Flint /Darien/Greeley/ELGINUS$ 0.02 - 3.2MOQ: 1 Meter
-
British Standard BS3242 AAC AAAC REDWOOD/SORBUS/RUBUS/YEWUS$ 0.02 - 3.2MOQ: 1 Meter
-
IEC 61089 Standard AAAC AAC ACSR CABLE 16/25/40/100/125/200 Mm2US$ 0.1 - 3.2MOQ: 1000 Meters
The AAAC Protected Cable accoridng to IRAM ,the Conductors as following :
1. Aluminum Conductor
The conductors must be made of aluminum wire of class 2 circular formation compacted according to IRAM-NM-280, and may be included when it is expressly requested, the longitudinal blockage against the passage of water, according to IEC 60502-2.
The different layers of wire must have alternate wiring directions, the direction of the last layer being to the right.
Wires, before wiring, must comply with IRAM 2176
2. Aluminum Alloy Conductor
The conductors must be made of aluminum alloy wires of circular formation, in accordance with IRAM 2212, and may include, when requested, longitudinal blocking against the water pass, in accordance with IEC 60502-2.
3.Conductors made of aluminum with steel core
The conductors shall consist of aluminum wires wired on a non-compacted circular forming steel core in accordance with IRAM 2187 Parts 1 or 2, except for the inclusion of a grease layer between the steel core and the wire layer of aluminum.
The minimum sections, in square millimeters, shall be as specified in the following table:
U | Aluminum | AL Alloy | ACSR |
13,2kV | 25 | 25 | 25/4 |
33 kV | 50 | 50 | 50/8 |
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
