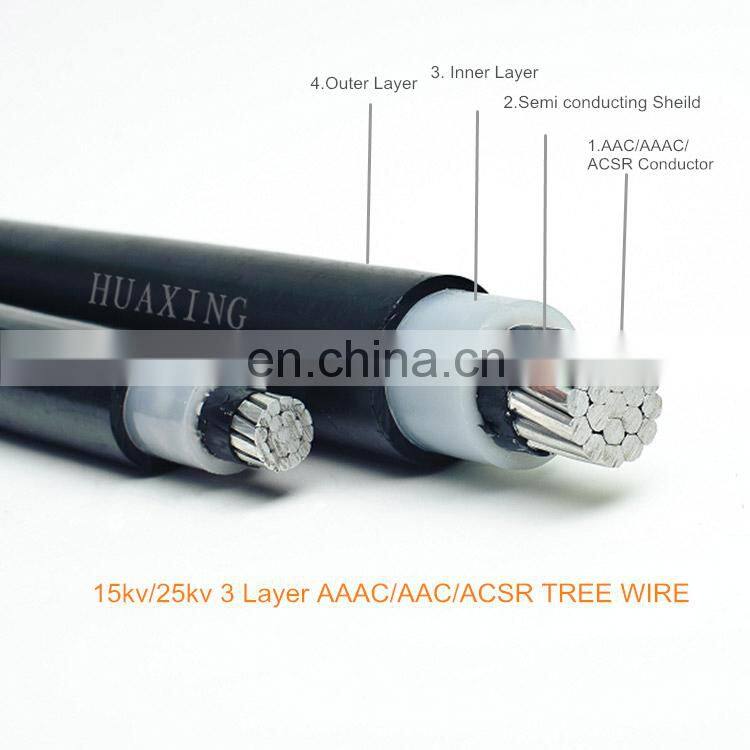

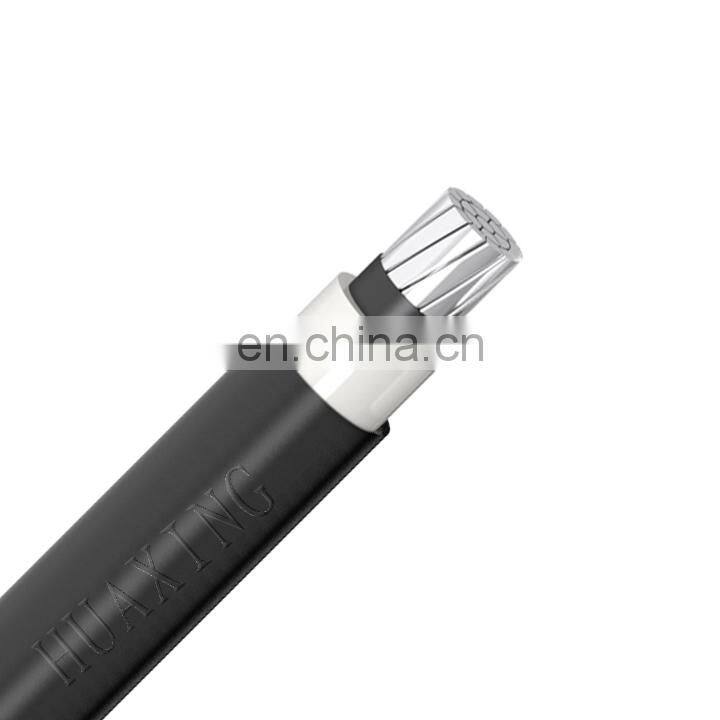

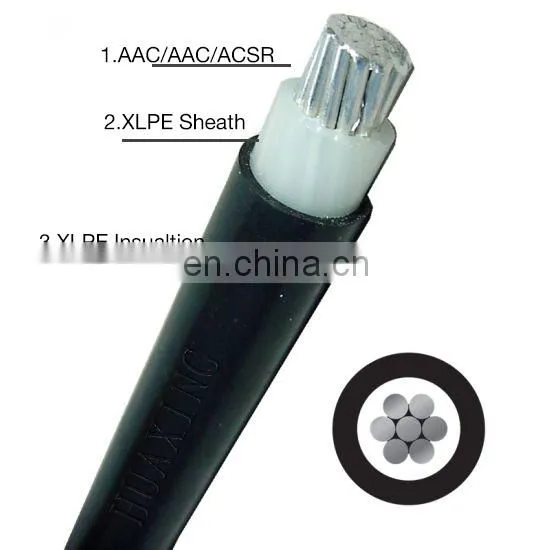

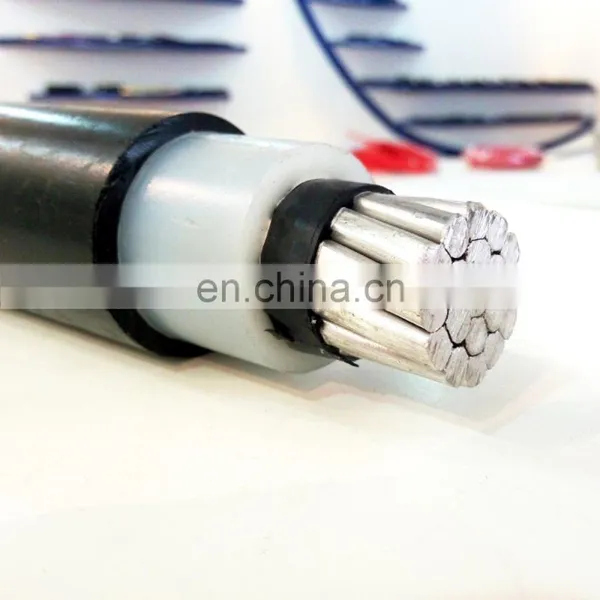

25KV 3 LAYER AAC Cable
Aluminum Conductors. Track-Resistant HD Polyethylene or Track-Resistant Crosslinked Polyethylene Covering.
Construction
Conductors are concentrically stranded, AAC (1350-H19), either compressed or full compact depending on conductor size, AAAC or ACSR. Available with high-density track-resistant polyethylene (HDTRPE) or Track-Resistant Crosslinked Polyethylene (XLPE) covering. Strand shield option available as shown in illustration.
Application
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; However, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; Particularly useful in congested areas such as alleyways or tight corridors.
Specifications
15kV - 35kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications:
ASTM B230
ASTM B231
ASTM B232
ASTM B398
ASTM B399
ASTM B400
| 3-Layer 25kV AAAC Tree Wire | |||||||||
| Size | Equivalent | Conductor Diameter | Covering Thickness (mils) | Cable O.D. | Rated Strength | Weight per 1000 ft. | |||
| (kcmil) | AAC (AWG or kcmil) | Stranding | (mils) | Conductor Shield | Inner Layer | Outer Layer | (mils) | (lbs) | (lbs) |
| 48.69 | 4 | 7 | 6.25 | 0.375 | 3.125 | 3.125 | 19.5 | 719.14 | 102.15 |
| 77.47 | 2 | 7 | 7.9 | 0.375 | 3.125 | 3.125 | 21.15 | 1144.08 | 124.85 |
| 123.3 | 1/0 | 7 | 9.95 | 0.375 | 3.125 | 3.125 | 23.2 | 1822.36 | 157.99 |
| 155.4 | 2/0 | 7 | 11.175 | 0.375 | 3.125 | 3.125 | 24.425 | 2202.35 | 179.78 |
| 195.7 | 3/0 | 7 | 12.55 | 0.375 | 3.125 | 3.125 | 25.8 | 2774.39 | 206.12 |
| 246.9 | 4/0 | 7 | 14.075 | 0.375 | 3.125 | 3.125 | 27.325 | 3497.62 | 238.35 |
| 312.8 | 266.8 | 19 | 16.05 | 0.375 | 3.125 | 3.125 | 29.3 | 4494.60 | 277.39 |
| 394.5 | 336.4 | 19 | 18 | 0.375 | 3.125 | 3.125 | 31.275 | 5434.38 | 325.06 |
| 465.4 | 397.5 | 19 | 19.575 | 0.375 | 3.125 | 3.125 | 32.825 | 6374.16 | 365.47 |
| 559.5 | 477 | 19 | 21.45 | 0.5 | 3.125 | 3.125 | 34.95 | 7681.68 | 423.13 |
| 652.4 | 556.5 | 19 | 23.175 | 0.5 | 3.125 | 3.125 | 36.675 | 8948.34 | 473.98 |
| 740.8 | 636 | 37 | 24.75 | 0.5 | 3.125 | 3.125 | 38.25 | 9969.84 | 521.19 |
| 927.2 | 795 | 37 | 27.7 | 0.5 | 3.125 | 3.125 | 41.2 | 12462.30 | 630.61 |
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees ,our products have exported to more than 50 countries.
We are the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
