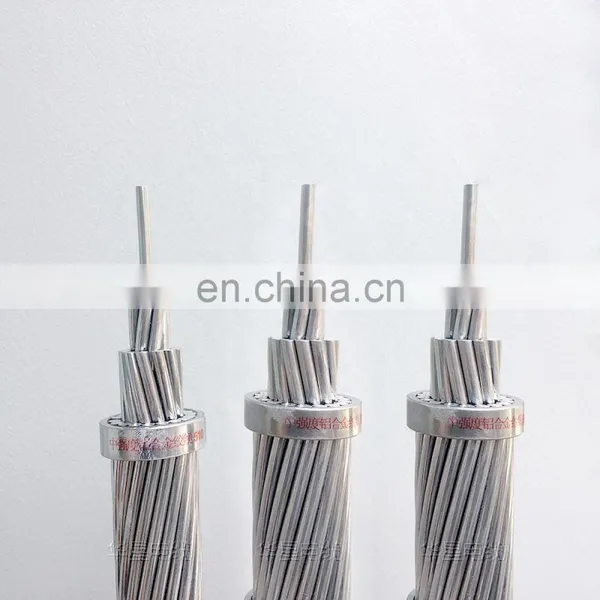

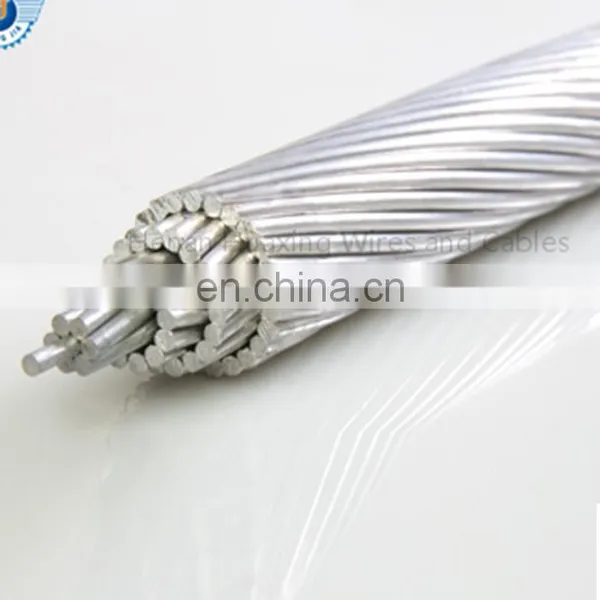

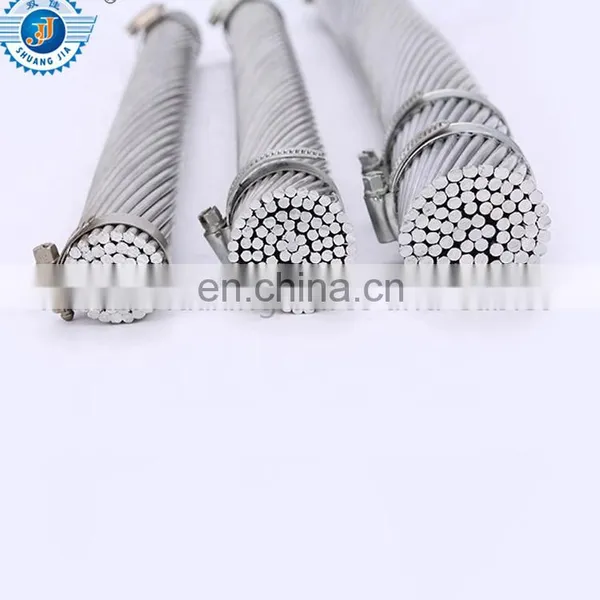

ASTM B231M Standard AAC AAAC Cable Flint /Darien/Greeley/ELGIN
US$ 0.02 - 3.2
MOQ: 1 Meter
Key Specifications
Get Latest Price
Brand Name:
shuangjia
Place of Origin:
Henan, China
Model Number:
AAAC AAC ACSR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
British Standard BS3242 AAC AAAC REDWOOD/SORBUS/RUBUS/YEWUS$ 0.02 - 3.2MOQ: 1 Meter -
IEC 61089 Standard AAAC AAC ACSR CABLE 16/25/40/100/125/200 Mm2US$ 0.1 - 3.2MOQ: 1000 Meters
-
ASTM B399 Standard AAAC AAC ACSR CABLE CONDUCTOR 30.58/77.47/77.47/123.3/BUTTE KCMUS$ 0.1 - 3.2MOQ: 1000 Meters
-
AAC DIN 48201 Standard 300mm2/400mm2/500mm2/600mm2/100mm2 AACUS$ 0.02 - 3.2MOQ: 1 Meter
-
25kv 3Layer ACSR/AAAC/AAC CABLE TREE WIRE SAC CABLEUS$ 0.5 - 4MOQ: 1 Meter
Brand Name
shuangjia
Place of Origin
Henan, China
Model Number
AAAC AAC ACSR
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
1.ALL ALUMINUM ALLOY CONDUCTOR -AAAC
- AAAC (All Aluminum Alloy Conductor)have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics. The conductor have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.referred to have higher strength but lower conductivity than pure aluminum.being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favourable when ice and win loadings are low.
2.Standard
We can supply this conductor according to different recognized standards,such as BS EN50182,IEC61089,ASTM B399,DIN 48 201, customer special specification also can be satisfied.
3.Advantage :
Corrosion Resistance:AAAC exhibits excellent corrosion resistance specially in sea coast areas and in polluted industrial areas due to absence of steel core.
Lower Power losses:Since AAAC is homogeneous (with all strands of Aluminium Alloy) with no steel component the resistance of AAAC is lower as compared to ACSR.
Higher Ampacity:AAAC can carry atleast 15-20% extra current as compared to ACSR of equal size
Longer Life:Experience in foreign countries shows that All Aluminium Alloy Conductors are in service for over 60 years, which is about double the life of ACSR Conductors.
Surface Hardness:The surface hardness of AAAC is 80 BHN as compared to 35 BHN of ACSR. This reduces the damage to surface during handling and therefore leading to lesser corona losses and ratio interference at EHV.
Therma Stability:AAAC are stable upto 90oC against ACSR conductors which are st-able upto 75oC.
Higher Strength To Weight Ratio:Since AAAC has higher strength to weight ratio,span can be increased from 2 to 15% resulting in overall reduction of cost in towers sup-ports and other accessories in transmission line system.
AAAC ASTM B231M-04
| Code word |
Size (kcmil) |
Strand-ing | Diameter (ins.) |
Weight per 1000 ft. (Lbs) |
Rated strength (Lbs) |
Resistance Ω/1000 ft. |
Allowable ampacity+ (Amps) |
ACSR with equiv.diam. |
Approx EC cond. with equivalent resistance |
|||
| Indivi- dual wire |
Complete conductor | DC at 20oC |
AC at 75oC |
Size | Stranding (AL/STL) |
|||||||
| Akron | 30.58 | 7 | 0.0661 | 0.198 | 28.5 | 1110 | .659 | .785 | 107 | 6 | 6/1 | 6 |
| Alton | 48.69 | 7 | 0.0834 | 0.250 | 45.4 | 1760 | .414 | .493 | 143 | 4 | 6/1 | 4 |
| Ames | 77.47 | 7 | 0.1052 | 0.316 | 72.2 | 2800 | .260 | .310 | 191 | 2 | 6/1 | 2 |
| Azusa | 123.3 | 7 | 0.1327 | 0.398 | 115.0 | 4460 | .163 | .195 | 256 | 1/0 | 6/1 | 1/0 |
| Anaheim | 155.4 | 7 | 0.1490 | 0.447 | 144.9 | 5390 | .130 | .154 | 296 | 2/0 | 6/1 | 2/0 |
| Amherst | 195.7 | 7 | 0.1672 | 0.502 | 182.5 | 6790 | .103 | .123 | 342 | 3/0 | 6/1 | 3/0 |
| Alliance | 246.9 | 7 | 0.1878 | 0.563 | 230.2 | 8560 | .0816 | .0973 | 395 | 4/0 | 6/1 | 4/0 |
| Butte | 312.8 | 19 | 0.1283 | 0.642 | 291.7 | 11000 | .0644 | .0769 | 460 | 266.8 | 26/7 | 266.8 |
| Canton | 394.5 | 19 | 0.1441 | 0.720 | 367.9 | 13300 | .0511 | .0610 | 532 | 336.4 | 26/7 | 336.4 |
| Cairo | 465.4 | 19 | 0.1565 | 0.783 | 434.0 | 15600 | .0433 | .0518 | 590 | 397.5 | 26/7 | 397.5 |
| Darien | 559.5 | 19 | 0.1716 | 0.858 | 521.7 | 18800 | .0360 | .0431 | 663 | 477.0 | 26/7 | 477.0 |
| Elgin | 652.4 | 19 | 0.1853 | 0.927 | 608.4 | 21900 | .0309 | .0371 | 729 | 556.5 | 26/7 | 556.5 |
| Flint | 740.8 | 37 | 0.1415 | 0.990 | 690.8 | 24400 | .0272 | .0327 | 790 | 636.0 | 26/7 | 636.0 |
| Greeley | 927.2 | 37 | 0.1583 | 1.108 | 864.6 | 30500 | .0217 | .0263 | 908 | 795.0 | 26/7 | 795.0 |
| +Ampacity based on 75oC conductor temperature, 25oC ambient temperature, 2 ft/sec. wind in sun, emissivity 0.5, 52.5% conductivity. | ||||||||||||
