Help CenterIEC 61089 Standard AAAC AAC ACSR CABLE 16/25/40/100/125/200 Mm2
Related Products
-
ASTM B399 Standard AAAC AAC ACSR CABLE CONDUCTOR 30.58/77.47/77.47/123.3/BUTTE KCMUS$ 0.1 - 3.2MOQ: 1000 Meters -
AAC DIN 48201 Standard 300mm2/400mm2/500mm2/600mm2/100mm2 AACUS$ 0.02 - 3.2MOQ: 1 Meter
-
25kv 3Layer ACSR/AAAC/AAC CABLE TREE WIRE SAC CABLEUS$ 0.5 - 4MOQ: 1 Meter
-
25KV AAC Cable 3 LAYER SAC CABLEUS$ 0.5 - 4MOQ: 1 Meter
-
15kv 3Layer AAAC/XLPE Cable Tree Wire Middle Votale Sac CableUS$ 0.5 - 4MOQ: 1 Meter
Application
The aluminum overhead conductors are suitable for use in spans on wood poles, transmission towers,and other structures where tensile strength and temperature ratings are not required. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
Construction:

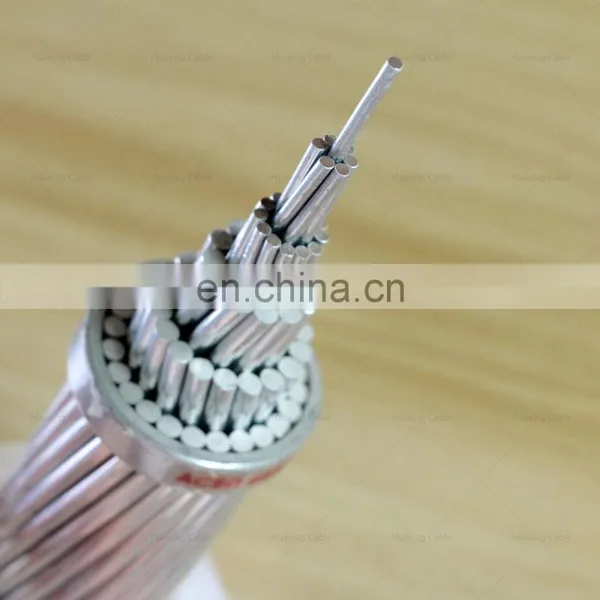

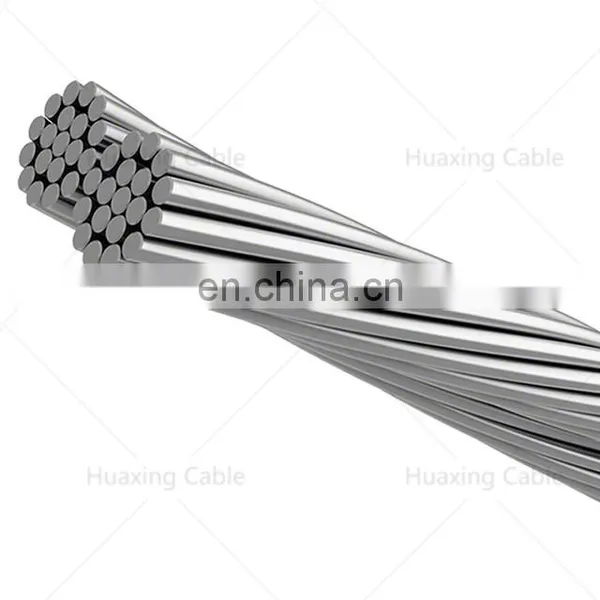

Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers. AAC(All aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handing during installation and use of simpler fittings. The overhead transmissionconductor is corrosion resistant due to its homogeneous construction.
IEC 61089.Standard AAAC
|
Code number |
Calculated area |
Number of wires |
Diameter of wire |
Diameter of cond |
Linear mass |
Rated strength |
Max.D.C. Resistance at 20℃ |
| mm2 | mm2 |
|
mm | mm | Kg/km | Kn | Ω/km |
| 16 | 18.4 | 7 | 1.83 | 5.49 | 50.4 | 5.43 | 1.7896 |
| 25 | 28.8 | 7 | 2.29 | 6.87 | 78.7 | 8.49 | 1.1453 |
| 40 | 46.0 | 7 | 2.89 | 8.67 | 125.9 | 13.58 | 0.7158 |
| 63 | 72.5 | 7 | 3.63 | 10.8 | 198.3 | 21.39 | 0.4545 |
| 100 | 115 | 19 | 2.78 | 13.9 | 316.3 | 33.95 | 0.2877 |
| 125 | 144 | 19 | 3.10 | 15.5 | 395.4 | 42.44 | 0.2302 |
| 160 | 184 | 19 | 3.51 | 17.55 | 506.1 | 54.32 | 0.1798 |
| 200 | 230 | 19 | 3.93 | 19.65 | 632.7 | 67.91 | 0.1439 |
| 250 | 288 | 19 | 4.39 | 21.95 | 790.8 | 84.68 | 0.1151 |
| 315 | 363 | 37 | 3.53 | 24.71 | 998.9 | 106.95 | 0.0916 |
| 400 | 460 | 37 | 3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 |
| 450 | 518 | 37 | 4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 |
| 500 | 575 | 37 | 4.45 | 31.15 | 1585.5 | 169.76 | 0.0577 |
| 560 | 645 | 61 | 3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 |
| 630 | 725 | 61 | 3.89 | 35.01 | 2000.7 | 213.90 | 0.0458 |
| 710 | 817 | 61 | 4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 |
| 800 | 921 | 61 | 4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 |
| 900 | 1036 | 91 | 3.81 | 41.91 | 2861.1 | 305.58 | 0.0632 |
| 1000 | 1151 | 91 | 4.01 | 44.11 | 3179.0 | 339.53 | 0.0289 |
| 1120 | 1289 | 91 | 4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 |
| 1250 | 1439 | 91 | 4.49 | 49.39 | 3973.7 | 424.41 | 0.0231 |
