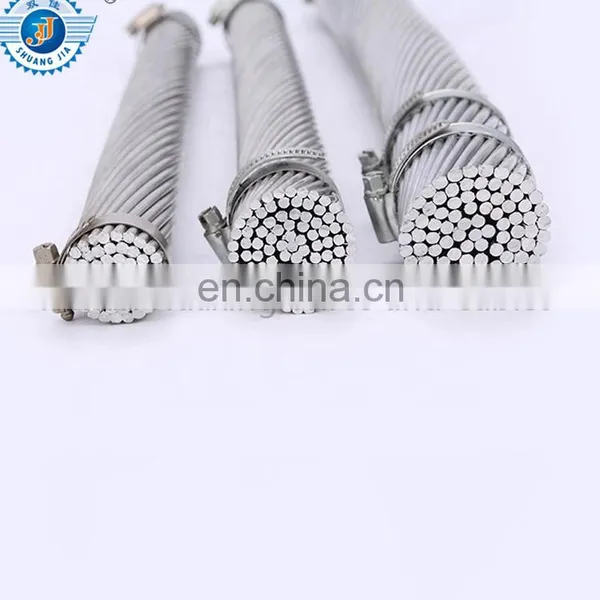

AAC 16MM2/25MM2/50MM2/70MM2/95MM2/120MM2/150MM2
US$ 1 - 1
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
shuangjia
Place of Origin:
Henan, China
Model Number:
AAAC AAC ACSR
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Votage Power Cable 0.6/1kv YJV/YJLV/VV/VLV CableUS$ 1 - 10MOQ: 3000 Meters -
Low Votage Power Cable 0.6/1kv YJV/YJLV/VV/VLV CableUS$ 1 - 10MOQ: 3000 Meters
-
AAAC CONDUCTOR COPPER CONDUCTORUS$ 0.5 - 5.5MOQ: 1 Meter
-
AAC Cable All Aluminum Conductor IEC 61089 StandardUS$ 0.2 - 5.8MOQ: 1 Meter
-
ALL ALUMINUM ALLOY CONDUCTORUS$ 0.5 - 5.5MOQ: 1 Meter
Brand Name
shuangjia
Place of Origin
Henan, China
Model Number
AAAC AAC ACSR
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
Application
The aluminum overhead conductors are suitable for use in spans on wood poles, transmission towers,and other structures where tensile strength and temperature ratings are not required. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
Construction:

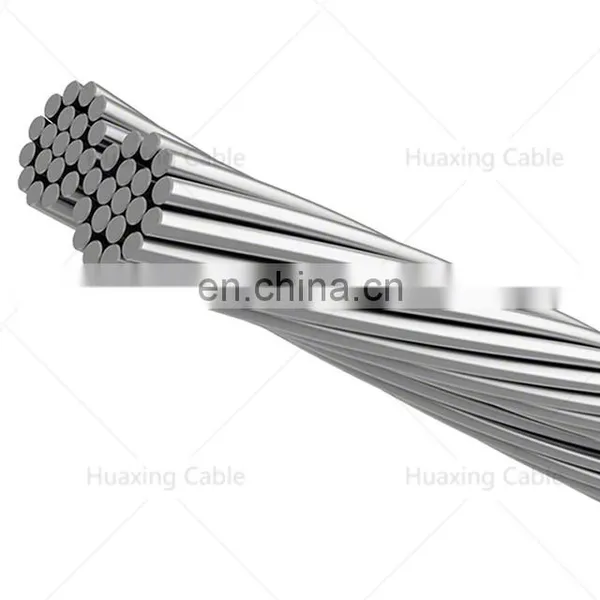

Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers. AAC(All aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handing during installation and use of simpler fittings. The overhead transmissionconductor is corrosion resistant due to its homogeneous construction.
AAC DIN 48201 standard
| code Number | Calculated Cross Section | No./Dia.of Stranding Wire | Overall Diameter | Linear Mass | Calculated Breaking Load | Max.D.C. Resistance at 20ºC |
| mm² | mm² | mm | mm | kg/km | daN | Ω/km |
| 16 | 15.89 | 7/1.70 | 5.1 | 44 | 290 | 1.8018 |
| 25 | 24.25 | 7/2.10 | 6.3 | 67 | 425 | 1.1808 |
| 35 | 34.36 | 7/2.50 | 7.5 | 94 | 585 | 0.8332 |
| 50 | 49.48 | 7/3.00 | 9 | 135 | 810 | 0.5786 |
| 50 | 48.36 | 19/1.80 | 9 | 133 | 860 | 0.595 |
| 70 | 65.82 | 19/2.10 | 10.5 | 181 | 1150 | 0.4371 |
| 95 | 93.27 | 19/2.50 | 12.5 | 256 | 1595 | 0.3084 |
| 120 | 117 | 19/2.80 | 14 | 322 | 1910 | 0.2459 |
| 150 | 147.1 | 37/2.25 | 15.2 | 406 | 2570 | 0.196 |
| 185 | 181.6 | 37/2.50 | 17.5 | 501 | 3105 | 0.1587 |
| 240 | 242.54 | 61/2.25 | 20.2 | 670 | 4015 | 0.1191 |
| 300 | 299.43 | 61/2.50 | 22.5 | 827 | 4850 | 0.0965 |
| 400 | 400.14 | 61/2.89 | 26 | 1105 | 6190 | 0.0722 |
| 500 | 499.83 | 61/3.23 | 29.1 | 1381 | 7600 | 0.0578 |
| 625 | 626.2 | 91/2.96 | 32.6 | 1733 | 9690 | 0.04625 |
| 800 | 802.1 | 91/3.35 | 36.8 | 2219 | 12055 | 0.0361 |
| 1000 | 999.71 | 91/3.74 | 41.1 | 2766 | 14845 | 0.029 |
