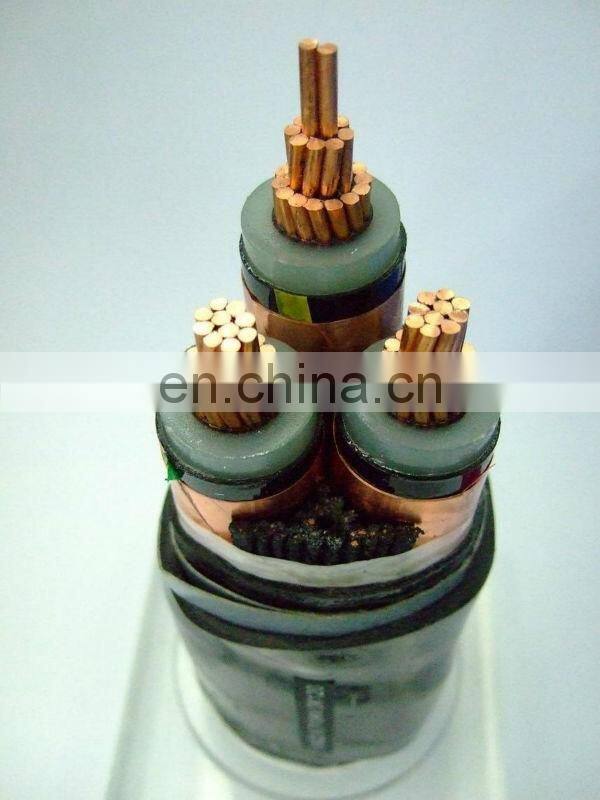

Help CenterXLPE Insulated Steel Wire Armored Multi-core Electric Power Cable 6/10kV
Related Products
-
Red BV 2.5 Electrical WireUS$ 1.6 - 5.5MOQ: 1 Meter -
AAC/AAAC/ACSR/XLPE or PVC Aerial Bunded Cable 25mm 35mm 50mm 70mm ABC CableUS$ 1 - 10MOQ: 1 Meter
-
Thin PVC Insulated Copper Wire Cheap Electrical WiresUS$ 1 - 10MOQ: 1 Meter
-
Thin PVC Insulated Copper Wire Cheap Electrical WiresUS$ 1 - 10MOQ: 1 Meter
-
Electric Aluminum RodUS$ 1 - 5MOQ: 1 Meter
Specifications
CU/XLPE/PVC/SWA/PVC
N2XCY,YJV32, YJVR32
IEC 60502, IEC 60228, IEC 60332, CE, KEMA
LSZH, Fire-resistant optional
Constructions
Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
Inner Semi-conductor Screen
Insulation: XLPE(cross-linked polyethylene) rated at 90°C
Outer Semi-conductor Screen
Copper Tape Screen
Binder: Non-woven
Overall Sheath: PVC type ST2 to IEC 60502, black
Steel Wire Armoring
Overall Sheath: PVC type ST2 to IEC 60502, black
Applications
Suitable for use in power distribution lines with rated voltage 1.8/3kV. For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 6/10kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
