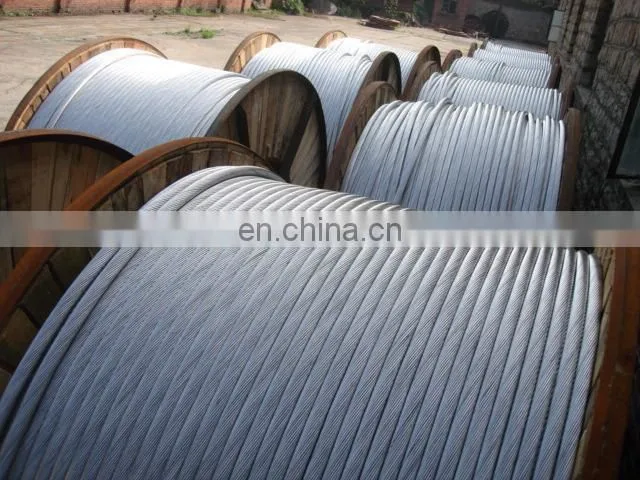

aac(all aluminum conductor) acsr dog conductor price
US$ 1.5 - 5.5
/ Meter
1 Meter(Min. Order)
- T/T Credit Card
You May Like
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | JL/G1A | Type | Bare | |
| Application | Underground | Conductor Material | Aluminum | |
| Conductor Type | Stranded |
Product Description
Specifications
Professional conductor manufacturer
State Grid
ISO 9001
Internation compliance
Leading CABLE production base

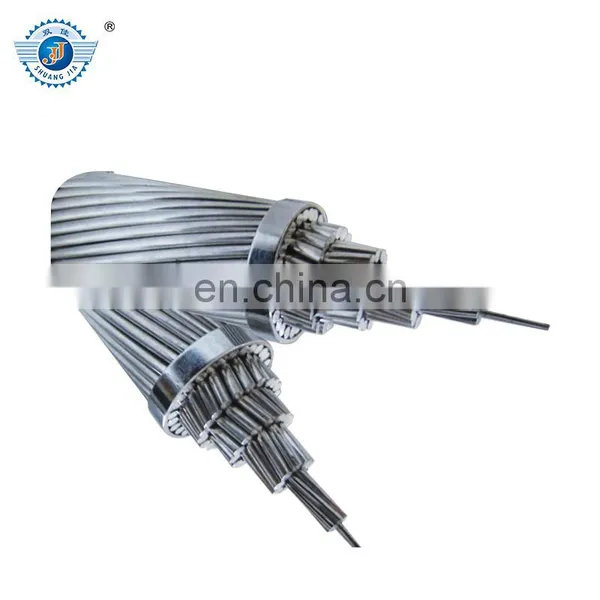

ACSR conductor widely used in power transmission lines with various voltage levels, since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical features exist.
Aluminum Section Area | Strand/wire Dia | Overall Diameter (mm) | Standard Weight (kg/km) | Calculated breaking load | Caculated Resistance at 20 degree | Code No. | ||||
Cmor AWG | Mm2 | AL | St | |||||||
No. | mm | No. | mm | |||||||
80000 | 40.54 | 8 | 2.54 | 1 | 4.24 | 9.32 | 221.70 | 2360 | 0.711 | Grouse |
101800 | 51.61 | 12 | 3.34 | 7 | 2.32 | 11.70 | 378.40 | 4700 | 0.561 | Petrel |
110800 | 56.11 | 12 | 2.44 | 7 | 2.44 | 12.20 | 411.4 | 5110 | 0.516 | Minorca |
134600 | 68.20 | 12 | 2.69 | 7 | 2.69 | 13.50 | 499.9 | 6160 | 0.426 | Leghorn |
159000 | 80.36 | 12 | 2.92 | 7 | 2.92 | 14.60 | 589.1 | 7240 | 0.360 | Guinea |
176900 | 89.41 | 12 | 3.08 | 7 | 3.08 | 15.40 | 566.5 | 7870 | 0.324 | Dotterel |
190800 | 96.50 | 12 | 3.20 | 7 | 3.20 | 16.00 | 707.6 | 8490 | 0.300 | Dorking |
203200 | 102. 80 | 16 | 2.86 | 19 | 2.48 | 18.10 | 1006.0 | 12860 | 0.282 | Brahma |
211300 | 107.00 | 12 | 2.37 | 7 | 3.31 | 16.90 | 784.8 | 9460 | 0.271 | |
