Aluminum Core Electric Wire Overhead line

0.6/1kv xlpe overhead all aluminum cable AAC conductor

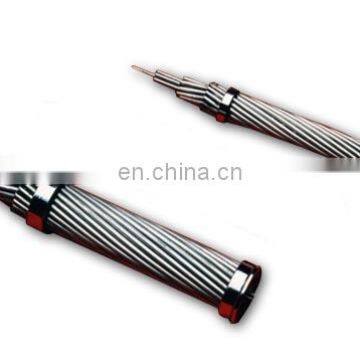

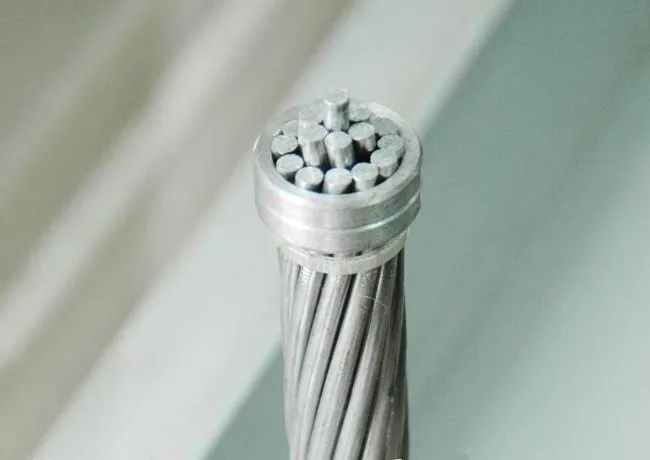

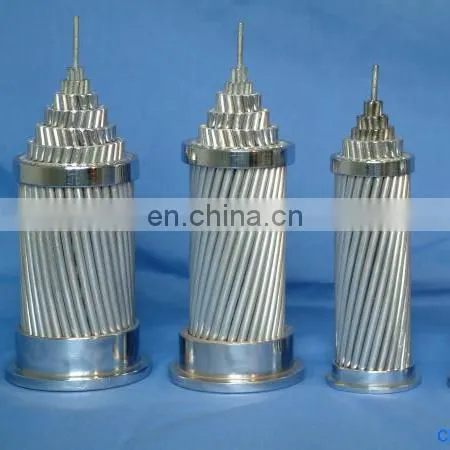

Specification: AAC are composed by bare concentric-lay-standed aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires.

Application:
*AAC are used in overhead power transmission and distribution lines with various grade voltages.
*Under the same weight,AAC is with higher DC resistance and lower costthan copper conductor.
*Aluminum is light and is easy to lay.

Stranded 1350 aluminum conductors shown in this section of data are classified, as follows:
Class AA :For bare conductors usually used in overhead lines.

Class A :For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Class B :For conductors to be insulated with various materials and for conductors indicated under Class A where greater flexibility is required.
Class C: For conductors where greater flexibility is required

Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Note: Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.

AAC bare conductors meet or exceed the following ASTM specifications:
B-230 Aluminum Wire, 1350-H119 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors concentrically stranded.

We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000 m2, building area is about 28,000 m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.

We are also the Long-term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us

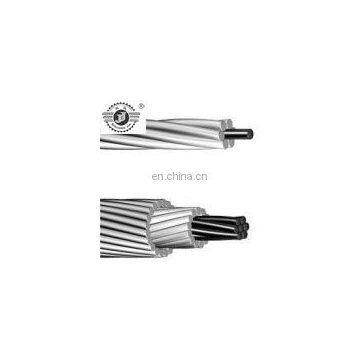

Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on
