Home > Products > Aluminum Conductor > BVV electrical wire

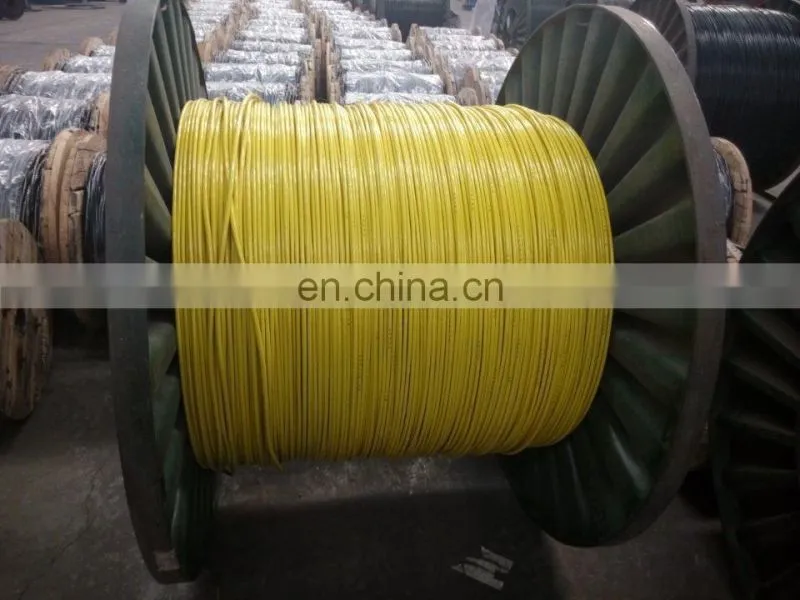

BVV electrical wire
- 40 Kilometer / Kilometers per Month
- Qingdao
- T/T Credit Card
You May Like
-
Different electric wire sizes/BVVB,BV,BLV,BVR,BLVVB
-
Different electric wire sizes/BVVB,BV,BLV,BVR,BLVVB
-
XLPE Insulated Steel Wire Armored Multi-core Electric Power Cable 6/10kV
-
Red BV 2.5 Electrical Wire
-
AAC/AAAC/ACSR/XLPE or PVC Aerial Bunded Cable 25mm 35mm 50mm 70mm ABC cable
-
Thin PVC Insulated Copper Wire Cheap Electrical Wires
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | BVV | Type | Insulated | |
| Application | Overhead | Insulation Material | PVC | |
| Conductor Material | Copper | Conductor Type | Solid |
Product Description
Specifications
electrical wire Rated voltage: 450/750 V
conductor: copper
insulation: XLPE in normal use: 90C
cores: 2~5
filler/sheath:PVC
The XMVK 450/750 V shall be used for light duties in fixed installations. This cable is intended to be used for domestic applications,especially for single connections of power lighting points inside the domestic premises.
code designation
XMvK
Rated voltage:
450/750 V
conductor: plain or tinned
insulation: XLPE in normal use: 90C, in case of short circuit: 250C
cores: 2~5
filler: PVC
sheath:PVC
XMVK unarmoured cable struction | |||||
Conductor section:2.5 mm2 Rated voltage:450/750V | |||||
Line core number and conductor nominal section | Norminal thinkness of insulation(mm) | Norminal thinkness of sheath (mm) | Overall Diameter (mm) | At 20 DC Resistance of conductor (Ω/km) |
|
2x2.5 | 0.6 | 1.4 | 9.2±0.2 | 7.41 |
|
3x2.5 | 0.6 | 1.4 | 9.6±0.2 | 7.41 |
|
4x2.5 | 0.6 | 1.4 | 10.3±0.2 | 7.41 |
|
5x2.5 | 0.6 | 1.4 | 11.5±0.3 | 7.41 |
|
