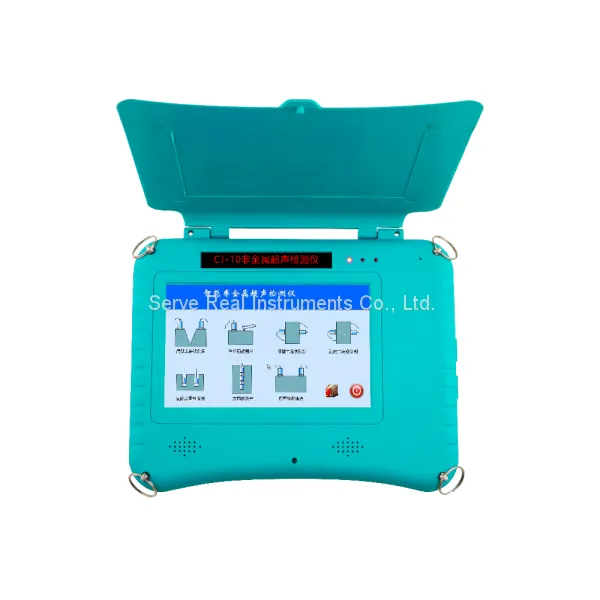

Help CenterUltrasonic Concrete Flaw Detector, Nonmetal Ultrasonic Flaw Detector
Related Products
-
Automatic Pull Off Adhesion Tester ASTM D45413 ASTM D7234 ISO 4624US$ 1000 - 2000MOQ: 1 Set -
Building Sealant Extrusion Tester ISO 8394-2US$ 500 - 1000MOQ: 1 Set
-
Climbing Drum Peel Strength Test Fixture for Sandwich ConstructionsUS$ 300 - 500MOQ: 1 Set
-
Wholesale Electronic Special Extensometer Steel Strand ExtensometerUS$ 1000 - 3000MOQ: 1 Set
-
Electronic Variable Scale Distance Extensometer for Axial Deflection TestingUS$ 1000 - 3000MOQ: 1 Set
The instrument can be used to detect concrete strength, crack depth, concrete homogeneity, damage layer thickness, structural internal defects, etc.
Features
1. Integrates multiple functional modules such as crack depth sounding, impact thickness measurement, strength detection, defect detection, ultrasonic pile measurement, one-shot dual-receiving logging and ultrasonic detection;
2. Two methods of crack depth measurement. Users can measure the crack depth in strict accordance with the regulations, or choose to measure the crack depth directly;
3. Automatic interpretation of sound parameters. The instrument dynamically displays the sampling waveform in real time, and automatically interprets the sound time and the first wave;
4. High receiving sensitivity. High ability to recognize weak signals, can accurately detect the size and scope of defects;
5. Automatically detect the ambient temperature and record the test time;
6. On-site data analysis function. After the test is completed, the test results can be directly analyzed according to the test data;
7. On-site data management function. Users can conveniently view, retest, store, delete and analyze data;
8. Windows data analysis and processing software. The test data can be uploaded to the PC via USB port. Users can perform statistical analysis on the detection data, generate Word and Excel reports, and print them out.
9. Human-computer interaction-touch screen operation, simple and fast;
10. Voice and text prompts throughout the test, friendly human-computer interaction interface;
11. Built-in help files and demonstrations, convenient for operation.
12. Storage-SD card with 2GB capacity can store more than 100,000 measurement files.
13. Energy-saving and low-carbon-use energy-saving rechargeable lithium battery power supply, low power consumption.
Specifications
1. Hardware platform: ARM9 embedded hardware platform, WinCe5.0 operating system
2. True color TFT display with touch screen;
3. Channel: single or dual channel;
4. Receiving sensitivity: ≤10μV;
5. Amplifier bandwidth: 5Hz～500kHz;
6. Amplitude range: 0～177dB;
7. Measuring range of ultrasonic sound: 0μs～629000μs;
8. Measurement resolution during ultrasonic sound: 0.025μs;
9. Measurement accuracy during ultrasonic sound: ≤±0.05μs;
10. Maximum sampling length: ≤64KB;
11. Sampling rate: 40Msps/channel; (sampling interval 0.05μs～400μs, 14 levels adjustable (same))
12. Power supply for the instrument: rechargeable lithium battery;
13. Working time: ≥28 hours;
14. Working temperature: -10℃～＋50℃;
15. Working humidity: ≤90%RH.
16. Measurement curve interface
17. Function Module
18. Outer packaging size: 420*340*130mm
19. Gross weight: between 5.5-7KG (optional accessories according to the box)
