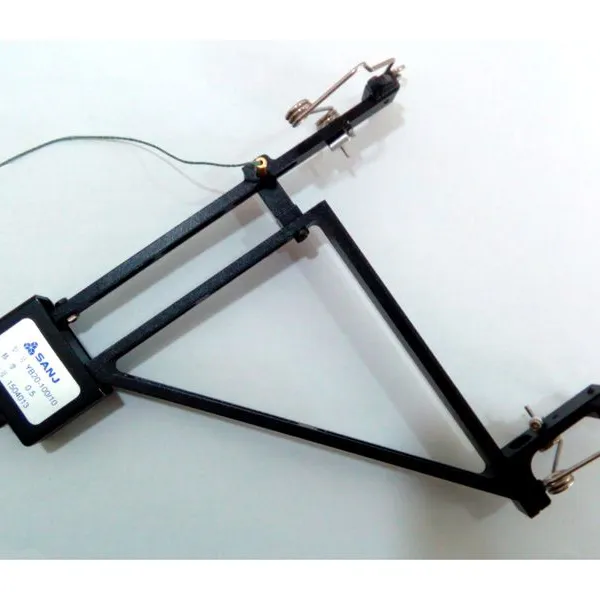

Electronic Variable Scale Distance Extensometer for Axial Deflection Testing

Electronic Variable Scale Distance Extensometer for Axial Deflection Testing thumbnail-1
Electronic Variable Scale Distance Extensometer for Axial Deflection Testing photo-1
US$ 1000 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SEREV REAL
Place of Origin:
China
Model Number:
SERVE REAL
Contact Supplier Request Quote Chat Now
Wuxi Serve Real Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SEREV REAL
Place of Origin China
Model Number SERVE REAL

It is mainly used for axial deflection testing, such as elastic modules E, specified non-proportional extention lengthRpxx, total extention lengthRtxx, specific elongation, strain hardening exponent n and so on.


Scale distance 10-30mm
Maximum deflection 5mm
Strain gage resistance 350Ω
Bridge voltage ≤5V (direct current or alternating current)
Output sensitivity about 2.5 mV/V
Output interface USB(select by request)
Clamping method torsional spring clamping



Scale distance 10-50mm
Maximum deflection 5mm
Strain gage resistance 350Ω
Bridge voltage ≤5V (direct current or alternating current)
Output sensitivity about 2.5 mV/V
Output interface USB(select by request)
Clamping method elastic or torsional spring clamping



Scale distance 25-50mm
Maximum deflection 12.5mm
Strain gage resistance 350Ω
Bridge voltage ≤5V (direct current or alternating current)
Output sensitivity about 2.5 mV/V
Output interface USB(select by request)
Clamping method elastic or torsional spring clamping



Scale distance 20-100mm
Maximum deflection 10mm
Strain gage resistance 350Ω
Bridge voltage ≤5V (direct current or alternating current)
Output sensitivity about 2.5 mV/V
Output interface USB(select by request)
Clamping method elastic or torsional spring clamping
Dimension 120mm*15mm*135mm
Weight 53g


Product Tags: Electronic Extensometer , Electric Extensometer , Axial Deflection Testing , Variable Scale Distance Extensometer
