Application
The anchor bolt pull out tester is suitable to be used for Pull out resistance test of anchor bolt, anchor cable, steel bar,
expansion bolt, chemical anchor bolt, anchoring parts, also
can test the glass curtain wall field pull out resistance,
it’s kind of common civil engineering testing equipment.
Features
High quality steel cast body, quick reset
Overload protection, digital readout, Dust-proof, Peak value maintain
Dust-proof system and high quality sealing ring with hydraulic cylinder guarantee long tooling life
Suitable for laboratory and field use
Hydraulic cylinder: 10T-30T: manual reset; 50T-100T: Self-reset, can equip electric pump
Technical specifications
Model |
Oil cylinder center hole |
Oil tank travel |
Testing range |
Weight |

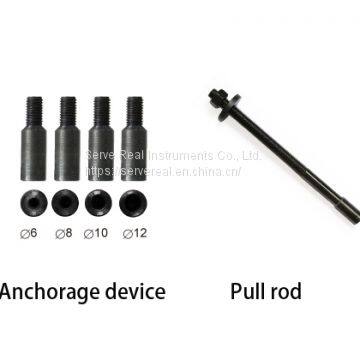

Normal anchorage device |
Pull Rod |
Conversion connector |
ML-10T |
27mm |
60mm |
0-100kn |
6Kg |
Φ6-20 |
M18 |
M6-20 |
ML-20T |
34mm |
80mm |
0-200kn |
13Kg |
Φ6-25 |
M22 |
M6-24 |
ML-30T |
45mm |
80mm |
0-300kn |
15Kg |
Φ6-32 |
M24 |
M6-27 |
ML-50T |
60mm |
120mm |
0-500kn |
25Kg |
Φ6-32 |
M30 |
M6-39 |
ML-100T |
90mm |
150mm |
0-1000kn |
58Kg |
Φ6-40 |
M40 |
M6-39 |
Standard configuration
1. Manual pump
2. Hydraulic cylinder
3. Digital pressure gauge
4. 3m quick coupling high pressure oil pipe
5. Carrying case
