Standard: GB 50204-2002
Description

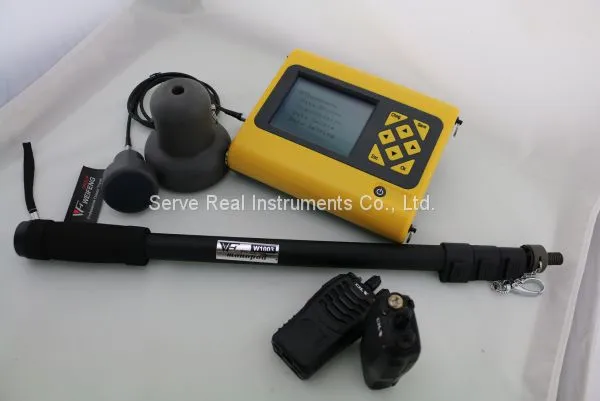

The gauge is used to test the thickness of non-metal board such as floor slab, concrete, rock, glass board, it’s portable, easy to use, and accurate in test. It’s widely used in construction field.
Features
Automatic Interpretation and seal, real time indicate thickness value
Wireless communication between probes
Dual side detection without any coupling agent
fast detection can detect 3-5 points within 3mins
high detection accuracy
thickness direct indication, test result can be saved and printed
Technical specifications
1. Thickness testing range: 40mm~600mm
2. Max error: 40 ~400mm: ±1mm, 401~600mm: ±2mm
3. Data storage mass: 40000 units test points
4.Working environment: -10℃~+ 40℃ , RH
5. 6 pcs AA size alkaline batteries, power-on time for more than 30hours.
