2020 Slocable New Type 2 To1, 3 to 1, 4 to 1, 5 To1 PV Solar Wire Branch Connector
- shenzhen
- T/T Credit Card
You May Like
-
High Voltage DC PV 14 12 10 8 AWG Solar Cable Connector
-
Slocable Tin Plated PPO Insulated IP68 CN40 Solar Connector 10mm2
-
Slocable PV Solar Inverted Panel Receptacle CN40 1500V Solar Connector
-
Slocable DC1000V 50A PV Panel Receptacle Solar CN40 Connector Panel Mount Made in China
-
Slocable CE TUV Approved IP67 IP68 50A Rated Current Solar Energy CN40 Serial Connector
-
Slocable DC Receptacle TUV IP68 Waterproof CN40 Connector for Panel Mount
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | BC40~60 Branch Connector | Type | MCX | |
Product Description

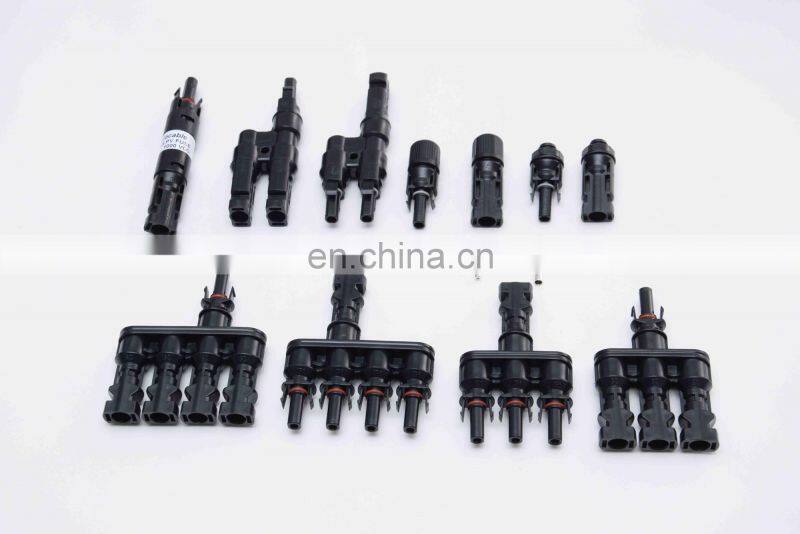

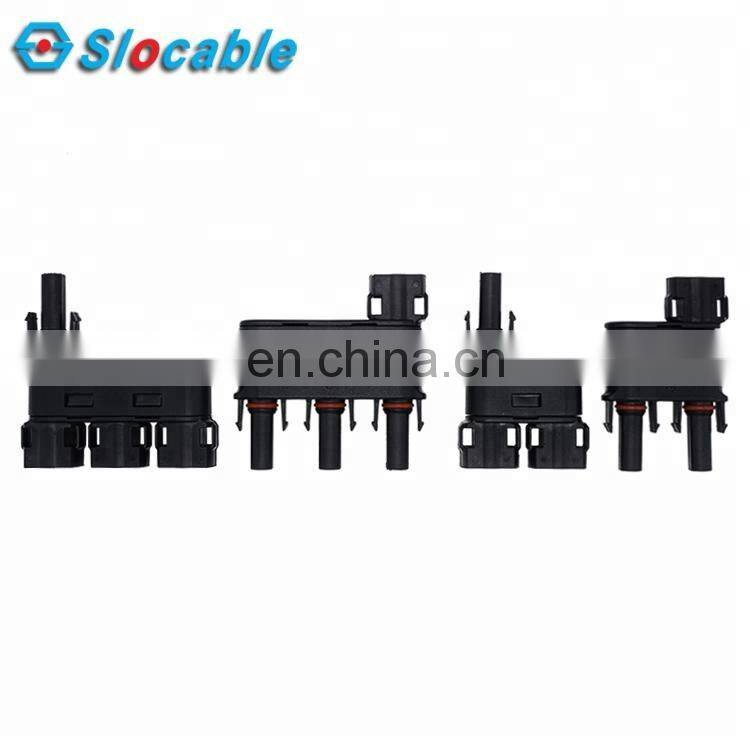

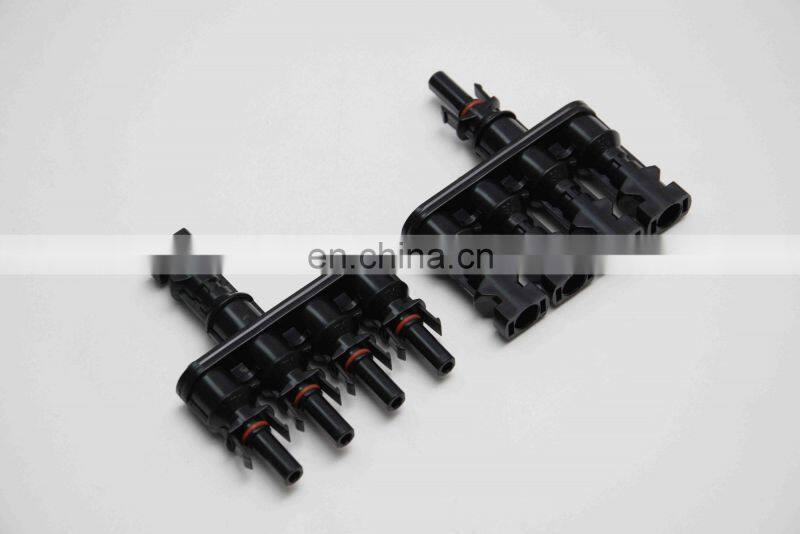

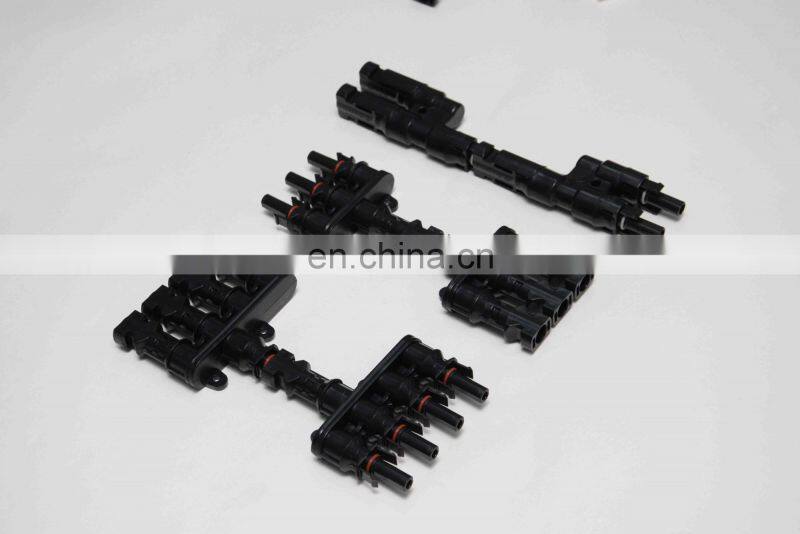

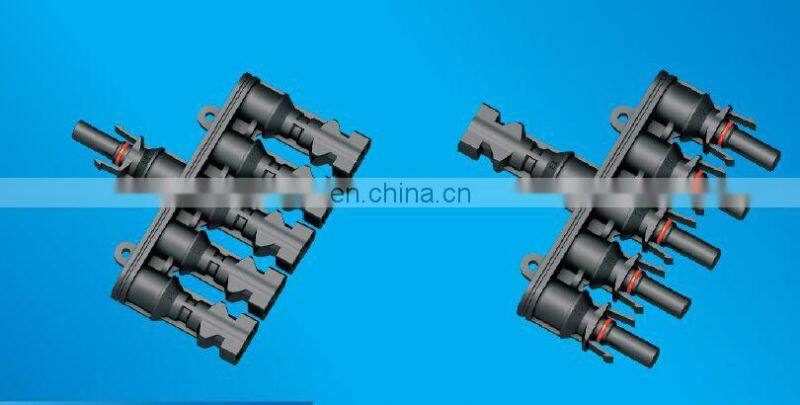

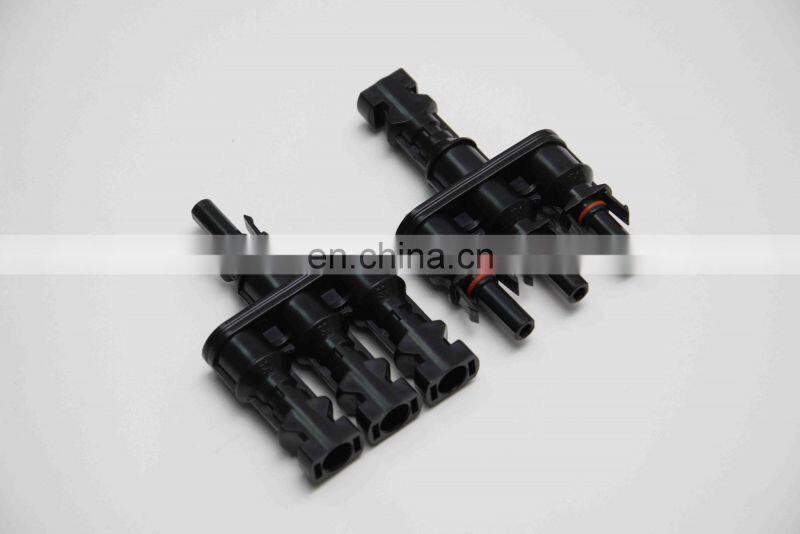

2020 Slocable new type 2 to1, 3 to 1, 4 to 1, 5 to1 PV Solar Branch Connector
Detail Information and Advantages of Branch Connector:
|
Technical Data of SOLAR Branch Connector
(Take 2 to1 branch connector for an example)
|
Technical Data of solar Branch Connector |
|
|
Rated Current : 30A 50A |
Degree of Protection: IP2*/IP68 |
|
Rated Voltage: 1500V DC |
Flame Class: UL94-V0 |
|
Test Voltage: 6000V (50Hz,1min) |
Safety Class: II |
|
Overvoltage Category: CATIII |
Temperature Range: -40℃ ~ +85℃ |
|
Contact Resistance: 1mΩ |
Insertion Force/Withdrawal Force: ≤50N/≥50N |
|
Contact Material: Copper, Tin Plated |
Insulation Material: PPO |
Pictures:
Certificates
Our Factory
Our Exhibition
Successful Cases
FAQ
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables,PV Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 12 years experience.
Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / TradeManager,We'll reply you within 2 hours in the Working Time.
Q3: How does your company do regarding Quality Control?
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
IF any inquiry, don't hesitate to contact me!
