Slocable High Quality CN40 waterproof DC Solar Connectors Made in China
Model NO. CN40-CM (CN40-CMMM&CN40-CFPM)
CE Approved
Item Availability:IN STOCK
Detail Information and Advantages of Solar Connector
-
- Simple on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Accomodates PV cables with different insulation diameters
- High current carrying capacity
- CE and TUV certificates
Technical Data of Solar Connector
|
Order NO. |
(Part P/N) |
Cable Spec. |
||
|
Connector |
Terminal |
Conductor Size |
Cable OD |
|
|
CN40-CMMM-14 |
CN40-CMMM-H |
CN40-CM-T14 (2.5mm2) |
AWG 14(2.5mm2) |
OD4.5-8.5mm |
|
CN40-CMMM-12 |
CN40-CM-T12 (4.0mm2) |
AWG 12(4.0mm2) |
||
|
CN40-CMMM-10 |
CN40-CM-T10 (6.0mm2) |
AWG 10(6.0mm2) |
||
|
CN40-CMMM-8 |
CN40-CM-T8 (10.0mm2) |
AWG 8(10.0mm2) |
||
|
Order NO. |
(Part P/N) |
Cable Spec. |
||
|
Connector |
Terminal |
Conductor Size |
Cable OD |
|
|
CN40-CFPM-14 |
CN40-CFPM-H |
CN40-CF-T14(2.5mm2) |
AWG 14(2.5mm2) |
OD4.5-8.5mm |
|
CN40-CFPM-12 |
CN40-CF-T12(4.0mm2) |
AWG 12(4.0mm2) |
||
|
CN40-CFPM-10 |
CN40-CF-T10(6.0mm2) |
AWG 10(6.0mm2) |
||
|
CN40-CFPM-8 |
CN40-CF-T8(10.0mm2) |
AWG 8(10.0mm2) |
||
| Technical Data of Solar Connector | |||
| Rated Current | 50A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1500V/1000V DC | Flame Class | UL94-V0 |
| Test Voltage | 6000V (50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable |
OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <0.5 mΩ | Connecting System | Crimp Connection |
|
Insertion Force / Withdrawal Force |
≤50N/≥50N | Temperature Range | -40℃~+85℃ |
| Contact Material | Copper, Tin Plated | Insulation Material | PPO |

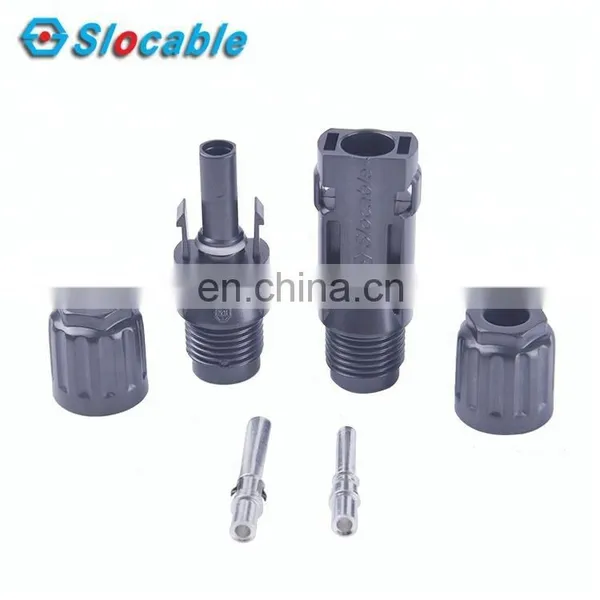

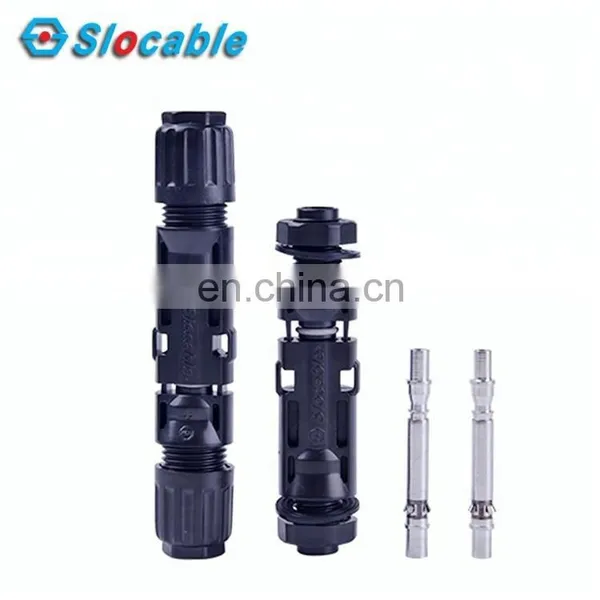

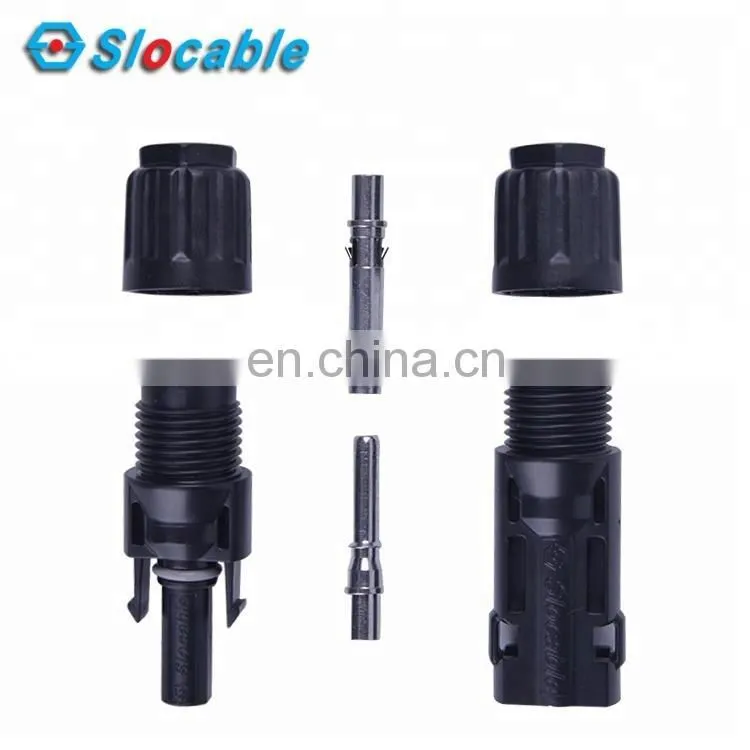

Pictures of Solar Connector
Click the following pictures to get more Slocable products:
Installation Instructions of Solar Connector
Shipment of Solar Connector:
|
1.We ship to world-wide;
3.Item shipped from China mainland using airmail by EMS, UPS, DHL, Fedex, TNT or Hong kong Post Office, reach most of the countries within 4 to 10 business days;
4.Delivery time: 3-20 working days on payment received (except holiday), most we have some stock to support for emergency;
5.After we ship the item, we will email you the shipping information, as well as the tracking number;
6.If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.
|
