Slocable Photovoltaic Energy System 12AWG Cable Connection
Model NO. CN40-CM (CN40-CMMM&CN40-CFPM)
CE TUV ISO Approved
Item Availability:IN STOCK
Detail Information and Advantages of Cable Connection
|
Technical Data of Cable Connection
|
Order NO. |
(Part P/N) |
Cable Spec. |
||
|
Connector |
Terminal |
Conductor Size |
Cable OD |
|
|
CN40-CMMM-14 |
CN40-CMMM-H |
CN40-CM-T14 (2.5mm2) |
AWG 14(2.5mm2) |
OD4.5-8.5mm |
|
CN40-CMMM-12 |
CN40-CM-T12 (4.0mm2) |
AWG 12(4.0mm2) |
||
|
CN40-CMMM-10 |
CN40-CM-T10 (6.0mm2) |
AWG 10(6.0mm2) |
||
|
CN40-CMMM-8 |
CN40-CM-T8 (10.0mm2) |
AWG 8(10.0mm2) |
||
|
Order NO. |
(Part P/N) |
Cable Spec. |
||
|
Connector |
Terminal |
Conductor Size |
Cable OD |
|
|
CN40-CFPM-14 |
CN40-CFPM-H |
CN40-CF-T14(2.5mm2) |
AWG 14(2.5mm2) |
OD4.5-8.5mm |
|
CN40-CFPM-12 |
CN40-CF-T12(4.0mm2) |
AWG 12(4.0mm2) |
||
|
CN40-CFPM-10 |
CN40-CF-T10(6.0mm2) |
AWG 10(6.0mm2) |
||
|
CN40-CFPM-8 |
CN40-CF-T8(10.0mm2) |
AWG 8(10.0mm2) |
||
| Technical Data of Cable Connection | |||
| Rated Current | 50A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1500V/1000V DC | Flame Class | UL94-V0 |
| Test Voltage | 8000V (50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable |
OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <0.5mΩ | Connecting System | Crimp Connection |
|
Insertion Force / Withdrawal Force |
≤50N/≥50N | Temperature Range | -40℃~+85℃ |
| Contact Material | Copper, Tin Plated | Insulation Material | PPO |

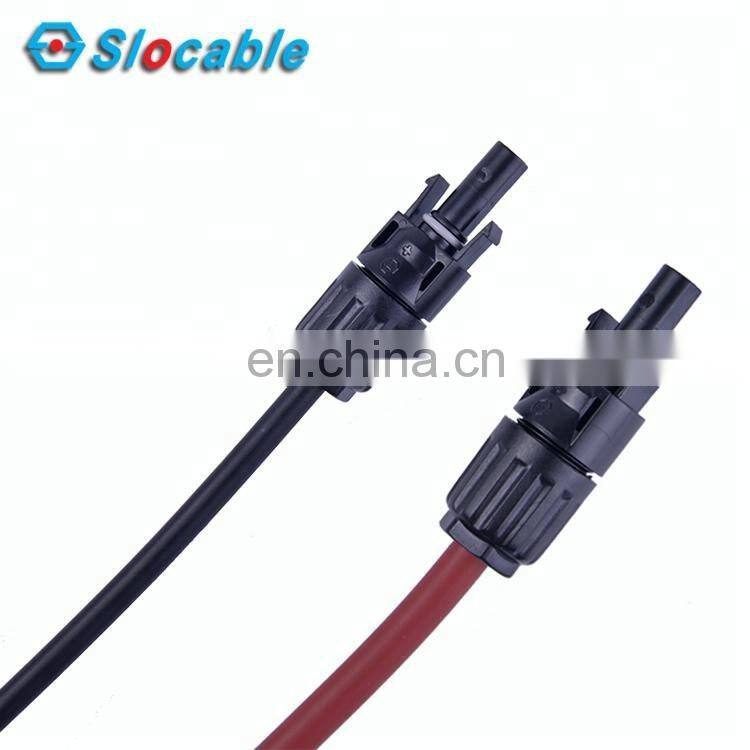

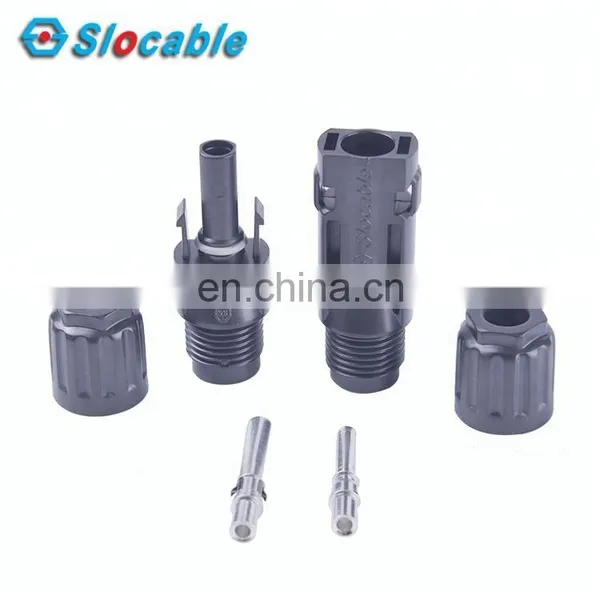

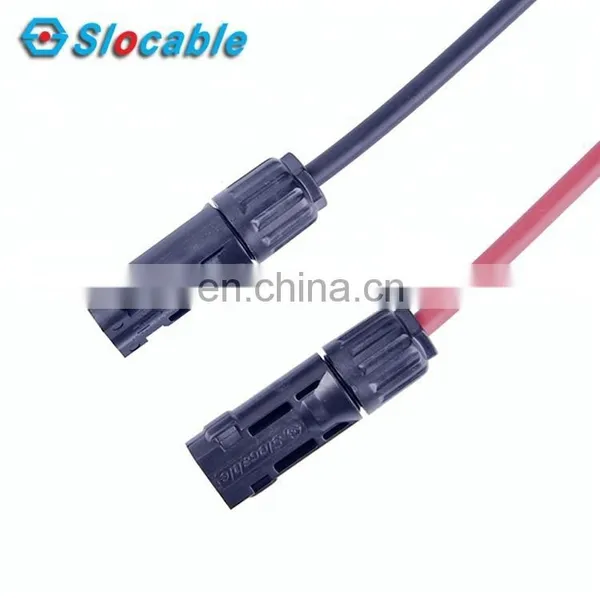

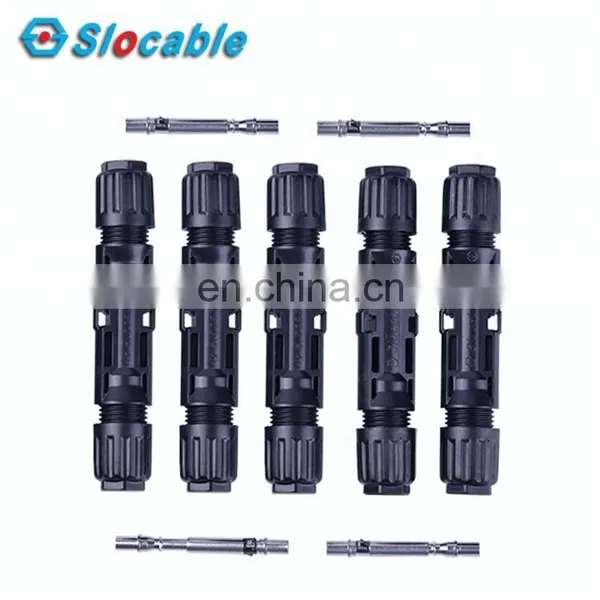

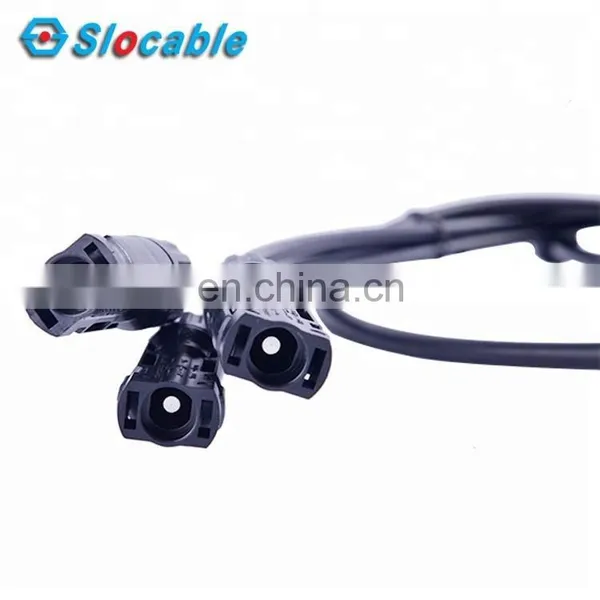

Pictures of Cable Connection
Click the following pictures to get more Slocable products:
Slocable Certificate
Slocable Factory
Slocable Packing and Shipping
|
1. We ship to world-wide;
3. Item shipped from China mainland using airmail by EMS, UPS, DHL, Fedex, TNT or Hong kong Post Office, reach most of the countries within 4 to 10 business days;
4.Delivery time: 3-20 working days on payment received (except holiday), most we have some stock to support for emergency;
5. After we ship the item, we will email you the shipping information, as well as the tracking number;
6.If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.
|
Slocable solar PV exhibition
Successful Cases
FAQ
Q1: What is your company's Main Products? You are the Manufacturer or the trader?
Solar Cables, Solar Connectors, PV Fuse Holder, Circuit breakers and other solar relative products. We're the Manufacturer with more than 12 years' experience.
