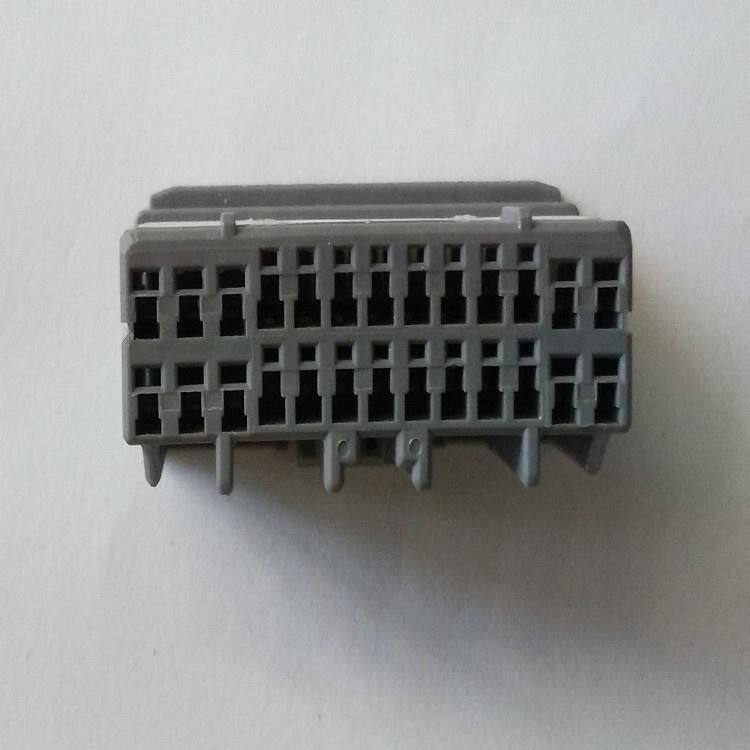

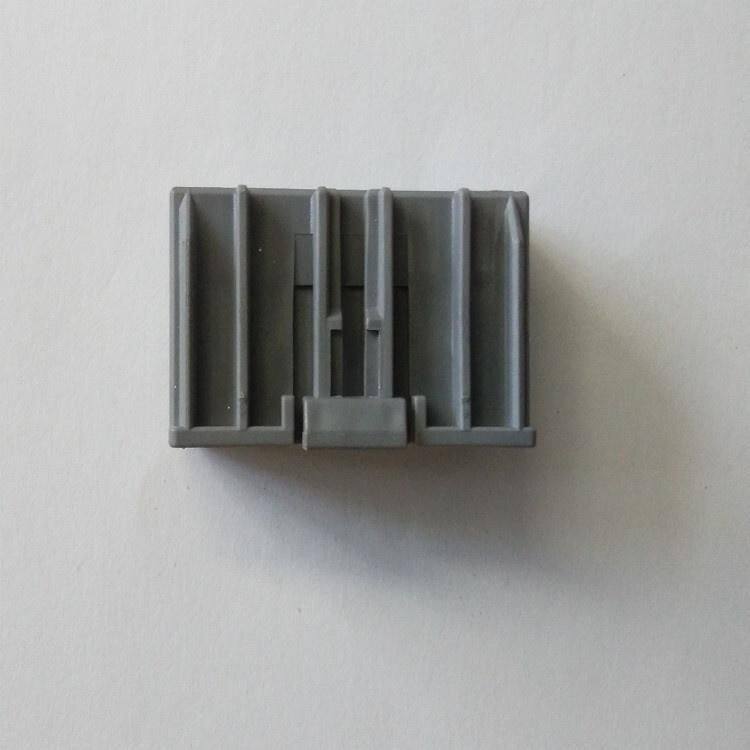

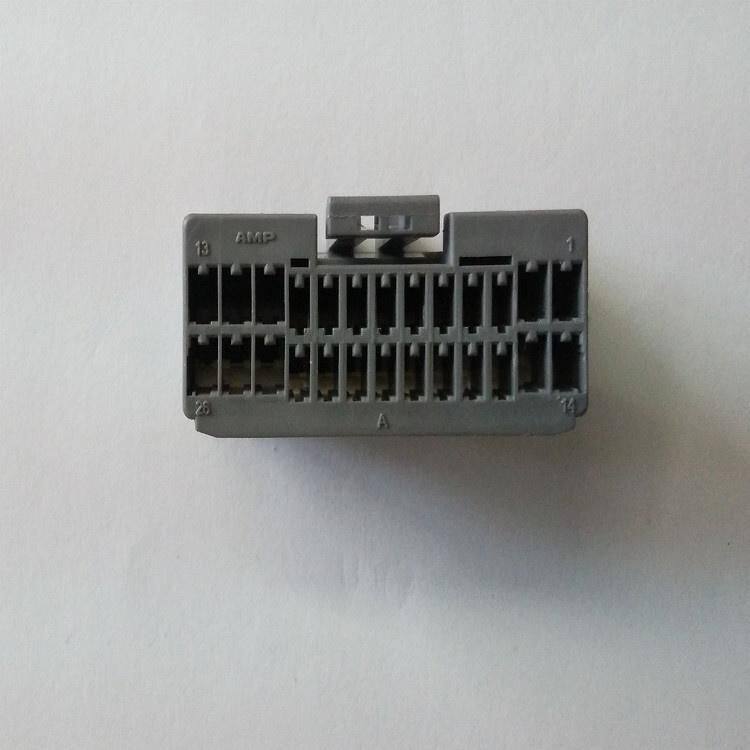

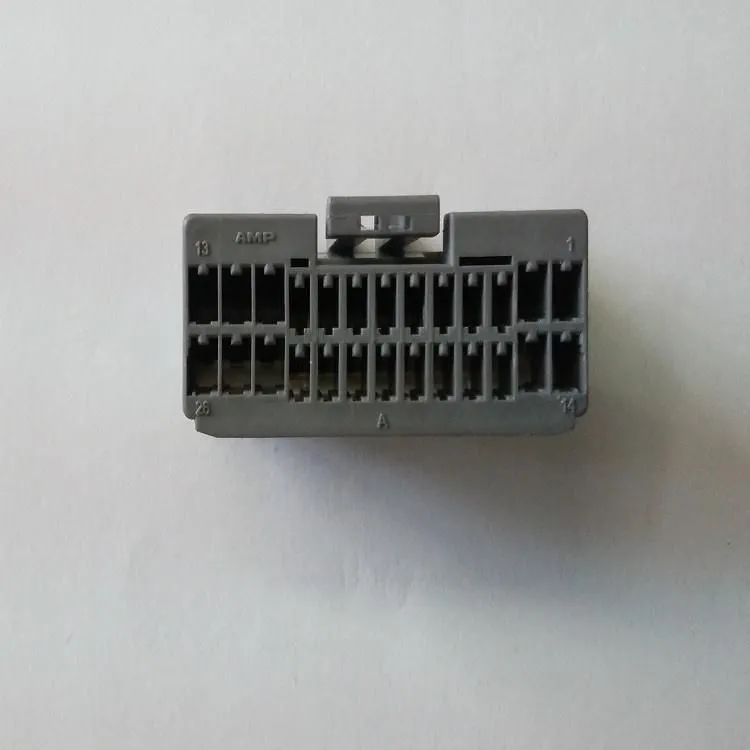

Round Connector RC30601: A Reliable Solution for Automotive WiringIntroduction
In the automotive industry, reliable electrical connections are crucial for the proper functioning of various systems. The Round Connector RC30601 emerges as a top - notch product designed to meet the demanding requirements of automotive applications. This connector offers a range of features that make it an ideal choice for automotive wiring needs.
Key Features
IP Rating Options
One of the most significant features of the Round Connector RC30601 is the availability of two different IP ratings: IP54 and IP67. The IP54 rating provides protection against dust ingress to a degree that is sufficient to prevent harmful deposits, and it also offers protection against splashing water from any direction. This makes it suitable for automotive environments where there is a moderate level of dust and occasional water exposure.
On the other hand, the IP67 rating takes protection to the next level. It offers complete protection against dust and can withstand temporary immersion in water up to a depth of 1 meter for 30 minutes. This is extremely useful in automotive applications where the connector may be exposed to harsh weather conditions, such as heavy rain or submersion in puddles.
Compatibility with Automotive Wires
The Round Connector RC30601 is specifically designed to be compatible with automotive wires ranging from 0.5 - 1.0mm². This wide compatibility range allows it to be used in a variety of automotive electrical systems. Whether it is for power transmission, signal transfer, or control circuits, this connector can handle the wiring requirements effectively. The proper fit with these wire sizes ensures a secure and stable electrical connection, reducing the risk of loose connections, short - circuits, and electrical failures.
Durable Construction
The connector is built with high - quality materials that ensure its durability in the automotive environment. The housing is made of a robust plastic material that can withstand mechanical stress, vibrations, and temperature variations. These factors are common in automotive applications, where vehicles are constantly in motion and are exposed to different environmental conditions. The internal contacts are made of high - conductivity metals, which ensure low resistance and efficient electrical transmission. This not only improves the performance of the electrical system but also extends the lifespan of the connector.
Easy Installation
The Round Connector RC30601 is designed for easy installation. It features a simple and intuitive design that allows for quick and hassle - free connection of wires. The connector has clear markings and a user - friendly locking mechanism, which ensures that the wires are properly inserted and secured. This reduces the installation time and labor costs, making it an attractive option for automotive manufacturers and repair shops.
Applications in the Automotive IndustryEngine Management Systems
In engine management systems, the Round Connector RC30601 can be used to connect sensors, actuators, and control units. These components are critical for the proper operation of the engine, and a reliable electrical connection is essential. The connector's IP rating options and compatibility with automotive wires make it suitable for use in the engine compartment, where it may be exposed to high temperatures, oil, and vibration.
Lighting Systems
Automotive lighting systems, including headlights, taillights, and interior lights, require stable electrical connections. The Round Connector RC30601 can be used to connect the lighting fixtures to the power source and control circuits. Its durability and easy installation make it a great choice for ensuring that the lighting systems function properly at all times.
Safety Systems
Safety systems such as airbags, anti - lock braking systems (ABS), and electronic stability control (ESC) rely on accurate electrical signals. The Round Connector RC30601 can be used to connect the various sensors and control modules in these safety systems. The high - quality construction and reliable electrical connection provided by the connector contribute to the overall safety and performance of the vehicle.
Quality Assurance
The Round Connector RC30601 is manufactured by Yueqing Ruichen electronic Co., LTD, a company with a strong reputation for producing high - quality electronic components. The company adheres to strict quality control standards throughout the manufacturing process. Each connector undergoes a series of tests, including electrical performance tests, mechanical stress tests, and environmental tests, to ensure that it meets the highest quality requirements. This commitment to quality gives customers the confidence that they are getting a reliable and long - lasting product.
In conclusion, the Round Connector RC30601 is a versatile and reliable product that offers a range of features suitable for various automotive applications. Its IP rating options, compatibility with automotive wires, durable construction, easy installation, and wide range of applications make it an excellent choice for automotive manufacturers, repair shops, and enthusiasts alike.
