Slocable CN40 CM Wire Connector and Panel Connector for PV Combiner Box
- 800000 Pair / Pairs per Month
- shenzhen
- T/T Credit Card
- PV system solar connector waterproof photovoltaic connectors
- CN40 Solar Panel Connector Cable Plug for Inverter
- IP 68 waterproof solar connector dc 1000v for PV system
- Slocable Waterproof Fireproof IP68 Photovoltaic Coupler PV Connector Solar
- Slocable Photovoltaic Energy Power System 12AWG Cable Connection CN40
- Slocable Tinned Copper Bar Terminal 50AMP 40AMP 30AMP CN40 Connector Solar PV Plug
Product Details
Brand Name: | Slocable | Place of Origin: | Guangdong, China | Model Number: | CN40-CM solar Connector |
Type: | MMCX |
Product Description

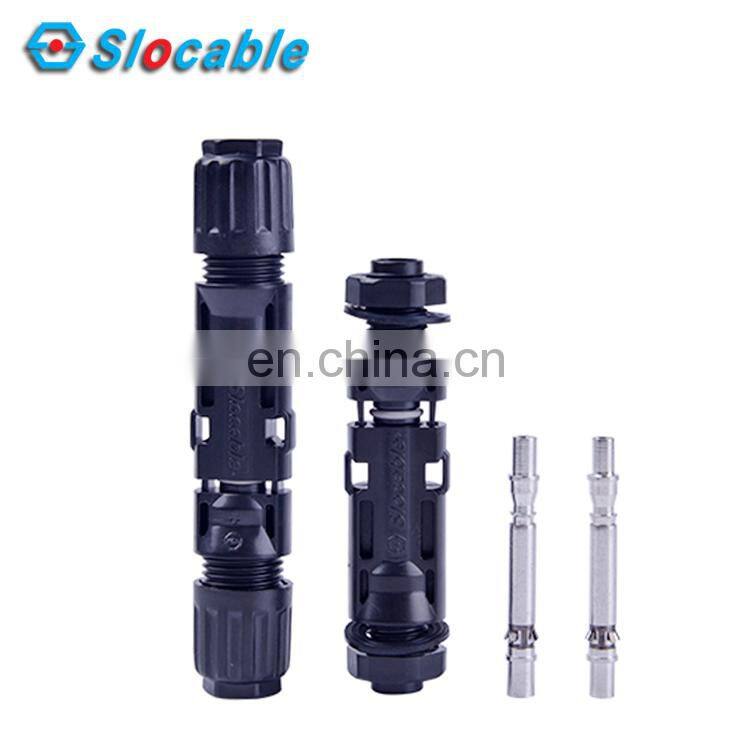

Slocable CN40 CM Wire Connector and Panel Connector for PV Combiner Box
Model NO. CN40-CM (CN40-CMMM&CN40-CFPM)
CE Approved
Item Availability:IN STOCK
Detail Information and Advantages of DC Connector
-
- Simple on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Accommodates PV cables with different insulation diameters
- High current carrying capacity
- TUV and CE approval
Technical Data of DC Waterproof Connector
Order NO. | (Part P/N) | Cable Spec. | ||
Connector | Terminal | Conductor Size | Cable OD | |
CN40-CMMM-14 | CN40-CMMM-H | CN40-CM-T14 (2.5mm2) | AWG 14(2.5mm2) | OD4.5-8.5mm |
CN40-CMMM-12 | CN40-CM-T12 (4.0mm2) | AWG 12(4.0mm2) | ||
CN40-CMMM-10 | CN40-CM-T10 (6.0mm2) | AWG 10(6.0mm2) | ||
CN40-CMMM-8 | CN40-CM-T8 (10.0mm2) | AWG 8(10.0mm2) |
Order NO. | (Part P/N) | Cable Spec. | ||
Connector | Terminal | Conductor Size | Cable OD | |
CN40-CFPM-14 | CN40-CFPM-H | CN40-CF-T14(2.5mm2) | AWG 14(2.5mm2) | OD4.5-8.5mm |
CN40-CFPM-12 | CN40-CF-T12(4.0mm2) | AWG 12(4.0mm2) | ||
CN40-CFPM-10 | CN40-CF-T10(6.0mm2) | AWG 10(6.0mm2) | ||
CN40-CFPM-8 | CN40-CF-T8(10.0mm2) | AWG 8(10.0mm2) |
Our solar connector can meet the higher standard 1500V, welcome to inquiry
Order Number | Conductor Size | Panel Cut Size |
CN40-PMMM-14 CN40-PFPM-14 | AWG 14(2.5mm2) | φ12.0mm ~ φ12.5mm |
CN40-PMMM-12 CN40-PFPM-12 | AWG 12(4.0mm2) | |
CN40-PMMM-10 CN40-PFPM-10 | AWG 10(6.0mm2) |
Technical Data of DC Waterproof Connector | |||
Rated Current | 50A | Degree of Protection | IP2*/IP68 |
Rated Voltage | 1500V/1000V DC | Flame Class | UL94-V0 |
Test Voltage | 8000V (50Hz,1min) | Safety Class | II |
Overvoltage Category | CATIII | Suitable Cable | OD 4.5-8.5mm (2.5-10.0mm²) |
Contact Resistance | <0.5mΩ | Connecting System | Crimp Connection |
Insertion Force / Withdrawal Force | ≤50N/≥50N | Temperature Range | -40℃ ~ +85℃ |
Contact Material | Copper, Tin Plated | Insulation Material | PPO |
Pictures of DC Waterproof Connector
Click the following pictures to get more Slocbale products:
Shipment of DC Waterproof Connector
1. We ship to worldwide;
3. Item shipped from China mainland using airmail by EMS, UPS, DHL, Fedex, TNT or Hong kong Post Office, reach most of the countries within 4 to 10 business days;
4.Delivery time: 3-20 working days on payment received (except holiday), most we have some stock to support for emergency;
5. After we ship the item, we will email you the shipping information, as well as the tracking number;
6.If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.
|
