Waterproof IP68 50A High Current TUV Approved Solar DC Connector for PV Energy System
US$ 0.73 - 0.78
/ Pair
20 Pairs(Min. Order)
- T/T Credit Card
You May Like
-
Slocable New IP68 Solar Panel Cable Connectors 2.5mm2 4mm2 6mm2 Inverter CN40
-
Slocable 2.5mm2 4sqmm 6sqmm 10mm2 PPO Insulation Pure Copper Solar Power Connector
-
1000/ 1500V IP68 Open Terminal Solar Panel Junction Box Connectors
-
Slocable IP68 50A Terminal Connector Pin for Junction Box Connector in Solar System
-
Slocable TUV CE Approved 50A 40A 30A CN40 Connector IP68 IP67 for Solar Cable
-
Slocable High Quality CN40 Waterproof DC Solar Connectors Made in China
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CN40-CM Solar DC Connector | Type | MMCX | |
Product Description

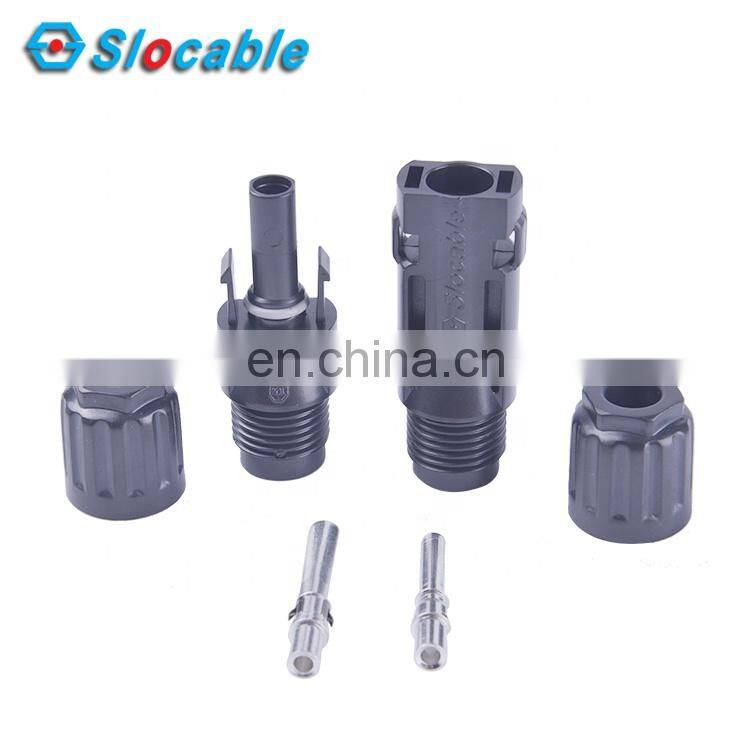

Waterproof IP68 50A High Current TUV approved Solar DC Connector for PV Energy System
Detail Information and Advantages of Solar DC Connector
-
- Simple on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Accomodates PV cables with different insulation diameters
- High current carrying capacity
- TUV and CE certificates
Technical Data of Solar DC Connector
| Technical Data of Solar DC Connector | |||
| Rated Current | 40A 50A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1000VDC 1500V DC | Flame Class | UL94-V0 |
| Test Voltage | 8000V (50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable |
OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <5.0mΩ | Connecting System | Crimp Connection |
|
Insertion Force / Withdrawal Force |
≤50N/≥50N | Temperature Range | -40℃ ~ +85℃ |
| Contact Material | Copper, Tin Plated | Insulation Material | PPO |
Why choose us Slocable? Find answers below:

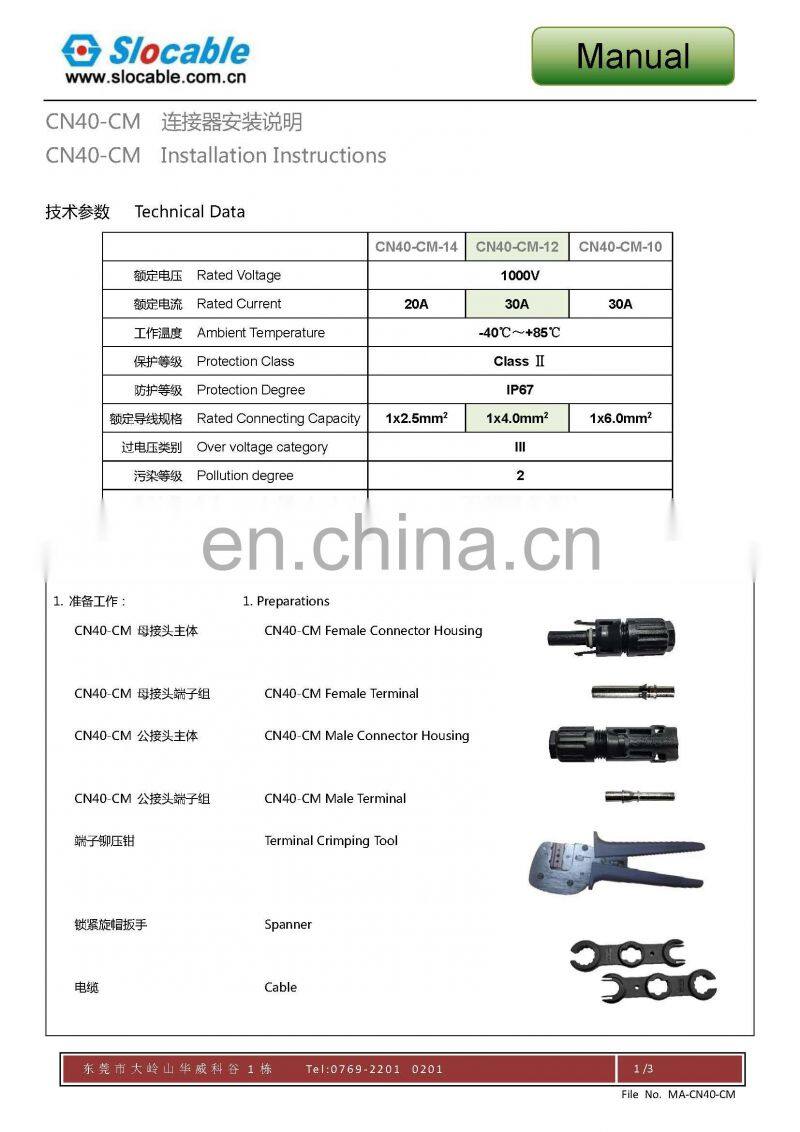

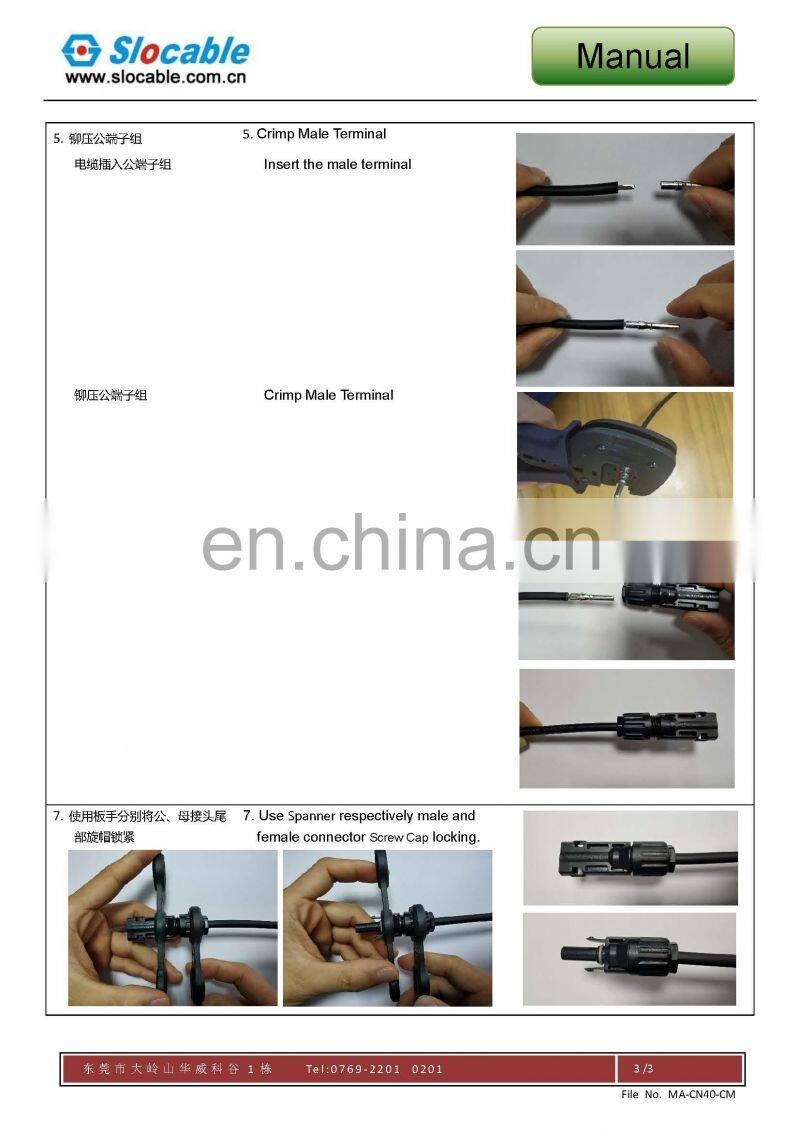

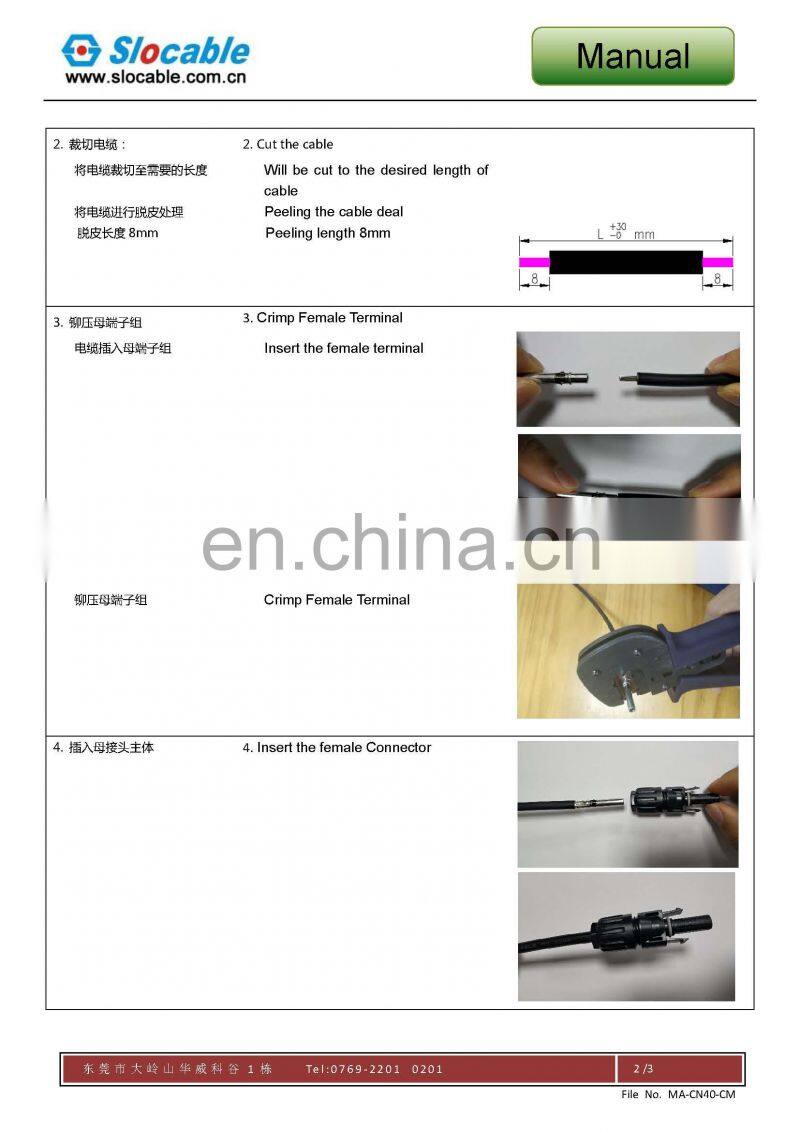

Installation Instructions of Solar Connector
Slocable certificates
Slocbale factory
FAQ
Contact Us
