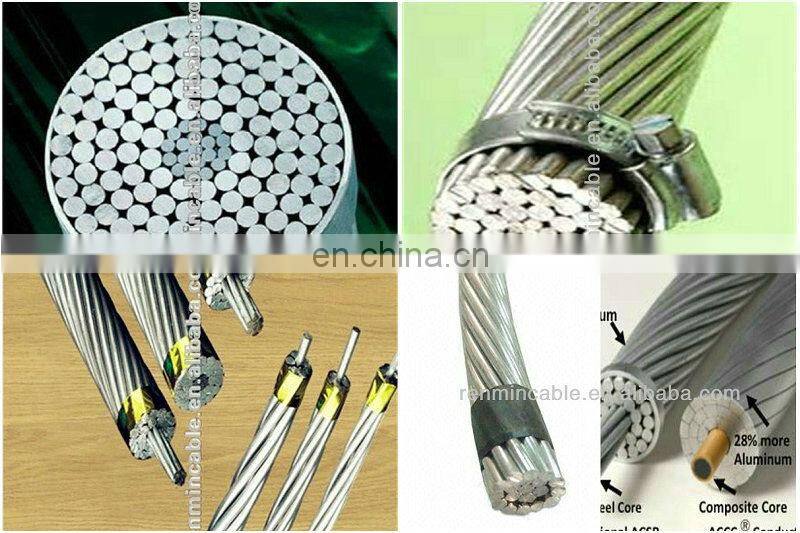

AAAC aluminium alloy conductor BS EN50183

FOB Price

USD $0.1 - $99.9 / Ton

1 Ton(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Standard: BS EN50182,ASTM B398, ASTM B399, BS 3242 DIN 48201, CSA C49, NFC 34-125

2.Specification: AAAC are composed by bare concentric-lay-stranded aluminum alloy wires.

3. Application: AAAC are used in overhead electric power transmission and distribution lines.

4.AAAC Construction and Specification for your reference

Nominal Cross-sectional Area (mm²)	Numbers/Diameter (mm)	Calculated Cross-sectional Area (mm²)	Overall Diameter (mm)	Max. D.C Resistance (Ω/km)	CalculatedBreaking Load (N)	Calculated Weight (kg/km)	Min. Delivery Length (m)	Current (A)
16	7/1.70	15.89	5.10	1.802	2840	43.5	4000	111
25	7/2.15	25.41	6.45	1.127	4355	69.6	3000	147
35	7/2.50	34.36	7.50	0.8382	5760	94.1	2000	180
50	7/3.00	49.48	9.00	0.5786	7930	135.5	1500	227
70	7/3.60	71.25	10.80	0.4018	10950	195.1	1250	284
95	7/4.16	95.14	12.48	0.3009	14450	260.5	1250	338
120	19/2.85	121.21	14.25	0.2373	19420	333.5	1250	390
150	19/3.15	148.07	15.75	0.1943	23310	407.4	1250	454
185	19/3.50	182.80	17.50	0.1574	28440	503.0	1000	518
210	19/3.75	209.85	18.75	0.1371	32260	577.4	1000	575
240	19/4.00	238.76	20.00	0.1205	36260	656.9	1000	610
300	37/3.20	297.83	22.40	0.09689	46850	820.4	1000	707
400	37/3.70	397.83	25.90	0.07247	61150	1097	1000	851
500	37/4.16	502.90	29.12	0.05733	76370	1387	1000	982
630	61/3.63	631.30	32.67	0.04577	91940	1744	800	1140
800	61/4.10	805.36	36.90	0.03588	115900	2255	800	1340
