1.5mm 2 Core Copper Twisted Cable PVC Insulated Electrical Wire Cable

FOB Price

US$ 0.7 - 1.77 / Meter

100 Meters(Min. Order)

Port Qingdao Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMjT	Place of Origin	Henan, China
Model Number	wire and cable	Type	Insulated
Insulation Material	PVC
Conductor Material	Copper	Conductor Type	Stranded

Product Description

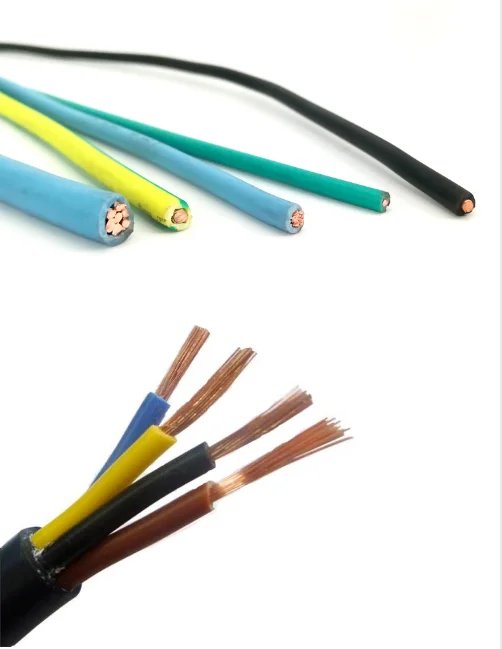

0.5mm 0.75mm 1mm 1.5mm copper conductor PVC insulation electrical copper wire and cable

The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V. The core can be divided into four types: hard, soft, mobile and extra soft. There are four types of cores: single core, two core, three core and four core.

Product Construction:

1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service performance of copper wire
1.Rated voltage: 300/300V ; 300/500V ;450/750V
2.Long-term working temperature: not be higher than 70°C
3.When laying the cable, the ambient temperature should not lower than 0°C
4.Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D ascable overall diameter>25mm.

Model	Name	Usage
BV(BLV)	copper (AL) core PVC insulated cable (wire)	Suitable for all kinds of AC and DC electrical installations, electrical instruments, instruments, telecommunications equipment, power and lighting lines for fixed laying
BVR	copper core PVC insulated flexible cable (wire)
BVV(BLVV)	copper (AL) core PVC insulated PVC sheathed round cable (wire)
BVVB(BLVVB)	copper (AL) core PVC insulated PVC sheathed flat cable (wire)
BV-105	copper core heat-resistant 105 degree PVC insulated wire
BV-ZR	copper core flame retardant PVC insulated wire	/
BVR-ZR	copper core flame retardant PVC insulated flexible wire	/
BVV-ZR-105	copper core flame retardant PVC insulated PVC sheathed round cable	/
BVVB-ZR	copper core flame retardant PVC insulated PVC sheathed flat cable	/
BV-ZR-105	copper core heat resistant 105 ℃ flame retardant PVC insulated wire	/
BVR-ZR-105	copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable	/
BVV-ZR-105	copper core heat-resistant 105 ℃ flame-retardant PVC sheathed round cable	/
AV-ZR-105	copper core heat-resistant 105 ℃ flame retardant PVC insulated installation wire	/
AVR-ZR-105	copper core heat-resistant 105 ℃ flame retardant PVC insulated installation flexible wire	Cords for internal use in instruments, meters, etc.
AV-ZR	copper core flame retardant PVC insulated installation (flexible) wire	hard-wired for electrical, instrumentation, electronic equipment, etc.
RV	Copper core PVC insulated flexible wire	Suitable for connection of various AC and DC electrical appliances, electrical instruments, household appliances, small power tools, power and lighting devices
RVB (RVVB)	copper core PVC insulated flat connection flexible wire
RVS	copper core PVC insulated twisted connection flexible wire
Rv-105	copper core heat-resistant 105 degree PVC insulated connection flexible wire
RVV	copper core PVC insulated PVC sheathed flat connection flexible cable (wire)	Household appliances, small electric tools, instruments and power lighting
RVVP	Copper core PVC insulated and shielded PVC sheathed flexible cable, voltage 300V / 300V, 2-24 core,	instrument, instrument, intercom, monitoring, control installation
AVVR	PVC Sheath	Installation flexible cable

Part Production Range of XLPE insulated power cable

Model	Voltage level (v)	Cross-sectional area (mm2)	Number / diameter (mm)	Outer diameter (mm)	weight (kg/km)	20 ℃ conductor resistance ≤ (Ω / km)
BV	300/ 500V	0.5	1/0. 80	2.4	8.5	36
BV	300/ 500V	0.75 (A)	1/0.97	2.6	11.1	24.5
BV	300/ 500V	0.75(B)	7/0.37	2.8	12	24. 5
BV	300/ 500T	1.0(A)	1/1.13	2.8	13.9	18.1
BV	300/ 500V	1.0(B)	7/0.43	3	15	18.1
BV	450/ 750V	1.5(A)	1/1.38	3.3	20. 3	12. 1
BV	450/ 750V	1.5(B)	7/0. 52	3.5	21.6	12.1
BV	450/ 750V	2.5 (A)	1/1.78	3.9	31.6	7.41
BV	450/750V	2.5(B)	7/0. 68	4.2	34. 8	7.41
BV	450/ 750V	4(A)	1/2.25	4.4	47.1	4.61
BV	450/ 750T	4(B)	7/0.85	4.8	50. 3	4.61
BV	450/ 750V	6(A)	1/2.76	4.9	67.1	3.08
BV	450/ 750T	6(B)	7/1. 04.	5.4	71.2	3.08
BV	450/ 750V	10	7/1.35	7	119	1.83
BV	450/ 750V	16	7/1.70	8	179	1.15
BV	450/ 750V	25	7/2. 14	10	281	0.727
BV	450/750V	35	7/2. 52	11.5	381	0.524
BV	450/ 750V	50	19/1.78	13. 0	521	0.387
BV	450/ 750V	70	19/2. 14	15	734	0.268
BV	450/ 750V	95	19/2.52	17.5	962	0.193
BV	450/ 750V	120	37/2. 03	19	1180	0.153
BV	450/ 750V	150	37/2.25	21	1470	0.124
BV	450/ 750V	185	37/2. 52	23.5	1810	0.0991
BVR	450/750V	2.5	19/0.41	4.2	34.7	7.41
BVR	450/ 750V	4	19/0. 52	4.8	51.4	4.61
BVR	450/750V	6	19/0.64	5.6	73.6	3.08
BVR	450/ 750V	10	49/0.52	7.6	129	1.83
BVR	450/ 750V	16	49/0.64	8.8	186	1.15
EVR	450/ 750V	25	98/0. 58	11	306	0.727
BVR	450/ 750V	35	133/0. 8	12.5	403	0.524
BVR	450/ 750V	50	133/0. 68	14.5	553	0.387
BVR	450/ 750V	70	189/0.68	16.5	764	0.268

Nominal sectional area mm2	Conductor No/Dia. Mm	Nominal Insulated thick mm	Max overall Dia. Mm	Condcutor Resistance at 20			Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. Mm	Nominal Insulated thick mm	Max overall Dia. Mm				Min insulated resistance at 70MΩ/km		Cu	Al	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.01	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.01	30.8	15
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21
6	1/2.76	0.8	4.9	3.08	4.91	0.007	65	29
10	7/1.35	1	7	1.83	3.08	0.0065	110	52
16	7/1.70	1	8	1.15	1.91	0.005	170	70
25	7/2.14	1.2	10	0.727	1.2	0.005	270	110
35	7/2.52	1.2	11.5	0.524	0.868	0.004	364	150
50	19/1.78	1.4	13	0.387	0.641	0.0045	500	200
70	19/2.14	1.4	15	0.268	0.443	0.0035	688	269
95	19/2.52	1.6	17.5	0.193	0.32	0.0035	953	360
120	37/2.03	1.6	19	0.153	0.253	0.0032	1168	449
150	37/2.25	1.8	21	0.124	0.206	0.0032	1466	551
185	37/2.52	2	32.5	0.099	0.164	0.0032	1808	668
