PVC Insulated Electrical Cable 2.5mm Building Wires
- 1000000 Kilometer / Kilometers per Month
- Qingdao
- T/T Credit Card
- IEC BS Standards 450/750V 0.75 1 1.5 2.5 mm PVC Insulated Electrical Copper Cable Wire
- 0.5mm 2.5mm 4mm flexible copper PVC insulated electric wire cable
- 450 / 750v 25mm pvc copper electrical wire 22awg wire
- 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20m supplier Single Core 0.1mm PVC Flexible Cable Electrical Wires
- 2x12 3x12 4mm2 pvc 3 wire cable thw electrical wire 12 awg cable
- silicon 4 core shields electrical wires screened wire
Product Details
Brand Name: | RMJT | Place of Origin: | Henan, China | Model Number: | copper flat wire |
Type: | Insulated | Insulation Material: | PVC | ||
Conductor Material: | Copper | Conductor Type: | Stranded |
Product Description
2-core stranded copper flat wire, pvc insulated flat bulding wire
1)Application
Copper flat wire is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
2)Standard
GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227
3)Voltages U0/U:
450/750V300/500V300/300V.(600/1000V also available)
Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
Conductor: copper stranded core
PVC insulated and sheathed
5) Model and Name
Model | Name |
BV | Copper Core PVC Insulation Wire |
BLV | Aluminum Core PVC Insulation Wire |
BVR | Copper Core PVC Insulation Flexible Wire |
BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
Flexible wire
Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km |
2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
95 | 259/0.68 | 1. | 19.5 | 0.139 | 0.0035 | 965.0 |
120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |

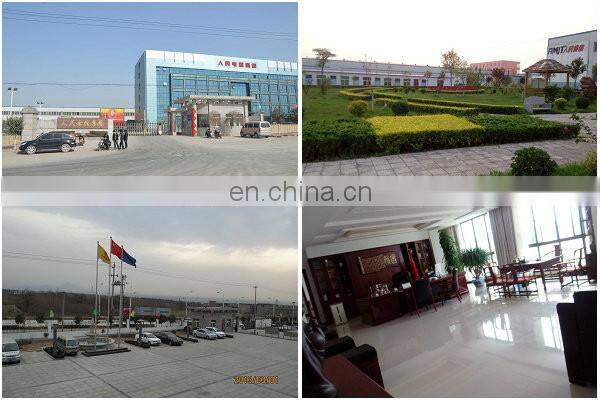

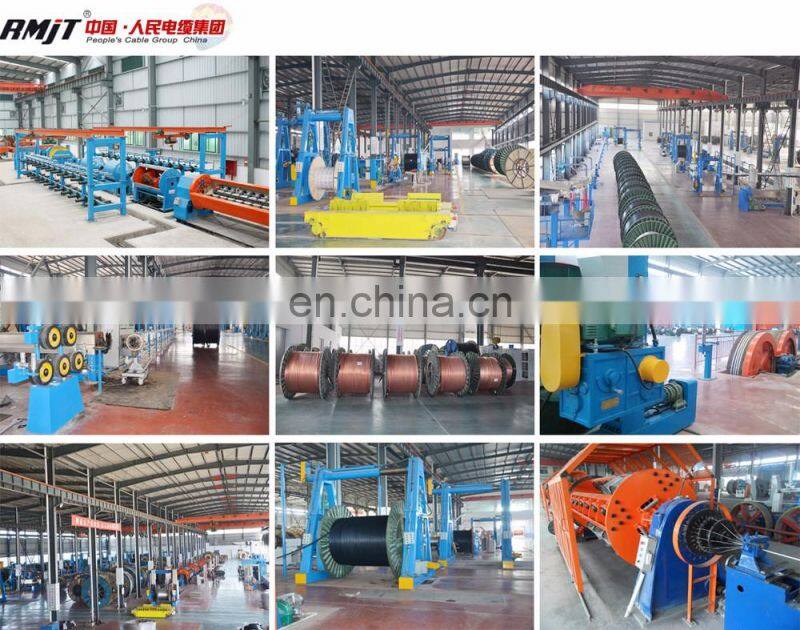

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. We have 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than more than USD 10 million , with total 630 staff members, 65 of which are professional and technical experts. Zhitian factory is mainly specialized in PVC Insulated Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable,Control cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). And Galvanized steel wire(GSW). Our products meet standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST and also supply according to customers’ unique requirements and specifications.

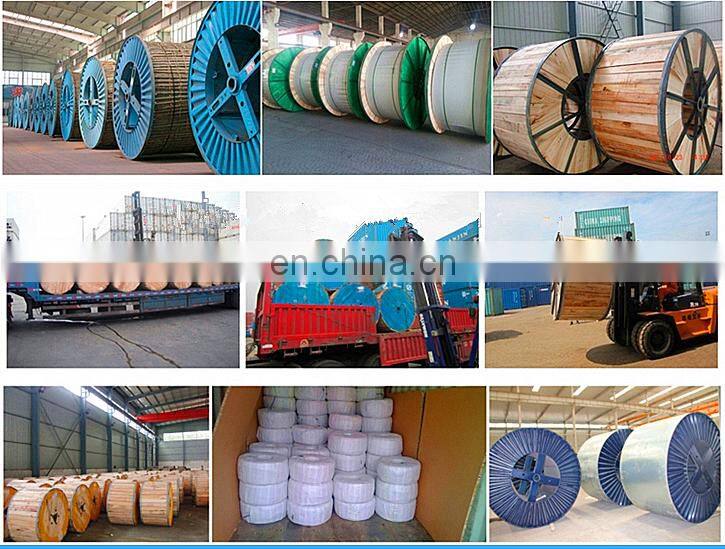

Packaged by wooden drum, wooden-steel drum, or steel drum.
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
