Home > Products > Electrical Wire/Cable(Housing Wire) > Silicon 4 Core Shields Electrical Wires Screened Wire

Silicon 4 Core Shields Electrical Wires Screened Wire

FOB Price

US$ 2.7 - 7 / Meter

100 Meters(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMjT	Place of Origin	Henan, China
Model Number	shields wires	Type	Insulated
Insulation Material	PVC
Conductor Material	Copper	Conductor Type	Stranded

Product Description

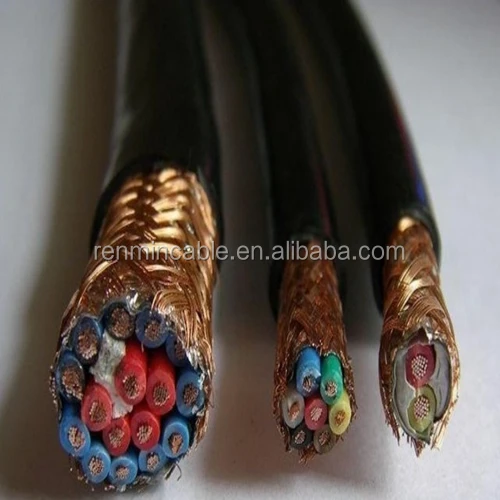

silicon 4 core shields electrical wires screened wire

RVVP, Electrical connection anti-jamming flexible cable is a multi-core flexible conductor with flexible conductor PVC insulated wire plus shielding layer and PVC sheath.

Rated voltage 300 / 300V Common core number 2-24 core

Common wire core diameters are: 0.12 square, 0.2 square, 0.3 square, 0.4 square, 0.5 square, 1.0 square, 1.5 square, etc.

RVVP CABLE Technical Parameters

1. RVVP implementation standard JB / T8734.5-2016 2. PVC insulation 3. PVC sheath 4. The conductor is multi-core annealed bare copper stranded 5. Stranded composite cable with more than two cores 6. It can be shielded by aluminum foil after cable formation 7. Bare copper wire or tinned copper wire braided shielding net 8. The rated voltage is 300 / 300V 9. Normal working temperature does not exceed 70 ℃ 10. Product CCC certification

RVVP flexible Cable Application

Suitable for communication, audio, broadcasting, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire fighting system, etc., which need anti-interference line connection, efficient and safe transmission data cable

Types	Model / Specification	Number of cores × nominal cross section（m㎡)
2 core	RVVP2×7/0.15	2×0.12
		RVVP2×12/0.15	2×0.20
		RVVP2×16/0.15	2×0.30
		RVVP2×28/0.15	2×0.50
		RVVP2×24/0.2	2×0.75
		RVVP2×32/0.2	2×1.00
		RVVP2×48/0.2	2×1.50
		RVVP2×49/0.25	2×2.50
		RVVP2×57/0.30	2×4.00

Types	Model / Specification	Number of cores × nominal cross section（m㎡)
3 core	RVVP3×7/0.15	3×0.12
		RVVP3×12/0.15	3×0.20
		RVVP3×16/0.15	3×0.30
		RVVP3×28/0.15	3×0.50
		RVVP3×24/0.2	3×0.75
		RVVP3×32/0.2	3×1.00
		RVVP3×48/0.2	3×1.50
		RVVP3×49/0.25	3×2.50
		RVVP3×57/0.30	3×4.00

Types	Model / Specification	Number of cores × nominal cross section（m㎡)
4 core	RVVP4×7/0.15	4×0.12
		RVVP4×12/0.15	4×0.20
		RVVP4×16/0.15	4×0.30
		RVVP4×28/0.15	4×0.50
		RVVP4×24/0.2	4×0.75
		RVVP4×32/0.2	4×1.00
		RVVP4×48/0.2	4×1.50
		RVVP4×49/0.25	4×2.50
		RVVP4×57/0.30	4×4.00

If you need other core numbers and sizes, please contact us to customize

Packaging and Shipping

Our Company

People's Cable Group Co., Ltd.

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

Our mainly products as follow:

1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.

FAQ

Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
