Wholesale 1mm 4mm 2.5 mm Pvc Electrical Wire Color Code

FOB Price

US$ 1.7 - 7.7 / Meter

100 Meters(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMjT	Place of Origin	Henan, China
Model Number	electric wire	Type	Insulated
Insulation Material	PVC
Conductor Material	Copper	Conductor Type	Stranded

Product Description

Product Construction

_{1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.}

_{Service Performance Of Copper Wire}

^{1. Rated voltage: 300/300V ; 300/500V ;450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.}

^{European Standard Electric Wire}

^{H07V-U , 450/750 PVC Insulated Building Wire, BS Standard}

^{H03VH-H , 300/300V PVC Insulated Flexible Parallel Wire}

^{H03VVH2-F , H05VVH2-F , PVC insulated PVC sheathed flat wire}

^{300/300V PVC Insulated Flexible Twisted Cord}

^{H05V-K , H07V-K , PVC Insulated Flexible Wire}

^{H07Z-U , 450/750 LSHF Compound Insulated Building Wire.BS Standard}

^{H05Z-K , H07Z-K , LSHF Compound Insulated Flexible WirefBS Standard}

^{Flat Twin and Earth Wire-ECC Cables, BS Standard}

Product Model

^Model	^Name	^Usage

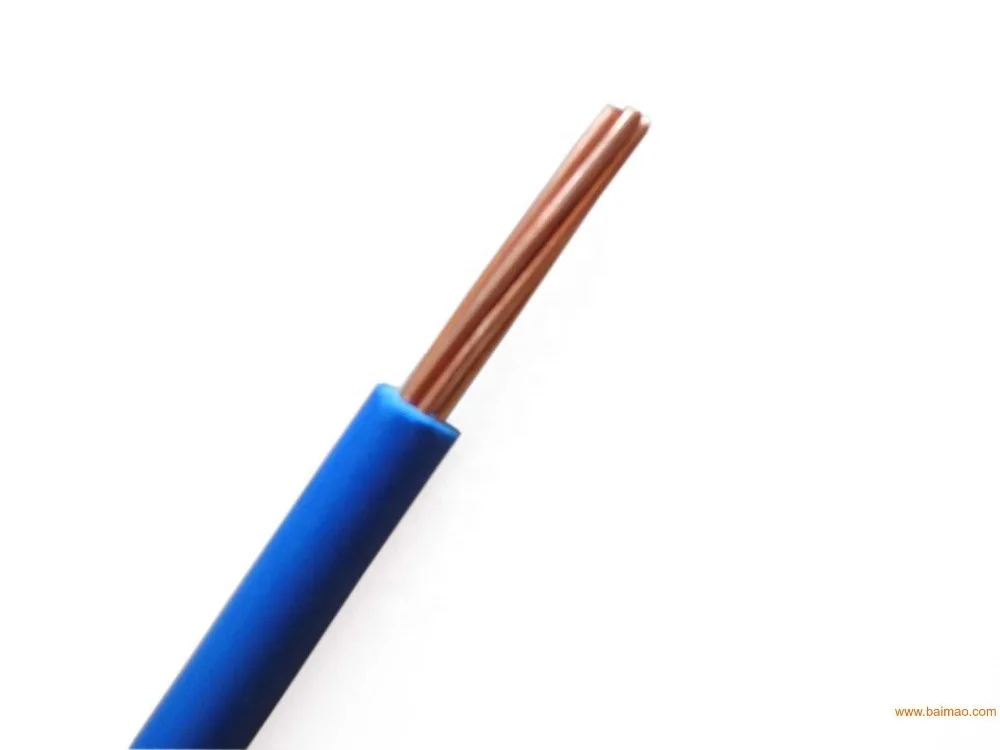

^BV(BLV)	^{copper (AL) core PVC insulated cable (wire)}	^{Suitable for all kinds of AC and DC electrical installations, electrical instruments, instruments, telecommunications equipment,} ^{power and lighting lines for fixed laying}
^BVR	^{copper core PVC insulated flexible cable (wire)}
^BVV(BLVV)	^{copper (AL) core PVC insulated PVC sheathed round cable (wire)}

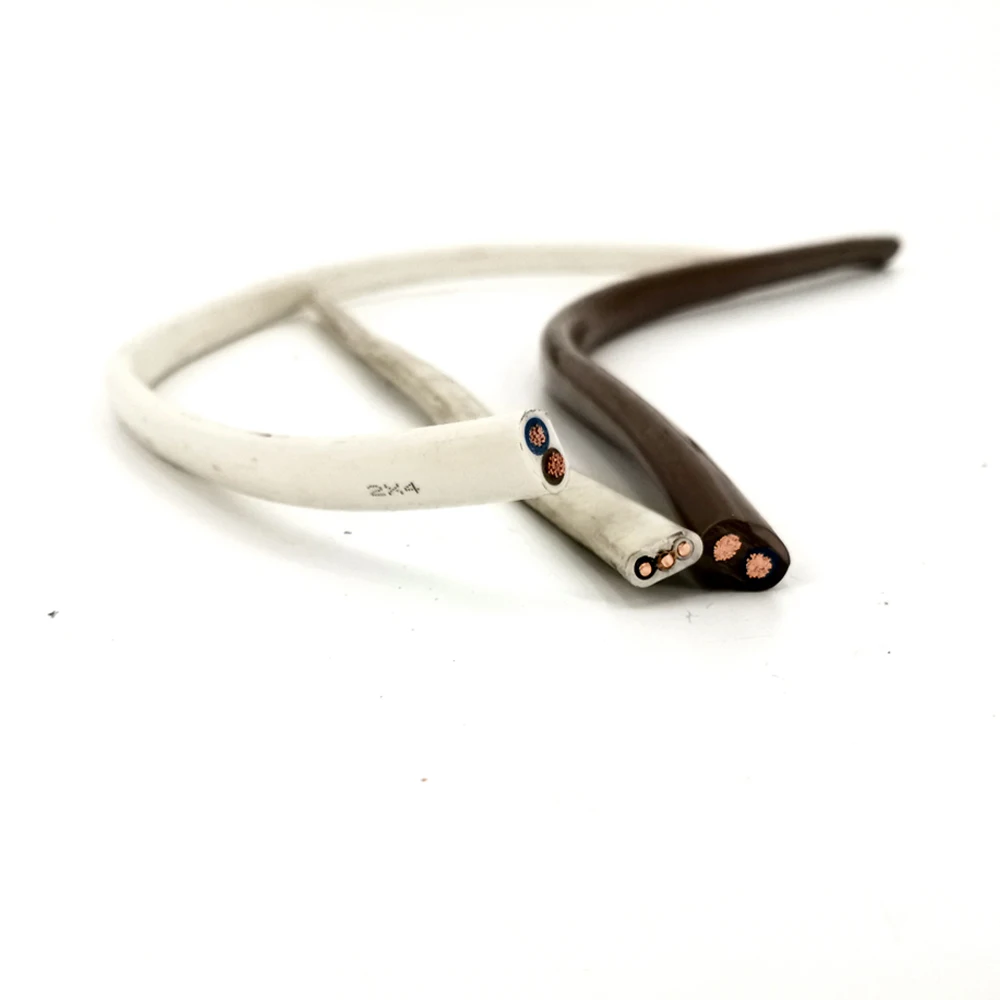

^BVVB(BLVVB)	^{copper (AL) core PVC insulated PVC sheathed flat cable (wire)}
^BV-105	^{copper core heat-resistant 105 degree PVC insulated wire}
^BV-ZR	^{copper core flame retardant PVC insulated wire}	^/
^BVR-ZR	^{copper core flame retardant PVC insulated flexible wire}	^/
^BVV-ZR-105	^{copper core flame retardant PVC insulated PVC sheathed round cable}	^/
^BVVB-ZR	^{copper core flame retardant PVC insulated PVC sheathed flat cable}	^/
^BV-ZR-105	^{copper core heat resistant 105 ℃ flame retardant PVC insulated wire}	^/
^BVR-ZR-105	^{copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable}	^/
^BVV-ZR-105	^{copper core heat-resistant 105 ℃ flame-retardant PVC sheathed round cable}	^/
^AV-ZR-105	^{copper core heat-resistant 105 ℃ flame retardant PVC insulated installation wire}	^/
^AVR-ZR-105	^{copper core heat-resistant 105 ℃ flame retardant PVC insulated installation flexible wire}	^{Cords for internal use in instruments, meters, etc.}
^AV-ZR	^{copper core flame retardant PVC insulated installation (flexible) wire}	^{hard-wired for electrical, instrumentation, electronic equipment, etc.}
^RV	^{Copper core PVC insulated flexible wire}	^{Suitable for connection of various AC and DC electrical appliances, electrical instruments, household appliances, small power} ^{tools, power and lighting devices}
^{RVB (RVVB)}	^{copper core PVC insulated flat connection flexible wire}
^RVS	^{copper core PVC insulated twisted connection flexible wire}
^Rv-105	^{copper core heat-resistant 105 degree PVC insulated connection flexible wire}

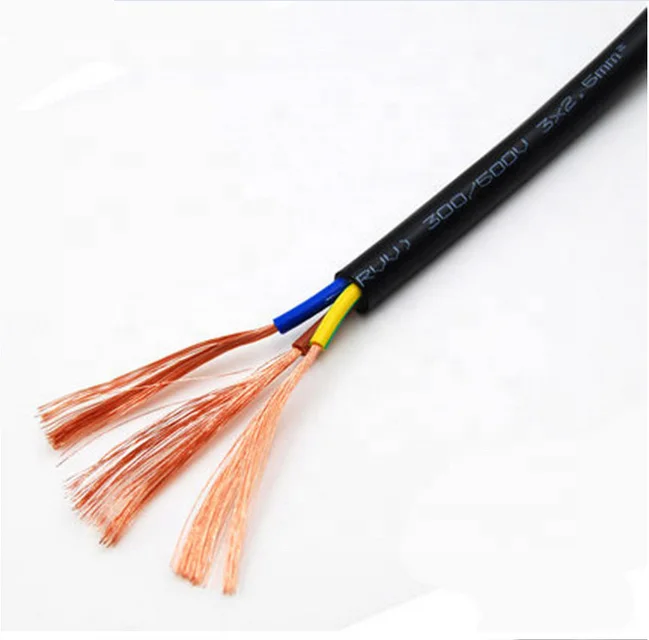

^RVV	^{copper core PVC insulated PVC sheathed flat connection flexible cable (wire)}	^{Household appliances, small electric tools, instruments and power lighting}

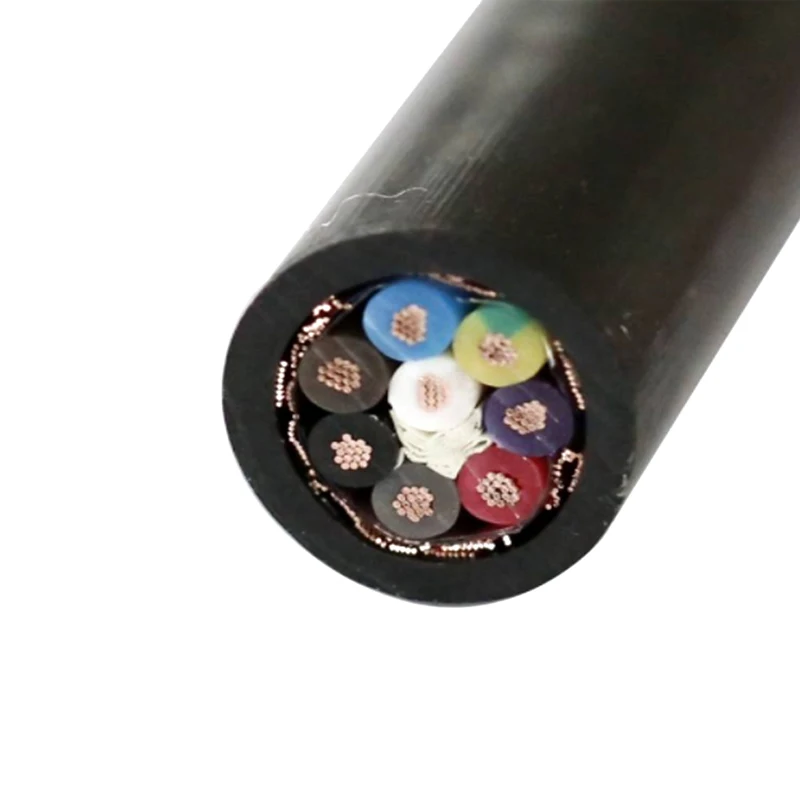

^RVVP	^{Copper core PVC insulated and shielded PVC sheathed flexible cable, voltage 300V / 300V, 2-24 core,}	^{instrument, instrument, intercom, monitoring, control installation}
^AVVR	^{PVC Sheath}	^{Installation flexible cable}

_{Part Production Range of Insulated Electrical Wire}

_Model	_{Voltage level(v)}	_{Cross-sectional area (mm2)}	_{Number / diameter (mm)}	_{Outer diameter (mm)}	_{weight (kg/km)}	_{20 ℃ conductor resistance≤ (Ω / km)}
_BV	_{300/ 500V}	_0.5	_{1/0. 80}	_2.4	_8.5	₃₆
_BV	_{300/ 500V}	_{0.75 (A)}	_1/0.97	_2.6	_11.1	_24.5
_BV	_{300/ 500V}	_0.75(B)	_7/0.37	_2.8	₁₂	_{24. 5}
_BV	_{300/ 500T}	_1.0(A)	_1/1.13	_2.8	_13.9	_18.1
_BV	_{300/ 500V}	_1.0(B)	_7/0.43	₃	₁₅	_18.1
_BV	_{450/ 750V}	_1.5(A)	_1/1.38	_3.3	_{20. 3}	_{12. 1}
_BV	_{450/ 750V}	_1.5(B)	_{7/0. 52}	_3.5	_21.6	_12.1
_BV	_{450/ 750V}	_{2.5 (A)}	_1/1.78	_3.9	_31.6	_7.41
_BV	_450/750V	_2.5(B)	_{7/0. 68}	_4.2	_{34. 8}	_7.41
_BV	_{450/ 750V}	_4(A)	_1/2.25	_4.4	_47.1	_4.61
_BV	_{450/ 750T}	_4(B)	_7/0.85	_4.8	_{50. 3}	_4.61
_BV	_{450/ 750V}	_6(A)	_1/2.76	_4.9	_67.1	_3.08
_BV	_{450/ 750T}	_6(B)	_{7/1. 04.}	_5.4	_71.2	_3.08
_BV	_{450/ 750V}	₁₀	_7/1.35	₇	₁₁₉	_1.83
_BV	_{450/ 750V}	₁₆	_7/1.70	₈	₁₇₉	_1.15
_BV	_{450/ 750V}	₂₅	_{7/2. 14}	₁₀	₂₈₁	_0.727
_BV	_450/750V	₃₅	_{7/2. 52}	_11.5	₃₈₁	_0.524
_BV	_{450/ 750V}	₅₀	_19/1.78	_{13. 0}	₅₂₁	_0.387
_BV	_{450/ 750V}	₇₀	_{19/2. 14}	₁₅	₇₃₄	_0.268
_BV	_{450/ 750V}	₉₅	_19/2.52	_17.5	₉₆₂	_0.193
_BV	_{450/ 750V}	₁₂₀	_{37/2. 03}	₁₉	₁₁₈₀	_0.153
_BV	_{450/ 750V}	₁₅₀	_37/2.25	₂₁	₁₄₇₀	_0.124
_BV	_{450/ 750V}	₁₈₅	_{37/2. 52}	_23.5	₁₈₁₀	_0.0991
_BVR	_450/750V	_2.5	_19/0.41	_4.2	_34.7	_7.41
_BVR	_{450/ 750V}	₄	_{19/0. 52}	_4.8	_51.4	_4.61
_BVR	_450/750V	₆	_19/0.64	_5.6	_73.6	_3.08
_BVR	_{450/ 750V}	₁₀	_49/0.52	_7.6	₁₂₉	_1.83
_BVR	_{450/ 750V}	₁₆	_49/0.64	_8.8	₁₈₆	_1.15
_EVR	_{450/ 750V}	₂₅	_{98/0. 58}	₁₁	₃₀₆	_0.727
_BVR	_{450/ 750V}	₃₅	_{133/0. 8}	_12.5	₄₀₃	_0.524
_BVR	_{450/ 750V}	₅₀	_{133/0. 68}	_14.5	₅₅₃	_0.387
_BVR	_{450/ 750V}	₇₀	_189/0.68	_16.5	₇₆₄	_0.268

^{Nominal sectional area mm2}

^{Conductor No/Dia. Mm}

^{Nominal Insulated thick mm}

^{Max overall Dia. Mm}

^{Condcutor Resistance at 20}

^{Min insulated resistance at 70MΩ/km}

^Weight

^Kg/km

^Cu

^Al

^Cu

^Al

^1.5

^1/1.38

^0.7

^3.3

^12.1

^0.011

^19.2

^1.5

^7/0.52

^0.7

^3.5

^12.1

^0.01

^20.6

^2.5

^1/1.78

^0.8

^3.9

^7.41

^11.8

^0.01

^30.8

¹⁵

⁴

^1/2.25

^0.8

^4.4

^4.61

^7.39

^0.0085

^45.5

²¹

⁶

^1/2.76

^0.8

^4.9

^3.08

^4.91

^0.007

⁶⁵

²⁹

¹⁰

^7/1.35

⁷

^1.83

^3.08

^0.0065

¹¹⁰

⁵²

¹⁶

^7/1.70

⁸

^1.15

^1.91

^0.005

¹⁷⁰

⁷⁰

²⁵

^7/2.14

^1.2

¹⁰

^0.727

^1.2

^0.005

²⁷⁰

¹¹⁰

³⁵

^7/2.52

^1.2

^11.5

^0.524

^0.868

^0.004

³⁶⁴

¹⁵⁰

⁵⁰

^19/1.78

^1.4

¹³

^0.387

^0.641

^0.0045

⁵⁰⁰

²⁰⁰

⁷⁰

^19/2.14

^1.4

¹⁵

^0.268

^0.443

^0.0035

⁶⁸⁸

²⁶⁹

⁹⁵

^19/2.52

^1.6

^17.5

^0.193

^0.32

^0.0035

⁹⁵³

³⁶⁰

¹²⁰

^37/2.03

^1.6

¹⁹

^0.153

^0.253

^0.0032

¹¹⁶⁸

⁴⁴⁹

¹⁵⁰

^37/2.25

^1.8

²¹

^0.124

^0.206

^0.0032

¹⁴⁶⁶

⁵⁵¹

¹⁸⁵

^37/2.52

^32.5

^0.099

^0.164

^0.0032

¹⁸⁰⁸

⁶⁶⁸

_Notice

_{In addition, we have other models and sizes, please contact us if you need, thank you.}

^Applications

_{The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places.
They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U).
Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
The core can be divided into four types: hard, soft, mobile and extra soft.
There are four types of cores: single core, two core, three core and four core.}

Packaging and Shipping

_{People's Cable Group Co., Ltd.}

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

_{Our mainly products as follow:}

_{1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.}

FAQ

Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
