China Factory NYM 3x1.5mm2 Pvc Insulation Copper Conductor Cable Wire
US$ 0.5 - 3.5
/ Meter
100 Meters(Min. Order)
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
Hot Sale NYM 1 .5mm 2.5mm2 3 Cores PVC Insulated Copper Electrical Cable
-
Wholesale 1mm 4mm 2.5 mm Pvc Electrical Wire Color Code
-
Price RVVB BVVB H03VVH2-F 6mm Cable Building Electrical Wire
-
Price H05V-K BVR 2.5mm 1mm Copper Electrical Cable Wire Pvc Insulated Copper Cable
-
1.0mm CCA Copper Clad Aluminum Wire
-
4mm 2.5mm Thhn Pvc Electrical Wire 227 Iec 53 Rvv Cable
Product Details
| Brand Name | RMjT | Place of Origin | Henan, China | |
| Model Number | PVC Coated Wire | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description
Product Description

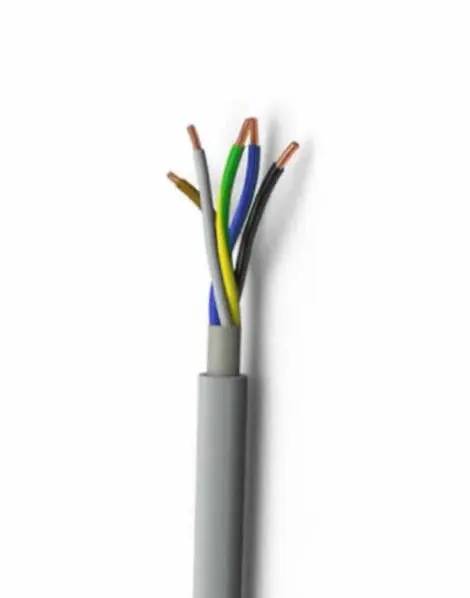

China factory NYM 3x1.5mm2 pvc insulation copper conductor cable wire
Product Structure
The wire and cable are composed of a conductor, an insulation layer, and a protective layer.
Conductor
The conductor is the conductive part of the wire and cable, which is used to transport electrical energy and is the main part of the wire and cable.
Insulation
Insulation layer is to electrically isolate the conductor from the ground and conductors of different phases from each other to ensure the transmission of electrical energy. It is an indispensable part of the wire and cable structure.
The protective layer
The function of the protective layer is to protect the wires and cables from the invasion of foreign impurities and moisture, and to prevent external power from directly damaging the power cables.
No. | Type | Description | ||
1 | 60227 IEC 01(BV) | Single core rigid conductor unsheathed cable for general purposes(H07V-U or H07V-R) | ||
2 | 60227 IEC 02(RV) | Single core flexible conductor unsheathed cable for general purposes(H07V-K) | ||
3 | 60227 IEC 05(BV) | Single core 70℃ solid conductor unsheathed cable for internal wiring(H05V-U or H05V-R) | ||
4 | 60227 IEC 06(RV) | Single core 70℃ flexible conductor unsheathed cable for internal wiring(H05V-K) | ||
5 | 60227 IEC 07(BV-90) | Single core 90℃ solid conductor unsheathed cable for internal wiring(H07V-U or H07V-R) | ||
6 | 60227 IEC 08(RV-90) | Single core 90℃ flexible conductor unsheathed cable for internal wiring(H07V-K) | ||
7 | 60227 IEC 10(BVV) | Light PVC sheathed cable(NYY or NYM) | ||
8 | 60227 IEC 42(RVB) | Flat unsheathed flexible wire | ||
9 | 60227 IEC 52(RVVB, RVV) | Light PVC sheathed flexible copper wire (H03VV-F,H03VVH2-F) | ||
10 | 60227 IEC 53(RVVB, RVV) | Common PVC sheathed flexible copper wire (H05VV-F,H05VVH2-F) | ||
11 | BV | Copper conductor PVC insulated wire(H07V-U or H07V-R) | ||
12 | BLV | Aluminum conductor PVC insulated wire | ||
13 | BVR | Copper conductor PVC insulated flexible cable(H07V-R) | ||
14 | BVV | Copper conductor PVC insulated sheathed circular cable(NYY or NYM) | ||
15 | BLVV | Aluminum conductor PVC insulated and sheathed round cable | ||
16 | BVVB | Copper conductor PVC insulated and sheathed flat cable | ||
17 | BLVVB | Aluminum conductor PVC insulated sheathed flat cable | ||
18 | NMD | Copper conductor PVC/Nylon Insulated PVC Jacked flat cable | ||
19 | RVS | Twisted copper conductor PVC insulated flexible cable for conection | ||
20 | AVP | Copper conductor PVC insulated wire with shield for installation | ||
21 | RVP | Copper conductor PVC insulated flexible wire with shield | ||
22 | RVVP | Copper conductor PVC insulated, shielded, PVC sheathed flexible cable | ||
...... | ||||




Specification for NYM electrical wire cable
Size(mm2) | Insulation thickness (mm) | Inner sheath thickness(mm) | Outer sheath thickness(mm) | Overall diameter(mm) | ||||
3x1.5 | 0.6 | 0.4 | 1.4 | 9.17 | ||||
3x2.5 | 0.7 | 0.4 | 1.4 | 10.47 | ||||
3x4 | 0.8 | 0.4 | 1.4 | 11.92 | ||||
3x6 | 0.8 | 0.4 | 1.6 | 13.42 | ||||
5x16 | 1.0 | 0.8 | 1.8 | 24.37 | ||||
5x25 | 1.2 | 1.0 | 1.8 | 29.9 | ||||
...... | ||||||||
Attention: We can provide more information than above data, if needed.The above are just some examples.
