0.6-5.0mm Thickness V Groove PCB Depanel Machine/PCB Board Separating Machine
US$ 1000 - 2500
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
You May Like
-
Pneumatic Type Pcb Depaneling Machine Pcb V Cutter With Less Stress For Aluminum And Copper Materail PCB
-
30L 400x400x900MM Wet And Dry Industrial Vacuum Cleaner For Sucking Metal Powder
-
High-Precision On-Line Automatic PCB Depaneling Router With Less Stress
-
10w Laser Cutter Sheet Metal Stencil Laser Depaneling Machine Smt Cutting Equipment
-
355nm 10W /15W High-precision CCD FPC/PCB UV Laser Cutting Machine
-
0.4mm~6mm High Accuracy Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine
Product Details
| Brand Name | YUSHUNLI | Place of Origin | China | |
| Model Number | YSV-1A |
Product Description

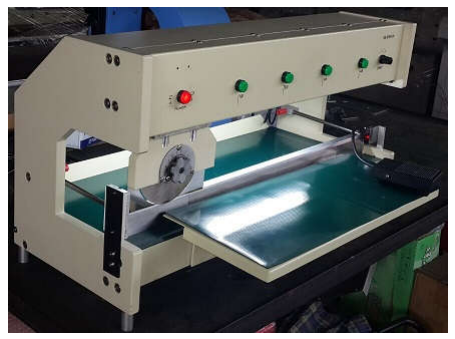

0.6-5.0mm Thickness V Groove PCB Depanel Machine/PCB Board Separating Machine
Blades Moving PCB Separator
Features
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display；
4. Separating speed is adjusted by a rotary knob；
5. Handle Intermittent scoring or cut-outs；
6. Board with projected component can be cut precisely；
7. Large stainless steel platform on both side of cutting lade prevents board wobble
and table height and angle are adjustable；
8. Clearance between circular and linear blades are adjustable to fit different groove
depth and compensates for blade wear out.
Application:
Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly,
effectively quickly. Easy to operate and causing no damdage to components on
boards. Imported high- speed steel blade with long service life, mainly applied in
circuit board industries such as led, SMT, etc.
Specs:
| Max Cutting Length | 460mm or 600mm |
| Dimension | 740*550*460mm or 880*420*320mm(L*W*H) |
| Cutting pooint | 0-100-200-300-400mm |
| Cutting Speed | 300mm/s ,500mm/s |
| Cutter point angle | 26~28° |
| Conveyor Belt (Options) | 1.5 m |
| Cutting thickness | 0.6-5.0mm |
| Minimum component distance from v-groove | 1mm |
| Voltage | 220 V or 110V, 50/60HZ, 250W |
| Max component height | 30 mm |
| Machine weight | 65kg / 85kg |
| Machine Warranty period | 1 year |
Range of application:
1.It is suitable to cut PCB
2. Printed Circuit Board
3. LED Aluminum plate/LED strip/LED light bar
4. Fiberglass panel/sheet
1.Available V-cut thickness: from 0.2mm to 2.0mm
2. Available PCB thickness: from 0.2mm to 3.2 mm
3. Maximum board length: 1300mm
Specifications:
1.For V-cut PCB, Aluminum PCB
2.PCB thickness:0.2-3.2mm
3.PCB length:0-1300mm
4.Fast speed and lowest press
5.Blade moving
