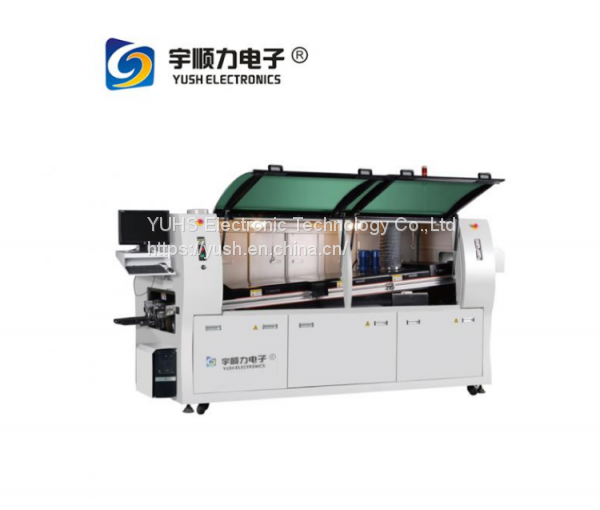

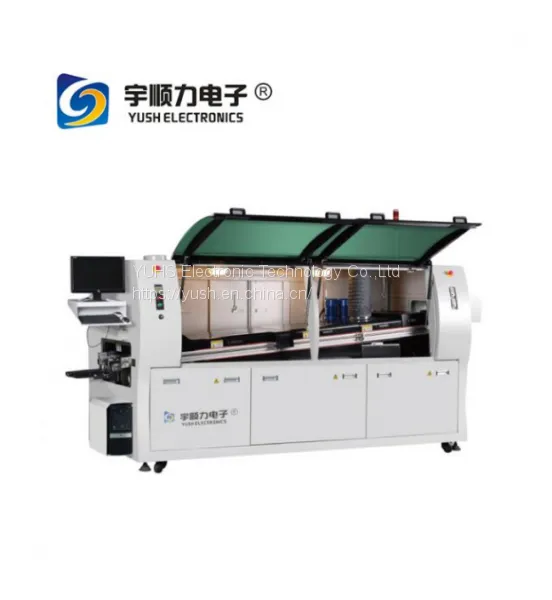

Practical Lead-free wave soldering machine for making LED light
Specifications
| Model No. | Yush N300 |
| Number of Pre-heaters | 3 |
| Pre-heater Passage | 1450mm |
| Body size | 2800(L)*1250(W)*1560(H) |
| Outside dimension | 3600(L)*1250(W)*1560(H) |
| Weight | 1000KG |
| Total/steady consumption | 19KW/5-7KW |
| Air supply | 0.5MPa |
| Preheater style | Hot air |
| Preheater consumption | 220V 6KW |
| Control method | PC +PLC/press keys/Touch screen |
| Range of temp. set-point | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder Application | Lead-free / Sn-Pb |
| Solder pot capacity | 280KG |
| Solder pot temperature | 300ºC |
| Solder pot consumption | 380V 9KW |
| Solder temp. control method | PID&SSR |
| Wave motor power | 1KW 220V |
| Solder melting | About 120mins for setting 250ºC |
| PCB width | 50-300mm |
| Conveyor speed | 0-1800mm/min |
| Conveyor direction | L→R (R→L optional) |
| Conveyor inclination | 4-7 º |
| Flux pressure/capacity | 3-5 bar/5.2L |
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

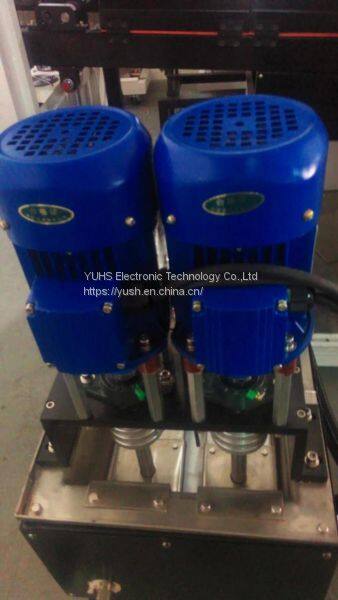

7.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
10.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
11.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

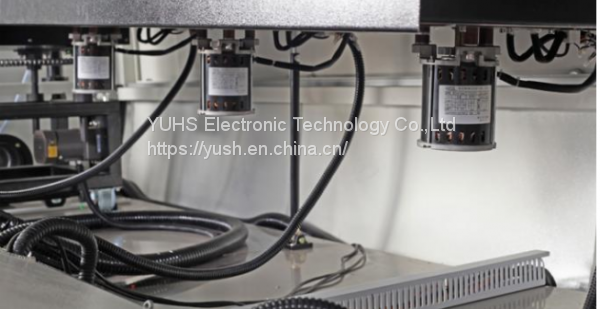

Heating motor.

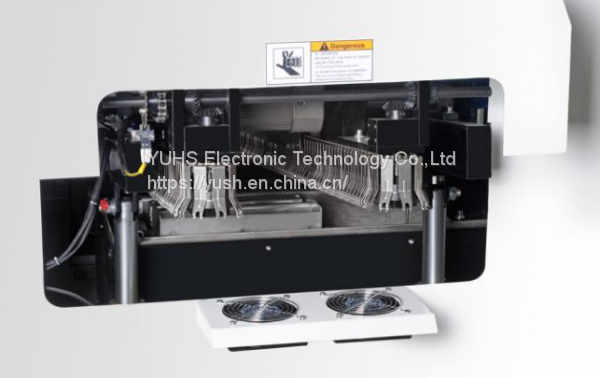

Patented titanium alloy chain claw, non-stick tin, never deformed, long life, stable and reliable transport PCB. Equipped with a cooling module (optional with a cooling fan), it is suitable for lead-free multi-process requirements.
The whole titanium tin furnace has a function of automatic entry and exit of the tin furnace, and the double wave peak passes through the frequency converter to independently control the double peak height.
