Description

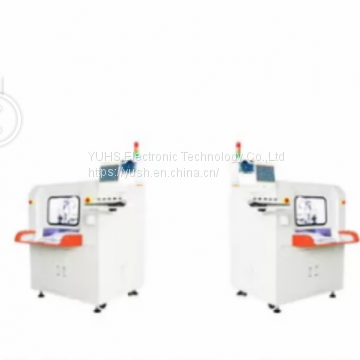

PCB Router Depanleing Machine YSVC-650
YSVC-650 A /YSVC-650B Series are fast and accurate stand-alone PCB routers witha CCD camera and sophisticated image-processing software.
A: Solution for low-Stress Depanelization
High-speed router bit precisely cuts densely populated PCBs without stressing the boards. Cutting paths can be set as close as 0.5mm to a component.
B:Advanced Image-Processing Software Offers Point-and-Click Operation for Programming Router Paths.

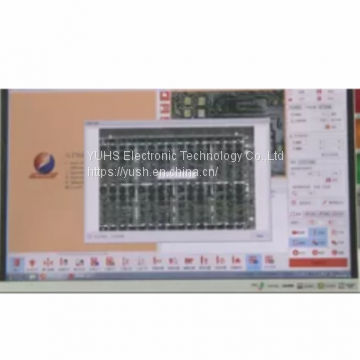

CCD Camera captures an image of the PCB and easy programming of cutting paths is achieved by simple Point-and -Click Windows-based operation on the computer screen. Time is reduced and programming is simplified by this software.
C: Automatic Alignment Compensation by CCD Camera.
CCD Camera reads fiducial marks on a PCB and compensates for variance on relative position of cutting paths.
D: Extended Router Bit Life.
Automatic 5-stage depth adjustment extends bit life and reduces time and cost of replacement.
E: High-Speed X-Y Robot and Z-axis Servo Motor
Reduces tact time and improves productivity.
F: Samll Footprint
Specifications:
| YSVC-650 A | YSVC-650 B | YSVC-650C | |
| Type | Stand Alone | ||
| Pogram | Image Processing Software | ||
| Routing Area | 300 x 350 mm | 300 x 450 mm | 500 x450mm |
| Max PCB Thickness(Standard) | 2mm | ||
| Setting Fixture | 2 stations | ||
| Man-Machine Interface | Touchscreen Industrial Monitor + Keyboard + Mouse | ||
| PCB Loading/Unloading | Automatic | ||
| Max PCB Thickness(Option) | 6mm | ||
| PCB Material | Glass Epoxy,CEM1,CEM3,FR4 etc. | ||
| Router Bit Diameter | 0.8~3.0mm | ||
| Repeatability | ±0.01mm | ||
| Spindle Motor | Max 60,000 rpm | ||
| Door | Auto | ||
| Electrial Power | 3 phase AC 380V 50hz | ||
| Pneumatic | 0.5 MPa | ||
| Router Size(mm) | 1300*1100*1500mm | 1300*1350*1500mm | 1500*1350*1500mm |
| Weight | 800KG | 850KG | 900KG |
| Dust Collector Model | VF-30N | ||
| Type | Off- Line | ||
| Software version | Basic / Professional/ Customized | ||
| Cutting function | Linear, Circular, U-curve, Arc, L-curve | ||
| Visual system | Visual automatic positioning system | ||
| Cutting accuracy | ± 0.01mm | ||
| X, Y, Z axis drive mode | AC Servo motor | ||
| X, Y axis cutting speed | 0-100 mm/s | ||
| Operation and data | PC Systerm | ||
| Operation interface | Windows 7 | ||
| Voltage | 220 V 50HZ 1ψ | ||
| Power | 1500W | ||
| Dust Collector Voltage | 380V 50HZ 3ψ | ||
| Dust Collector Power | 2200w | ||
| Dust collection method | Down dust- collector (standard) or UP dust-collector (option) | ||
Features:
YSVC-650 series is a visual alignment automatic PCB router machine, equipped with high-speed CCD vision correction device, especially for precision and high-capacity PCB boards routing operations, suitable for mobile phones, GPS, PDA and MODULE and other small The PCB is divided into boards. Using NAKANISHI Japanese precision spindle ( Also can be selected according to customer requirements Germany KAVO spindle etc), Without cutting stress, Board edge after cut is smooth, withhigh precision.
A. Choose the order method to achieve automatic cutting
1. The cutting process is combined with the production model and quantity, according to the PMC plan to production;
2. To avoid the emergence of advanced production and production capacity is not clear;
3. To avoid modifications in the non-production process;
4. To achieve separation of people and machines.
B. Two-dimensional code automatically retrieves the program.
1. Through the rule of a two-dimensional code can be directly transferred to the program, convenient, simple, no error;
2. Product switching intelligent.
C. CCD scanning function.
1. Industry-leading PCBA full-board scanning function;
2. Reduce the programming time, cutting the path of real-time display, easy to modify simple.
D. Industrial 4.0-MES system
1. The server data is automatically retrieved;
2. upload machine data and production data;
3. Real-time detection of equipment status
