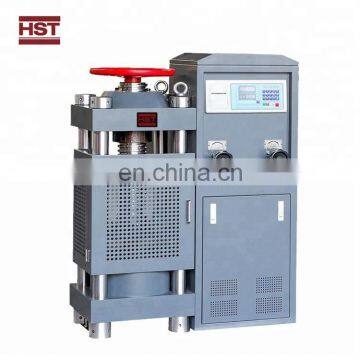

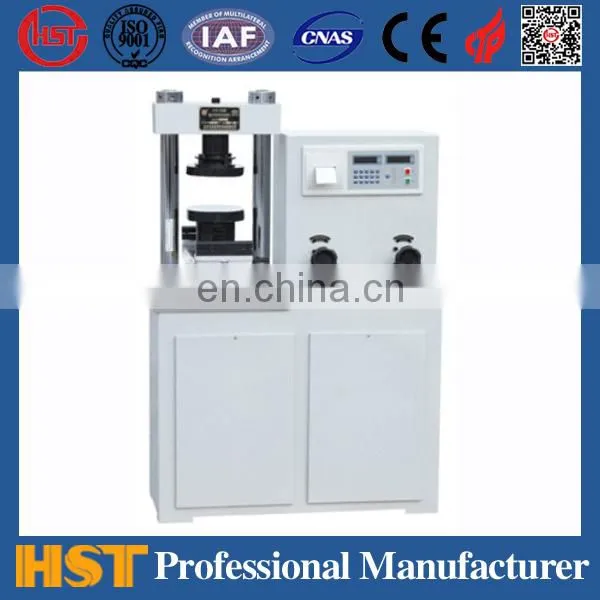

YES Series Digital Display building materials compressive strength and bending strength Testing Machine for concrete,Cement,brick
1.Application
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test, such as concrete. Cement, brick, etc.
2.Main Specifications
Model | YES-100 | YES-200 | YES-300 |
Max. Load | 100kN | 200kN | 300kN |
Range of test force | 4% ~100%FS | 4% ~100%FS | 4% ~100%FS |
Load display accuracy | ±1% | ±1% | ±1% |
Piston stroke | 80mm | 80mm | 80mm |
Max piston speed | 50mm/min | 50mm/min | 50mm/min |
Max compression space | 120mm | 120mm | 120mm |
Working table size | φ160 mm | φ160 mm | φ160 mm |
The Realistic Pictures of Our Factory:
Our company can also produce the customized testing machines as clients' requirements.Best service and the best price for you.
