Pipeline steel drop hammer impact test machine

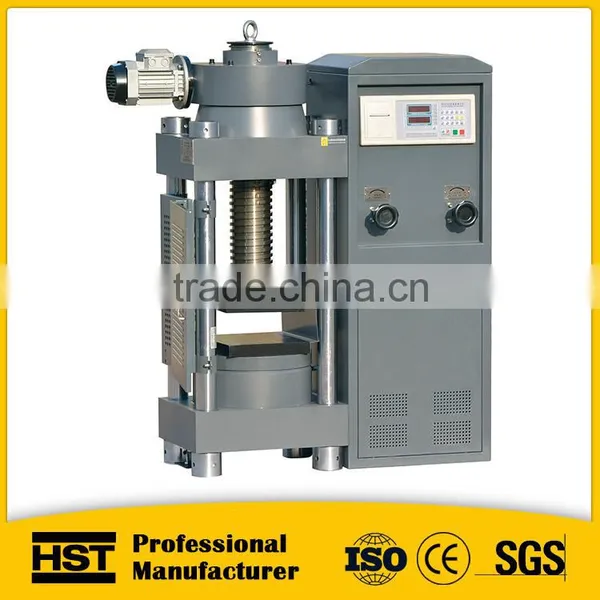

3000kn digital display concrete compression testing equipment
Compression testing machine application:
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Specifications:
Model | YES-2000D | YES-3000D |
Max. load | 2000kN | 3000kN |
Class | 1 class | 1 class |
Testing space regulating way | Electric ball screw adjust | |
Control way | Manual control load way | |
Oil source control cabinet structure form | One-piece bench oil source control cabinet | |
Range of test force | 4% ~100%FS | |
Indicating value accuracy | ±1% | |
Piston route | 50mm | 50mm |
Max piston speed | 20mm/min | 20mm/min |
Test width | 330mm | 340mm |
Compression space | 320mm | 340mm |
Upper Pressure plate size | 240*240mm(Can be customized) | |
Lower pressure plate size | 250*300mm(Can be customized) | |
Display | LCD | |
Power supply | 2.1Kw/AC380V | |

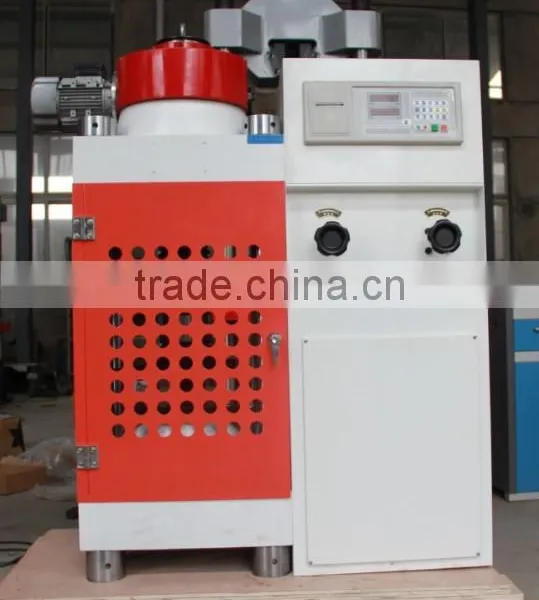

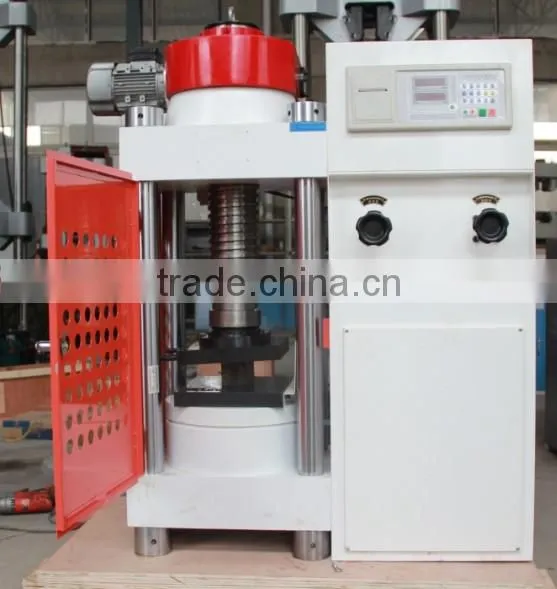

Compression testing machine YES-100KN:
Different color of compression testing machine:

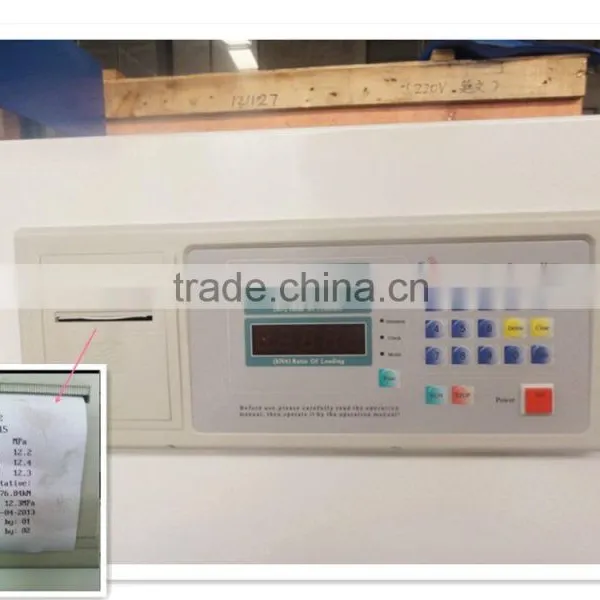

English language dispaly control pannel:
English Test Report:
CE certificate:
Our compression testing machines can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you !
Best Wishes !
-------------
amy
Jinan Hensgrand Instrument Co.,Ltd.
Tel/WhatsApp: +86-15866777131
Fax:+86-531-81901323
TradeManager: cn1519065146tuuj
Add: 4915,West Jingshi Road,Jinan city,ShanDong Province,China
Dear customer, maybe you also insterested in below products, please "click " picture directly for details:
YES-300 Digital Display Compression Testing Machine YES-1000 Digital Display Compression Testing Machine
