Forney concrete compression testing machine 200 ton
Contact: sunny Whatsapp/Line/Phone: +8615589960023 Skype:jessica-hssd
1.Application:

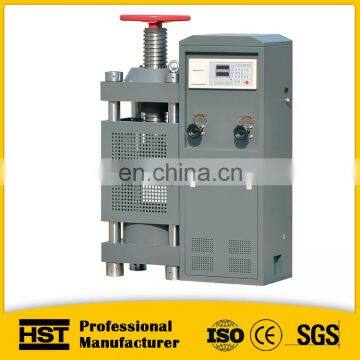

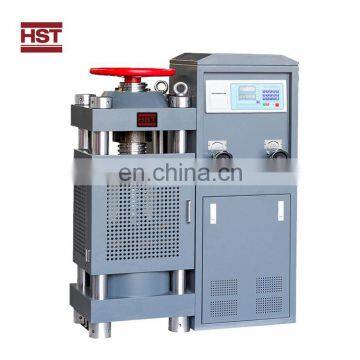

YES-2000 Digital Display Compression Testing Machine mainly used for Concrete Cube and other
material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,
R&D institution lines. The test operation and data processing meets standard requirements.
2.Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
3.Main Specifications:
Model | YES-2000 |
Max. Load | 2000 kN |
Class | 1 Class |
Testing Space Regulating Way | Manual Ball Screw Adjust |
Control Way | Manual Control Load Way |
Oil Source Control Cabinet Structure Form | One-piece Bench Oil Source Control Cabinet |
Range Of Test Force | 4% ~100% FS |
Indicating Value Accuracy | ±1% |
Piston Stroke | 50mm |
The Largest Spacing Of Upper And Lower Pressure Plate | 320mm |
The Largest Spacing Of Two Columns | 270mm |
Pressure Plates Size | 250*250mm(L*W) |
Display | LCD Digital Display |
The Host Dimension | 900×400×1150mm |
Power Supply | 1KW/AC380V |
Weight | 750 KG |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.

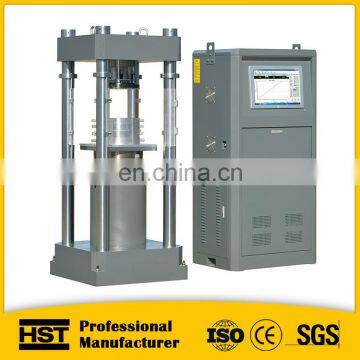

YAW-2000D Computer Control YES-300 Digital Display YES-2000D Digital Display
