YES Digital Display Eletronic Concrete Brick Compression Testing Machine / price digital compressive strength testing machine
Compression testing machine application:
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test.
Main Specifications:
Model | YES-100 | YES-300 |
Max. Load | 100kN | 300kN |
Range of test force | 4% ~100%FS | 4% ~100%FS |
Load display accuracy | ±1% | ±1% |
Piston stroke | 120mm | 120mm |
Max piston speed | 50mm/min | 50mm/min |
Max compression space | 210mm | 210mm |
Distance between upper and lower platen | 340mm | 340mm |
Working table size | φ160mm | φ160mm |

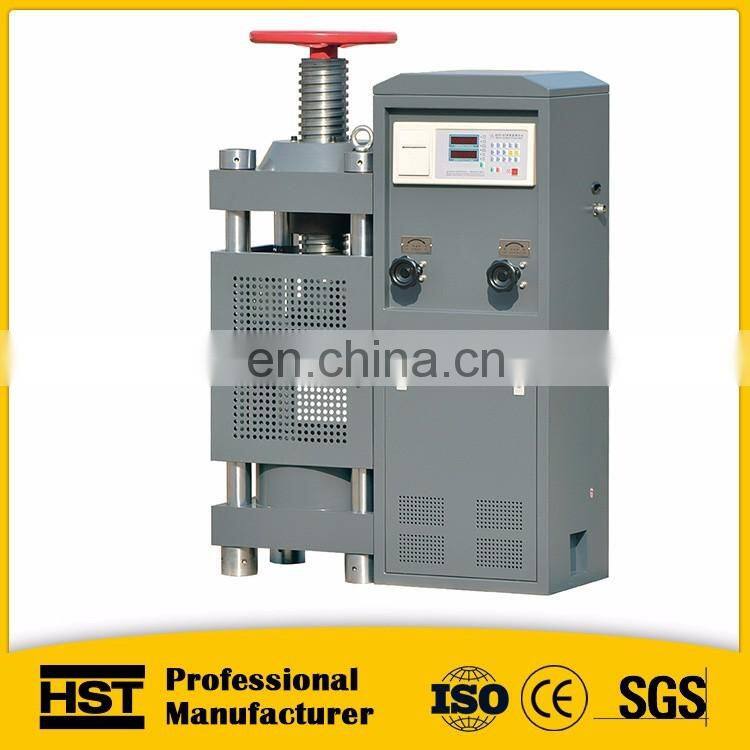

Compression testing machine YES-100KN:

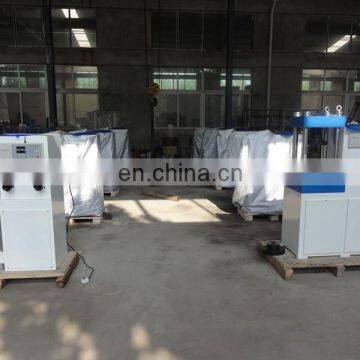

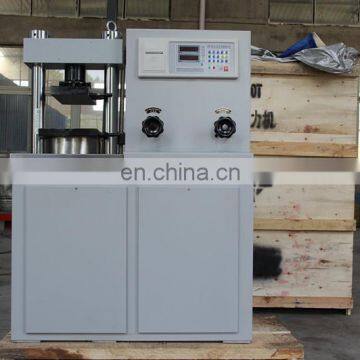

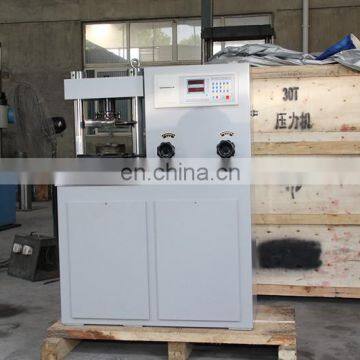

Different colors compression testing machine:

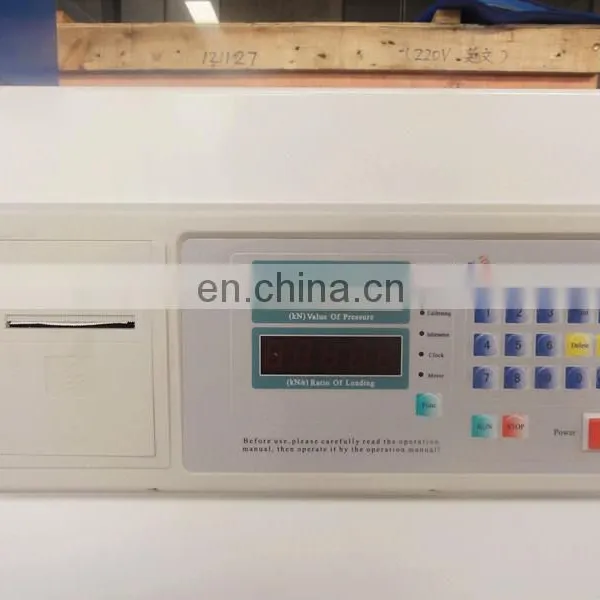

English language display control pannel:
English Test Report:
CE certificate:
Our compression testing machines can be delivery within 3 working days --5 working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you !
Best Wishes !
-------------
Adela Wang
Jinan Hensgrand Instrument Co.,Ltd.
Tel/WhatsApp: +86-18660396497
Fax:+86-531-81901323
TradeManager: cn1519065146tuuj
Dear customer, if you still insterested in below products, please "click " picture directly for details. Please send me inquiry directly !
manual control compression testing machine computer control compression testing machine
