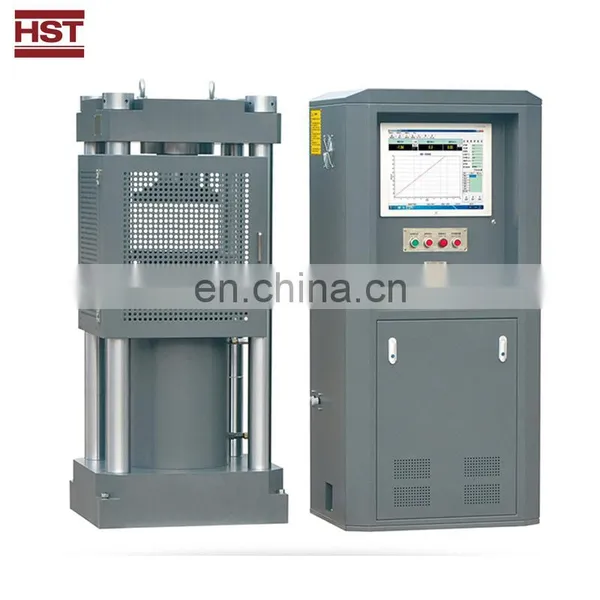

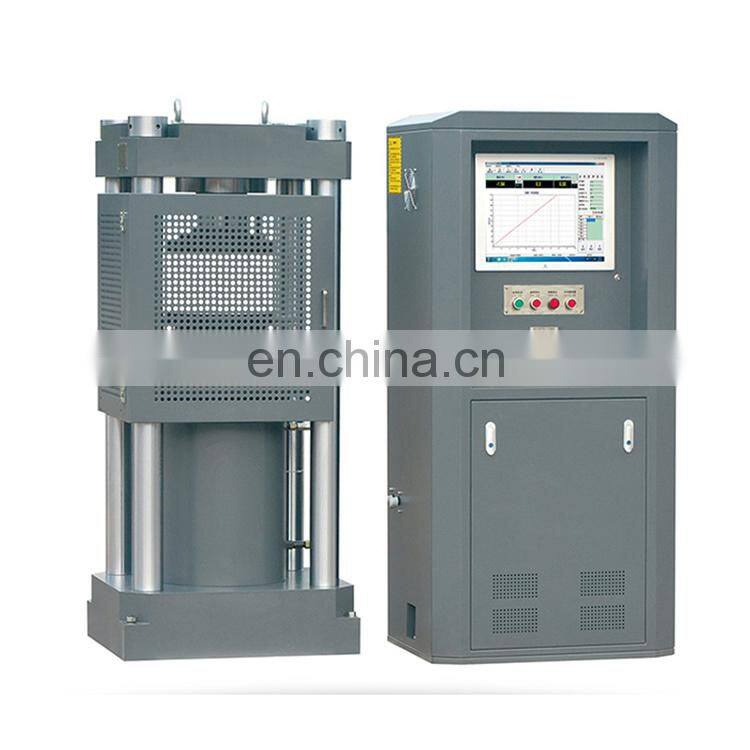

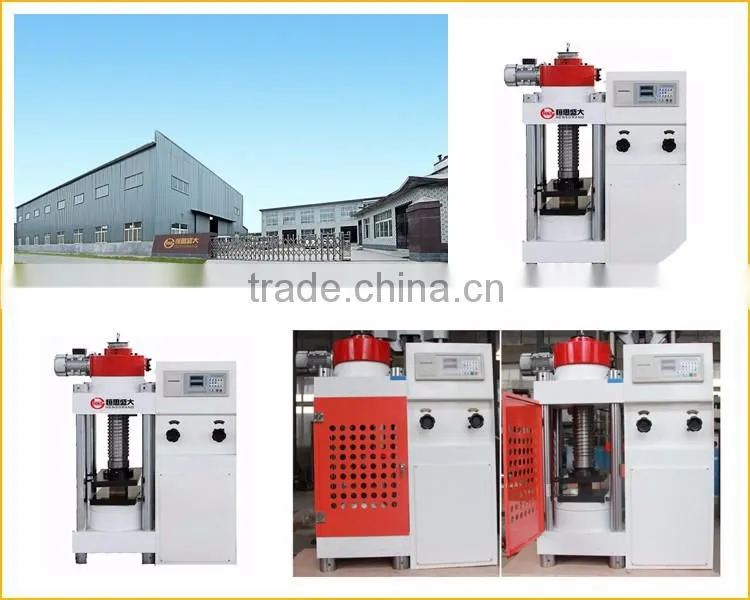

Materials Laboratory PILOT COMPACT-Line automatic compression machine 2000 KN for Concrete and other Blocks
Contact: sunny Whatsapp/Line/Phone: +8615589960023 Skype:jessica-hssd
YAW-BG Series Compression Testing Machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
Model |
YAW-2000BG |
Max. Load |
2000kN |
Control method |
Computer auto control loading process |
Oil source control cabinet structure |
One-piece oil source control cabinet |
Test class |
1 class |
Testing range |
4%-100%FS |
Load display accuracy |
Better than ±1% |
Piston stroke |
200mm |
Distance between upper and lower platen |
360mm |
Size of compression platens |
300mm(customized) |
Power supply |
2.0Kw/AC380V |

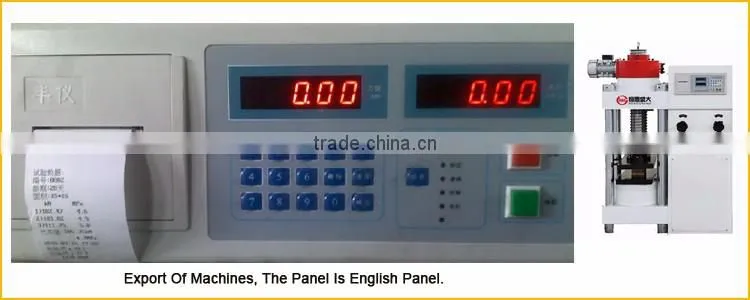

4. Controlling system
This machine is with digital and multi-channel loop of measuring and controlling system. It adopts force closed loop control technique and has the function of constant stress loading and load keeping. Loading speed can be arbitrarily set and the testing curves can be real time displayed.
5. Software:
1. The software integrate compression resistant test procedure , such as bricks, cement, concrete and mortar.
2. There is no subsection in all process. (Or classify according to the requirements of customers.)
4. Complete test in batch automatically and adjust breaking of specimen.
5. PC will display test force, peak, time and test curves, etc.
6. Full control process is fully controlled by PC. It is easy to manage and control, collect and calculate.
7. Record and save testing data automatically.
8. Customer design testing reports.
We supply full range services:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs.
After-sale, we could supply door to door installation and training services according to customer requirements .
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways.
The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.
