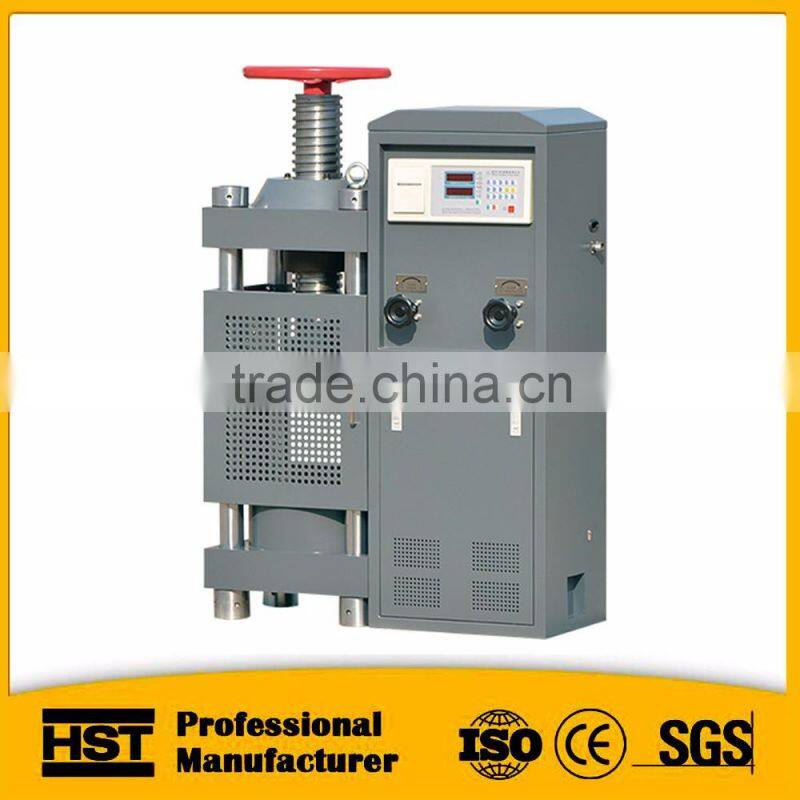

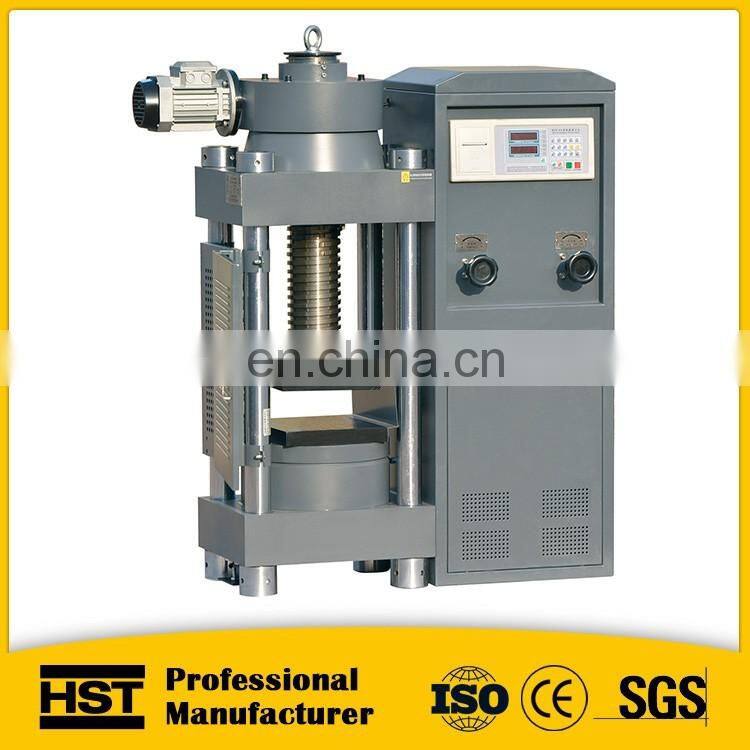

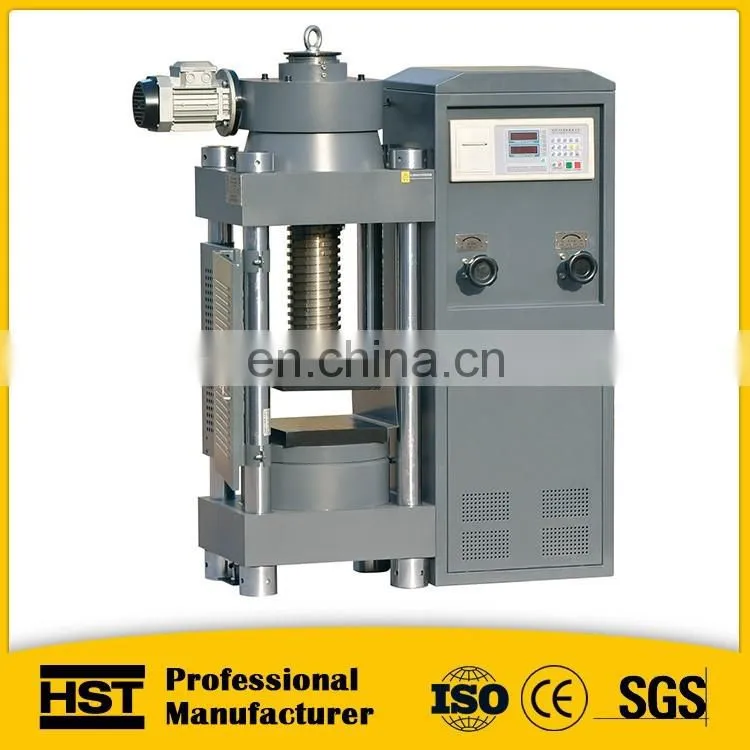

compressive strength test equipment 2000kN for concrete/cement cube and cylinder
Contact: sunny Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd
1. Application
Digital display concrete compression testing machine mainly used for concrete and other material
compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications
Model | YES-2000D | YES-3000D |
Max. load | 2000kN | 3000kN |
Class | 1 class | 1 class |
Testing space regulating way | Electric ball screw adjust | |
Control way | Manual control load way | |
Oil source control cabinet structure form | One-piece bench oil source control cabinet | |
Range of test force | 4% ~100%FS | |
Indicating value accuracy | ±1% | |
Piston route | 50mm | 50mm |
Max piston speed | 20mm/min | 20mm/min |
Test width | 330mm | 340mm |
Compression space | 320mm | 340mm |
Upper Pressure plate size | 240*240mm(Can be customized) | |
Lower pressure plate size | 250*300mm(Can be customized) | |
Display | LCD | |
Power supply | 2.1Kw/AC380V | |
We supply full range services:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs.
After-sale, we could supply door to door installation and training services according to customer requirements .
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways.
The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.

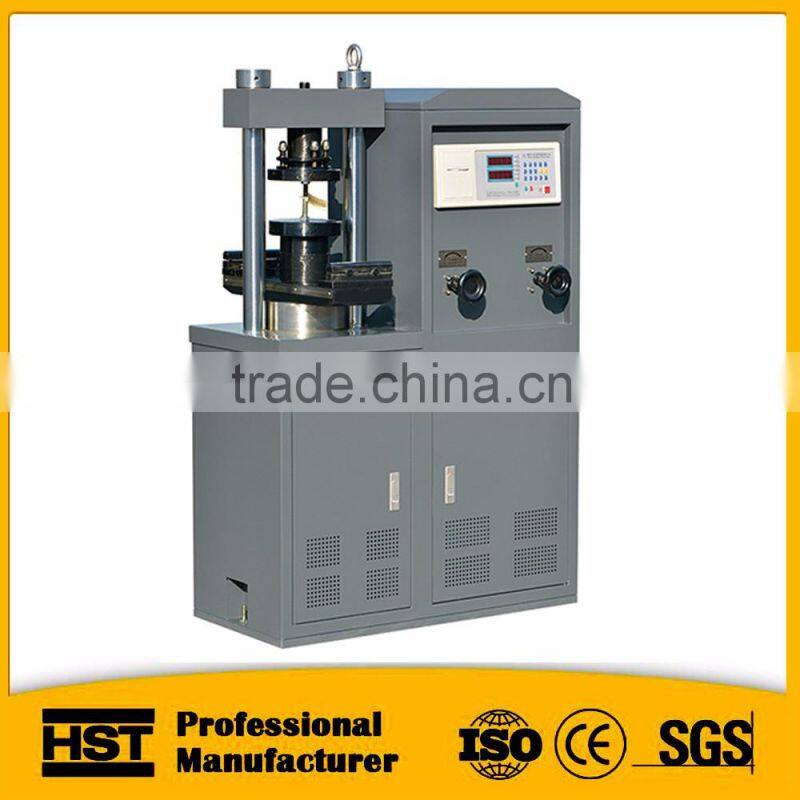

YES-300 Digital Display Compression Testing Machine YES-1000 Digital Display Compression Testing Machine
