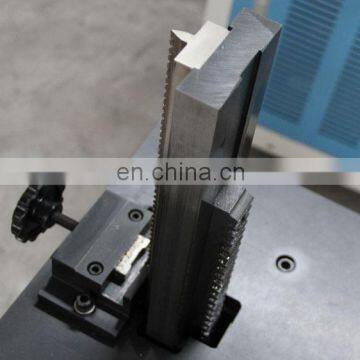

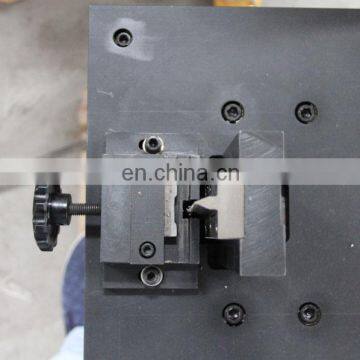

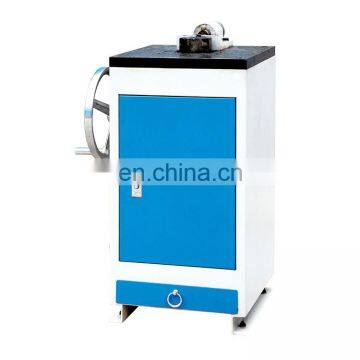

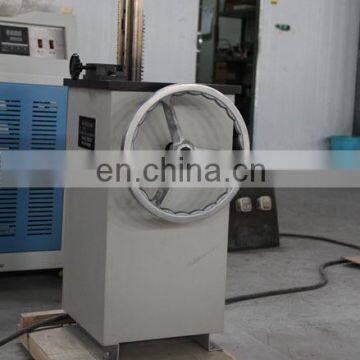

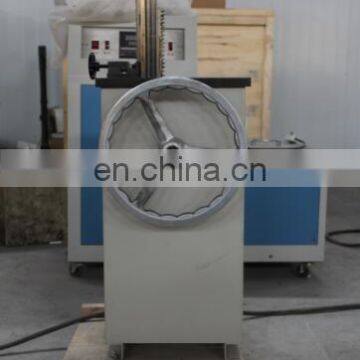

VU-1S Manual Gap Broaching Machine
1. Application
VU1S Manual Notch Cutting Machine for Impact Specimen is used to cut notch in the impact test for petroleum chemical industry, metallurgy, boiler and pressure vessel, steel plate, steel pipe, windpower generation, hardware, metal, casting, pump, valve, solar, ordnance, fasteners, diesel engine, electric power, iron tower, railway, ship, machinery manufacturing, automotive, aerospace, physical and chemical laboratory, scientific Research
2. Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,GB229-2007
3. Main Technical Specifications:
Shape of sample notch | V-shape(2 mm) |
Sample size | 10×10×55mm (or 10×10×7.5mm , 10×10×2.5mm) |
Cutting mode | Manual |
Broach material | W18Cr4V |
Max. Dimension | 350×350×600mm |
Weight | 100kg |
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
