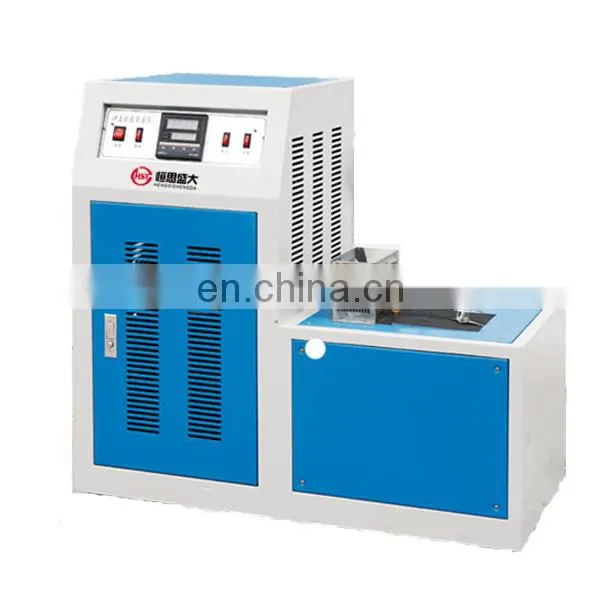

Impact Test Low Temperature Chamber
1. Function
HS type impact test low-temperature chamber is a supplemental equipment for impact test under low temperature. It is used to keep the specimen cooling or at a constant temperature.
2. Feature
1. It adopts imported overlap refrigeration technology, heat balance principle and loop mixing method;
2. Double stirring motors make the cooling medium play evenly for uniformity cooling;
3. It has automatic cleaning device for specimens and stainless steel inside;
4. Operating desk is stainless steel plate;
5. The specimen shelf is net-type stainless steel;
6. It fully meet the requirements of GB/T 229-2007 “Metal Charpy Notch Impact Test Method” for low temperature devices.
7. There are also HS-40, HS-60, HS-80, HS-100, HS-150, and HS-196(liquid nitrogen) models to meet needs from different customers.
3. Application
HS type impact test low-temperature chamber, as the best low-temperature impact testing equipment, is widely used in many industries and areas including petrochemical industry, metallurgy, boiler and pressure vessels, steel plates, steel pipes, wind power generation, hardware, metal, casting, pumps, valves, solar energy, war industry, fasteners, diesel engines, electric power, iron towers, railways, shipbuilding, machinery manufacturing, automotive industry, aerospace industry, physical and chemical laboratory and scientific research.
4. Main technical parameters
Model | HS Impact Test Low Temperature Chamber | |
Cooling range |
+30~-100°C (room temperature:≤25°C) other cooling range is available
| |
Constant temperature accuracy | ±0.5°C | |
Cooling speed | +30°C~0°C | About 2.0°C/min |
0°c~-20°C | About 1.5°C/min | |
-20°C~-60°C | About 1.0°C/min | |
| -60°C~-100°C | About 0.7°C/min |
Max. Dimension | 1500×1200×1200 mm | |
Available working place | 150×150×240mm | |
Specimens amount | >200 (Impact Specimens Size: 10×10×55mm) | |
Digital timer | 1min~100min(Resolution:1min) | |
Cooling medium | alcohol or other unfrozen liquid | |
Stirring Motor | 12w | |
Power supply | 220V~240V, 50HZ, 7KW | |
Control Precision | ±0.1 | |
Digital timer temperature precision | 0. 01°C(Resolution: 0.01°C) | |
Double stirring motors | make the cooling medium play evenly, in order to make specimens in uniformity cooling | |
Work temperature | ≤25°C | |
