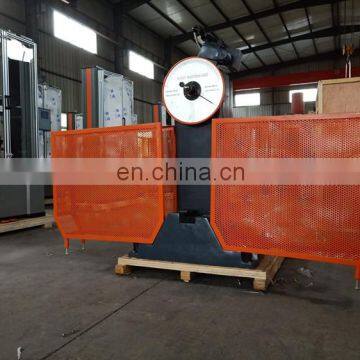

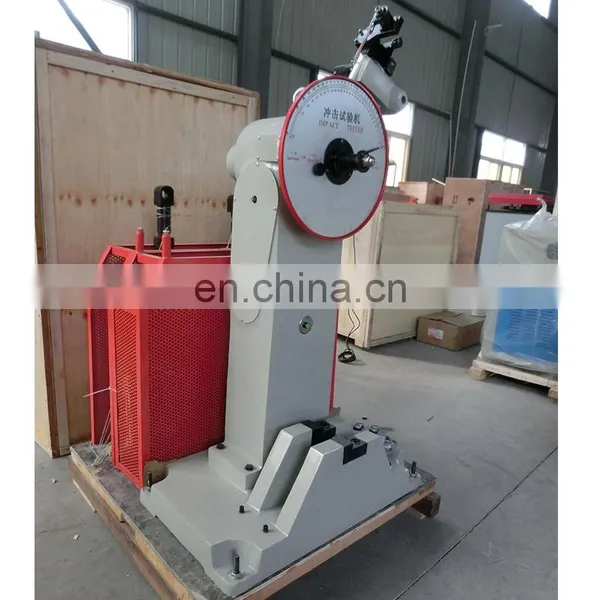

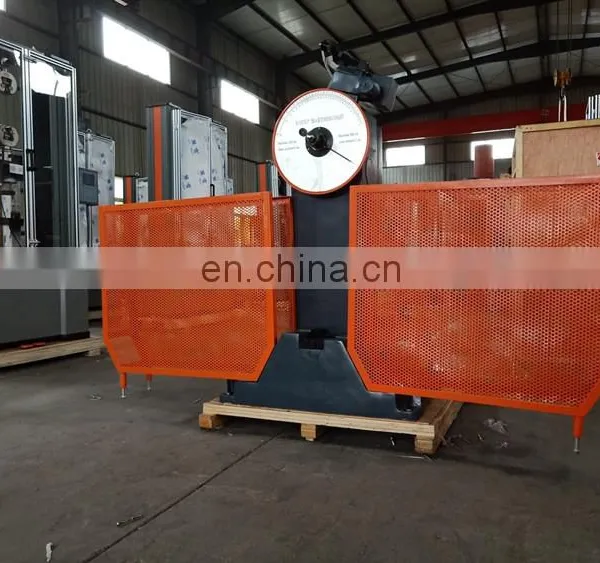

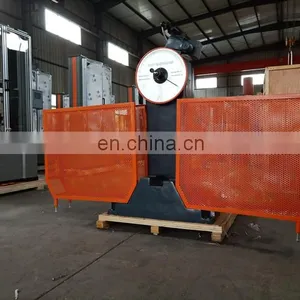

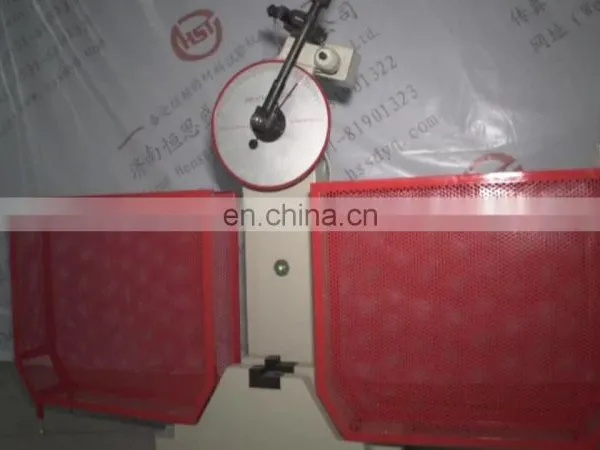

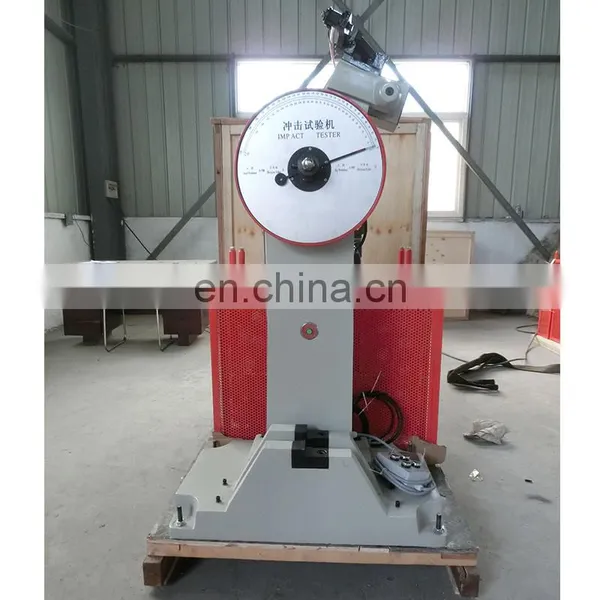

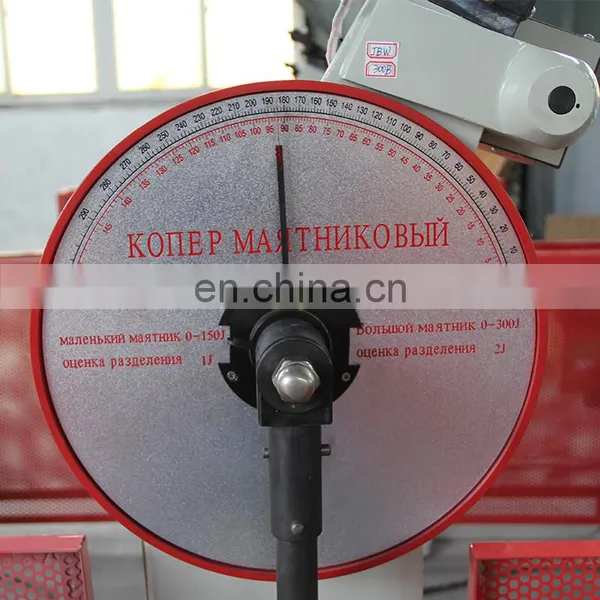

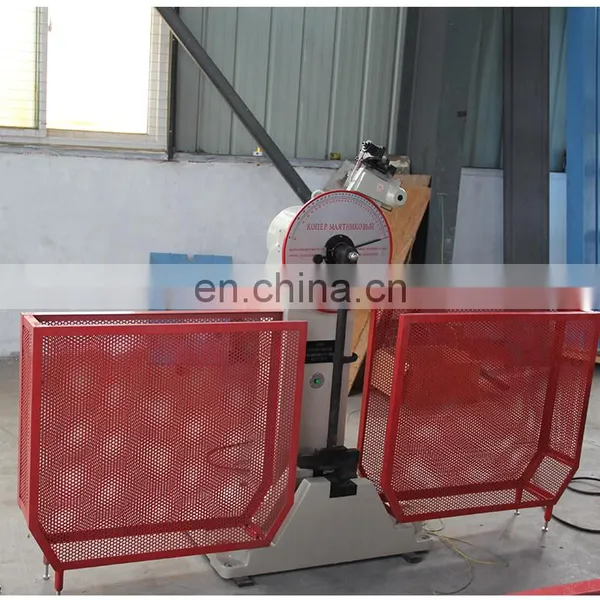

JB-B Semi Automatic Pendulum Charpy Impact Testing Machine/Metal Impact Tester
US$ 2,860 - 2,980
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HS or OEM
Place of Origin:
Shandong, China
Model Number:
JB-300B
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manual Charpy Testing/impact Testing MachineUS$ 99 - 9,999MOQ: 1 Set -
Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Machine/Low Voltage Freezer ThermostatUS$ 2,900 - 3,000MOQ: 1 Set
-
Low Temperature Chamber for Charpy Impact Test + Cooling Chamber+Chiller+Cooling CabinetUS$ 999 - 3,999MOQ: 1 Set
-
Pendulum Impact Tester/charpy Impact Test Equipment/izod Impact TestUS$ 3,200 - 3,500MOQ: 1 Set
-
Charpy Metal Izod Charpy Impact Testerimpact Testing MachineUS$ 6,000 - 6,000MOQ: 1 Set
Brand Name
HS or OEM
Place of Origin
Shandong, China
Model Number
JB-300B
Power
Electronic
JB-B Semi Automatic Pendulum Charpy Impact Testing Machine/Metal Impact Tester
Application
Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method.
Its a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas, but also used for the science research.
Main Technical Specifications:
Model | JB-300B | JB-500B | JB-800B | ||
impact energy | 150/300J | 250/500J | 500/800J | ||
The distance between the pendulum shaft and impact point | 750mm | 800mm | 800mm | ||
Impact speed | 5.2m/s | 5.4 m/s | 5.9m/s | ||
Pre-rising angle of the pendulum | 150° | ||||
Specimen bearer span | 40+0.2mm | ||||
Round angle of the jaw | R1-1.5mm | ||||
Round angle of impact edge | R2-2.5mm,R8±0.05mm | ||||
Angle accuracy | 0.1° | ||||
Standard specimen dimension | 10mm×10(7.5/5)mm×55mm | ||||
Power supply | 3phs, 380V, 50Hz Or 220V,60Hz | ||||
Dimensions (mm) | 2124 x 600 x 1340 | 2200 ×650 ×1960 | 2450 x 1200 x 2455
| ||
Net Weight (kg) | 450 | 650 | 2300 | ||
4. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net
