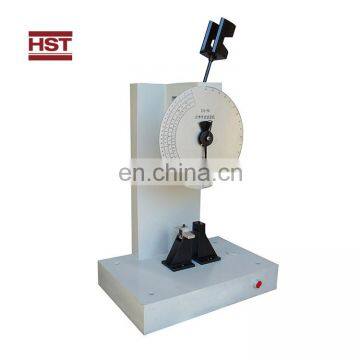

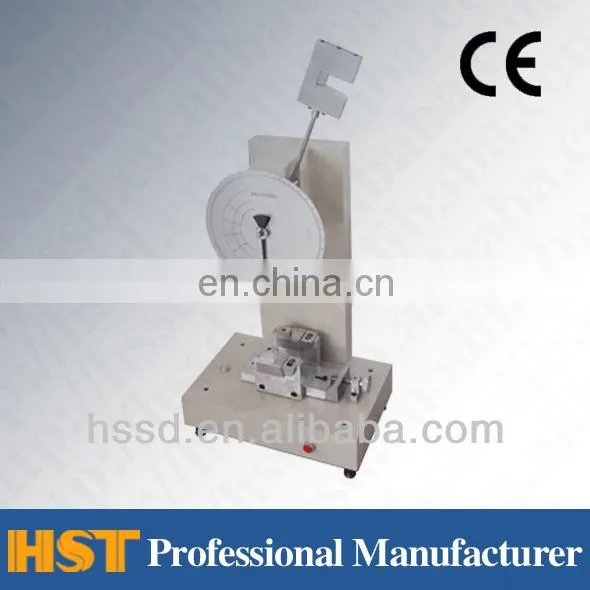

Dial Display Charpy Impact Testing Machine
Application:
The electronic type adopts raster -display technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity,fore-elevation, ascending angle, automatic correcting the loses energy revises .
Technical parater:
mpact energy |
50J standard configuration (other s optional) |
||||||
Pendulum torque |
7.5J Pendulum PL=3.866Nm |
15JPendulum PL=7.733Nm |
25J Pendulum PL=12.889Nm |
50JPendulum PL=25.777Nm |
|||
Dial indexing angle |
1/100 |
||||||
Impact speed |
3.8m/s |
||||||
Pendulum angle |
160° |
||||||
The distance between pendulum center and sample center |
380mm |
||||||
Round angle of the jaw |
R=1±0.1mm |
||||||
Round angle of impact cutting edge |
R=2±0.5mm |
||||||
Impact blade angle |
30±l° |
||||||
Span of support(mm) |
40mm |
60mm |
70mm |
95mm |
|||
Energy loss |
0.5% |
||||||
Dimension |
550mm×350mm×850mm |
||||||
Weight(Kg) |
160kg |
||||||
