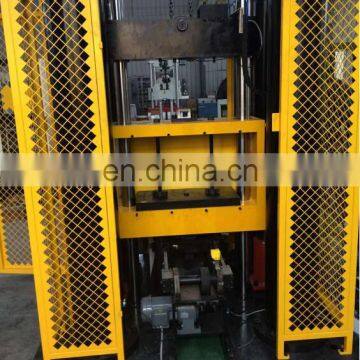

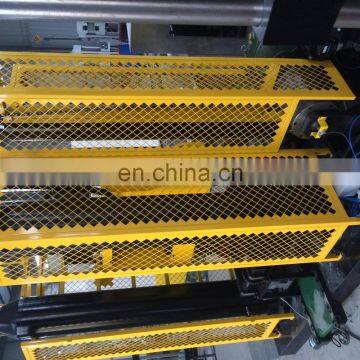

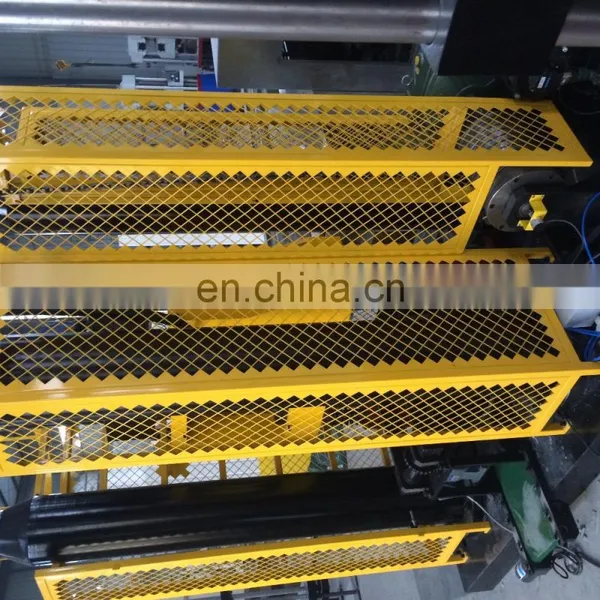

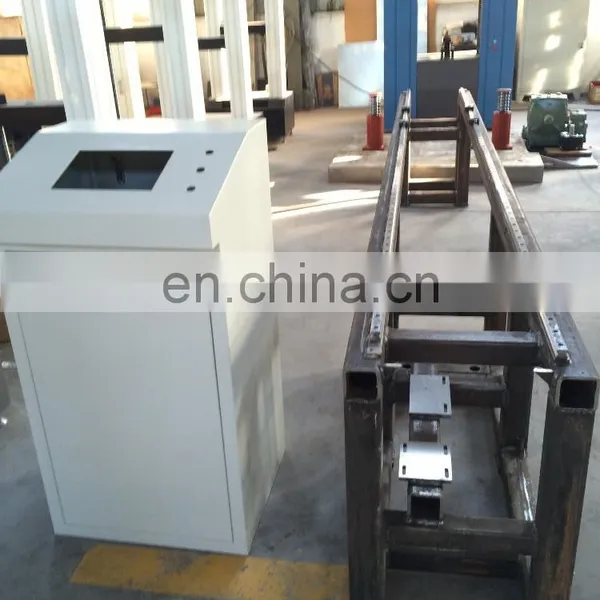

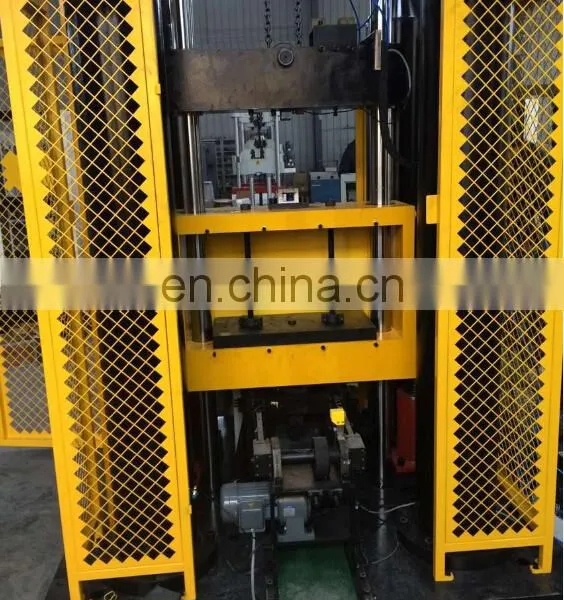

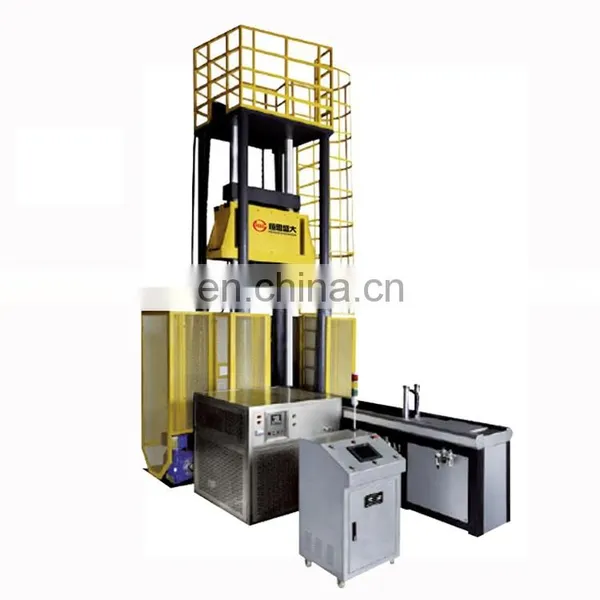

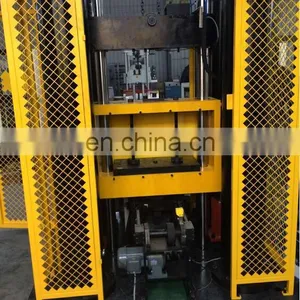

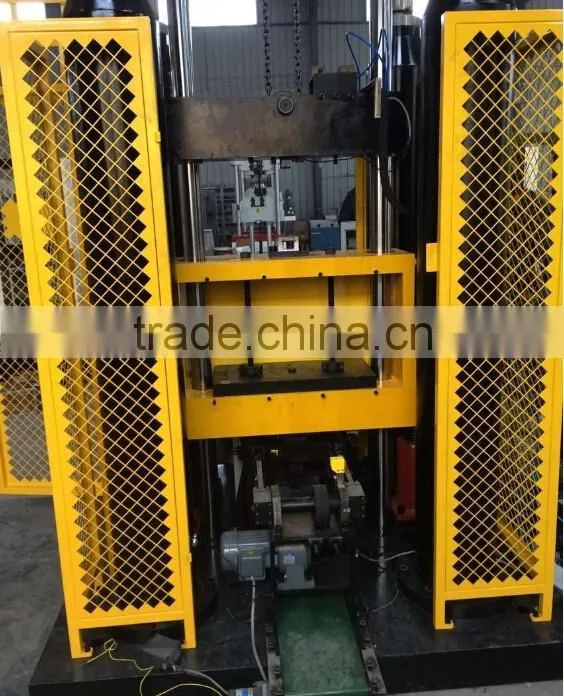

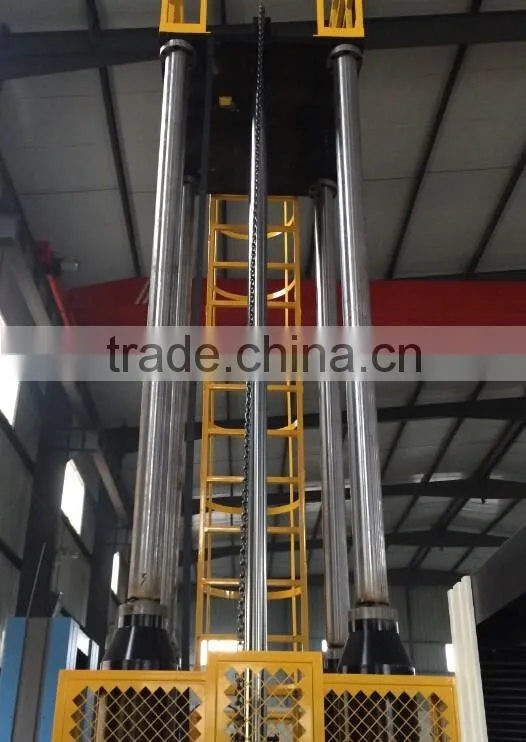

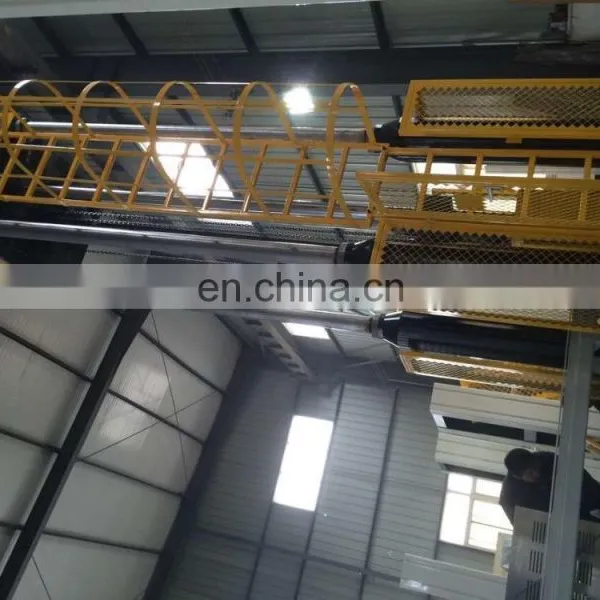

DWTT-100000 Pipeline Steel Drop Hammer Tear Testing Machine
- 100 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
| Brand Name: | HST | Place of Origin: | Shandong, China | Model Number: | DWTT |
| Power: | Electronic |
Product Description
DWTT-100000 Pipeline Steel Drop Hammer Tear Testing Machine factory
Overview:
The drop hammer impact test machine is mainly used for drop weight tear test of pipeline steel, thick steel and ferritic steel, namely DWTT test. The drop hammer impact test machine integrating mechanical, electrical, automatic control technology in one, and achieve the cooling, feeding, lifting hammers, impact, fracture specimen, collection, grab the hammer fully automated process. In addition, this test machine has multi-channel safeguard, greatly improve the equipment operating and personnel safety. This machine is commonly used by aircraft manufacturer of the pipeline, large steel mills, Iron and Steel Institute and other enterprises and research institutes
The main function:
Mainly applicable to drop weight tear test for ferritic steel, pipeline steel .
Standard:
1. GB/T 8363-2007 Ferritic steel drop weight tear test method
2. ASTM E436-03 Standard Test Method for Drop-Weight Tear Tests of Ferritic Steels
3. API RP*5L3-96 Conducting Drop-Weight Tear Tests on Line Pipe
Application Industry:
Measurement of Quality; iron and steel metallurgy; machinery manufacturing; research laboratories; commodity inspection arbitration, technical supervision departments and other industries.
Technical parameter:
1. Maximum impact energy:100000J
2. Minimum impact energy:20000J
3. Main hammer body mass:1620kg
4. Main hammer body mass error:±1%
6. Weights mass error:±0.5%
7. Total mass of hammer:1020kg
8. Impact height:1275mm~3400mm
9. Impact velocity:5m/s~8.16m/s
10. Height measurement resolution:0.1mm
11. Height measurement error:≤±10mm
12. Hammer blade hardness:HRC58~62
13. Radius of Hammer blade curvature:R25±0.1mm
14. Bearing hardness:HRC58~62
15. Radius of bearing curvature:R25±0.1mm
16. Hammer blade center and bearing center deviation:≤±1.5mm
17. Specimen bearing span:254±1.5mm
18. Sample size:(305±5)×(76.2±1.5)×(3~50)mm
Low Temperature Device Sample Making Device
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
