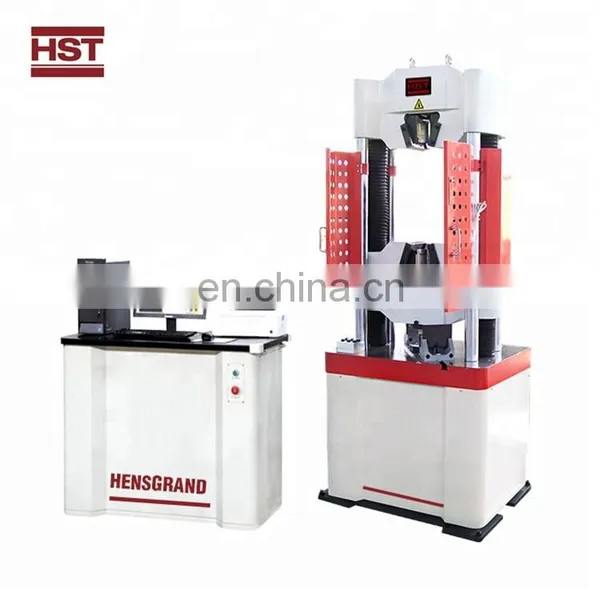

Help CenterHydraulic Universal Testing Machine UTM 2000Kn 200ton
Related Products
-
WAW-2000D Pipe Hydraulic Pressure Test Equipment/Computerized Hydraulic Universal Testing MachineUS$ 5,999 - 15,999MOQ: 1 Set -
WEW-1000D Computer Display 1000kn UTM Universal Testing MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
WAW-2000D 2000KN UTM Computerized Control Servo Type Universal Testing MachineUS$ 28,000 - 28,000MOQ: 1 Set
-
WAW- D 300kN 600kN 1000KN 1500kN 2000kN Computer Automatic Hydraulic Universal Testing MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
WAW-5000D 500Ton 5000kN Hydraulic Universal Tensile Compression Test EquipmentUS$ 4,000 - 5,000MOQ: 1 Set
WAW-D Computer Control Universal Tensile Testing Machine
Application:
This machine is mainly used to process tensile test,compression test , bending test and shearing test of metallic material.it can also be used to process compression test and bending test of cement,brick,tile,rubber and other nonmetallic material. With special auxiliary equipment it can also be used process mechanical property test of fastener, steel wire rope, components . It applies to aerospace industry, engineering inspection, university and college, mining industry , research institution and other fields.
Features:
1. It has three parts: Host & oil source &measurement control system
2. Automatic rise, down, test and stop
3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniformstress in the test, can improve the soundness and life, make holding more firm and smooth
4. Between the jaw seat and jaw plate addedwear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
5. Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
5. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
Technical parameter:
Model |
WAW- 300D |
WAW- 600D |
WAW- 1000D |
WAW- 2000D |
|||
Max test force |
300 kN |
600 kN |
1000kN |
2000 kN |
|||
Tensile fixture configuration |
Hydraulic automatic clamping tensileconfiguration |
||||||
Bending fixture configuration |
Three points bending fixture |
||||||
Structure |
Four columns two ball screw chain transmission oil cylinder down-setting |
||||||
Compression fixture configuration(mm) |
Φ160mmSpherical automatic finding formal compression fixture |
||||||
Machine level |
1 class/0.5 class |
||||||
Range of test force |
2%-100%FS |
||||||
Relative error of indicating value |
better than ±1% |
||||||
Force resolution |
1/300000 |
||||||
Deformation indicating relative error |
better than ±0.5% |
||||||
Relative error of displacement indicating |
better than ±1%/±0.5% |
||||||
Displacement resolution(mm) |
0.01 |
||||||
Max piston speed(mm/min) |
0.2-70 |
||||||
Gantry adjust speed(mm/min) |
150 |
||||||
Max piston route (mm) |
250 |
||||||
Effective tensile space(mm) |
650 |
||||||
Effective compression space(mm) |
500 |
||||||
Stand column distance(mm) |
540 |
540 |
600 |
700 |
|||
Clamping diameter of round sample (mm) |
Φ13-Φ40 |
Φ13-Φ40 |
Φ13-Φ40 |
Φ26-Φ70 |
|||
|
Clamping diameter of flat sample(mm) |
0-15 |
0-15 |
0-30 |
0-50 |
|||
Machine size(mm) |
740×580 ×2950 |
740×5 80×2950 |
820×660 ×3250 |
1200×980 ×3250 |
|||
Bending branch roll up and downdiameter(mm) |
3×Φ30 |
||||||
Oil cylinder structure size(mm) |
820×590×920 |
||||||
Machine weight |
2000Kg |
2600 kg |
3500kg |
6800 kg |
|||
Host machine power |
380V/50Hz/three-phase four-wire system |
||||||
