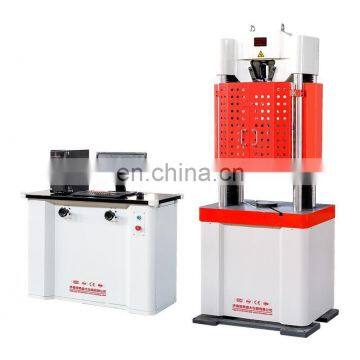

WAW- D 300kN 600kN 1000KN 1500kN 2000kN Computer Automatic Hydraulic Universal Testing Machine
Application:
WAW_D Computer control electro servo Material Hydraulic Universal Testing machine adopts the oil cylinderunderneath mode. Mainly used for the tensile , compression, bending,
shearing and other tests of mental and nonmental materials. Applicable to the metallurgy, constructio, light industry, aviation, space, material, scientific research institutes, colleges, etc.
Feature
1. The test specimen hydraulic automatic clamping
2. Test force step:equivalent four files (constant resolution )
3. Control way:Constant stress, constant deformation, constant displacement three closed loop contro
Standard:
GB228-2002 Room temperature material tensile test standard test method
ASTM E8M Mental material tensile test standard test method
EN10002-I Mental material room temperature tensile test
ISO6892-1-2009 Mental material room temperature tensile method
ASTM C39 Cylindrical concrete specimen compressive strength test
Technical parameter:
Model |
WAW-300D |
WAW-600D |
WAW-1000D |
|||
Max load (kN) |
300 |
600 |
1000 |
|||
Structure |
6 column |
|||||
Control way |
constant stress uniform deformation constant displacement three closed loop control and program control |
|||||
Load accuracy |
≤±1% or ≤± 0.5% |
|||||
Load range |
2%-100%FS or 0.4%-100%FS |
|||||
Load resolution |
1/300000 |
|||||
Deformation Measurement Range |
2%~100%FS |
|||||
Deformation accuracy |
≤±1%/± 0.5% |
|||||
Displacement resolution |
0.01mm |
|||||
Displacement error |
≤±0.5% |
|||||
Max.piston stroke |
250mm |
|||||
Max. tension test space |
650mm (can customize) |
|||||
Max.Compression Test Space |
500mm (can customize) |
|||||
Oil cylinder moving speed |
140 |
90 |
50 |
|||
Crosshead moving speed |
200 |
150 |
120 |
|||
Effective space between columns (mm) |
430 |
475 |
525 |
|||
Round specimen clamping range |
Φ10-Φ32mm |
Φ13-Φ40mm |
Φ13-Φ40mm |
|||
Flat specimen clamping range |
0-15mm |
|||||

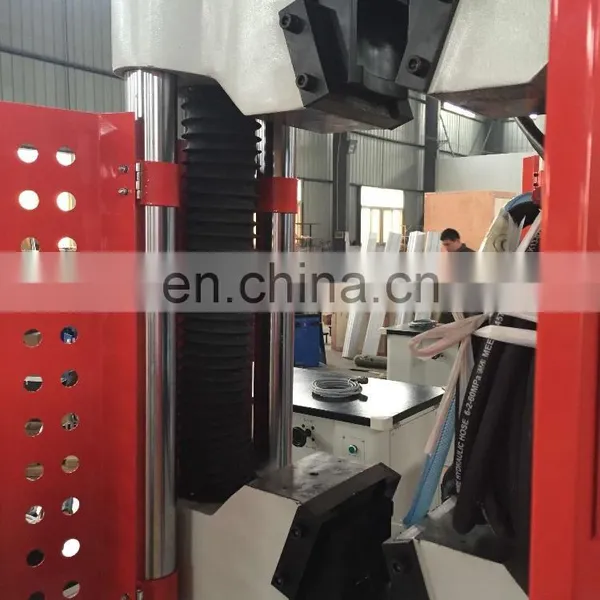

Clamping method |
Hydraulic clamp |
|||||
Clamp height |
70mm |
90mm |
90mm |
|||
Clamping width |
75mm |
80mm |
80mm |
|||
Compression plate size |
φ160mm |
|||||
Bending roller distance |
450mm |
|||||
Width of bending rollers |
120mm |
|||||
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
|||||
