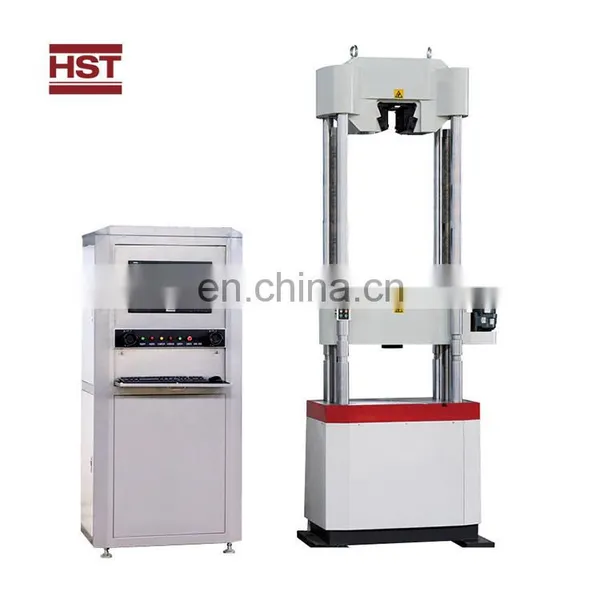

WAW-H 200 Ton , 2000KN Heightening Tensile Strength Test Machine , 2000KN Compression Test Machine
1.Application
Computer Control Electro-hydraulic Universal Compression Testing Machine is suitable for tension , compression , bending , shearing , peeling , tearing and other tests by adding different test fixture for metal and non-metal materials . It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control .
2.Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3.Main specifications
Model |
WAW- 100H |
WAW- 300H |
WAW- 600H |
WAW- 1000H |
WAW- 2000H |
||||||
Structure |
Four column Two ball screw |
||||||||||
Control mode |
constant stress, deformation, displacement, three closed loop control |
||||||||||
Max. Load (kN) |
100 |
300 |
600 |
1000 |
2000 |
||||||
Load range |
2%~100%FS |
||||||||||
Force resolution |
1/300000 |
||||||||||
Load accuracy |
≤±1% |
||||||||||
Test force resolution value (kN) |
0.01 |
||||||||||
Deformation Measurement Range |
2% ~100% of extensometer measurement range |
||||||||||
Deformation indicationerror |
± 0.5%of indicating value |
||||||||||
Deformation resolution (mm) |
0.001 |
||||||||||
DisplacementIndication Error |
1%of indicating value |
||||||||||
Displacement Resolution |
0.01 |
||||||||||
Clamping Method (mm) |
Hydraulic clamping |
||||||||||
Control range of stress rate |
1MP/S-60MP/S |
||||||||||
Adjust range of test strain rate |
0.00025/S-0.0025/S |
||||||||||
Control range of displacement rate (mm/min) |
0.5-50 |
||||||||||
Gantry adjust speed (mm/min) |
150mm/min |
||||||||||
Max piston stoke (mm) |
250 |
||||||||||
Max. Tensile Test Space (mm) |
800-850mm (Can be customized ) |
||||||||||
Max.CompressionTest Space (mm) |
600-650 (Can be customized ) |
||||||||||
RoundSample Clamping Diameter (mm) |
Φ4-Φ32 |
Φ4-Φ32 |
Φ6-Φ50 |
Φ13-Φ60 |
Φ13-Φ70 |
||||||
Flat Sample Clamping thickness (mm) |
0-15/15-30 |
0-15/15-30 |
0-15/15-30 |
0-20/20-40 |
0-35/35-70 |
||||||
Clamping width of flat sample (mm) |
70 |
75 |
80 |
125 |
115 |
||||||
Pressure Plate Size |
Φ160/204x204(optional) |
||||||||||
Bending Test Branch Roller Width (mm) |
140 |
||||||||||
Roller distance of bending (mm) |
600 |
||||||||||
Voltage |
380V/50Hz/3Phase(can be customized) |
||||||||||
