300ton Wire Rope Chain Conductor ACSR Webbing Sling Optic Cable Horizontal Tensile Test Machine
Application:
The testing machine is mainly used to determine the tensile strength of electric cable, optic cable, steel wire rope, steel strand and other rope material. The testing machine adopts hydraulic cylinder to load, load cell to measure, computer to print and computer to display test data and other advanced technolog
Main technical parameter:
1. Max tensile force: 1000kn (or 600kN, 2000kN, 3000kN, 5000kN)
2. Test range: 2%~100%FS
3. Load accuracy:±1%
4. Display: Computer display, print,etc
5. WINDOWS interface operation, no language barrier, multilingual choose, report content modification function
6. Tensile distance: 1000mm (can customized)
7. Test speed: 0.1-300mm/min;
8. Max piston travel: 500mm (can customized)
9. Clamp: Bolt way/ hydraulic way
Configuration

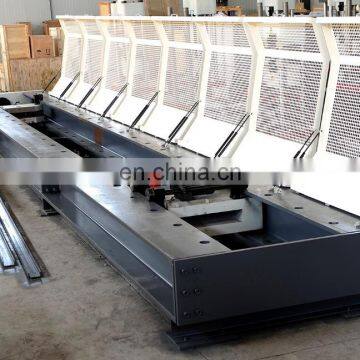

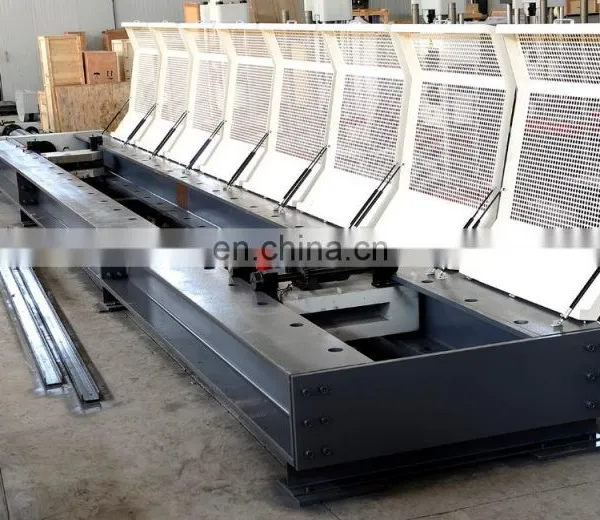

1. Test machine host
Single out bar double action low friction piston cylinder------ 1 set
Oil cylinder block------ 1 set
Tensile test fixture----- 1 set
Host framework (using the steel plate welding structure)-------1 set
Safety protection device (including protective cover, etc).------ 1 set
2. Control cabinet
Bench hydraulic pump station--1 set
Italy MARZOCCHI import oil pump
3. Tester acquisition display system
AD800 universal test card---- 1 set
Maxtest tester special software under the WINDOWS98/2000 / XP operating environment------ 1 set
High voltage control system---- 1 set
High precision load sensor----- 1 pc
4. Computer system:
LENOVO computer ----1set
HP printer---1set
