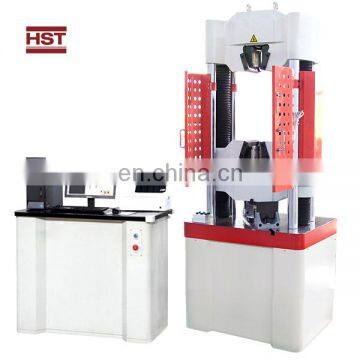

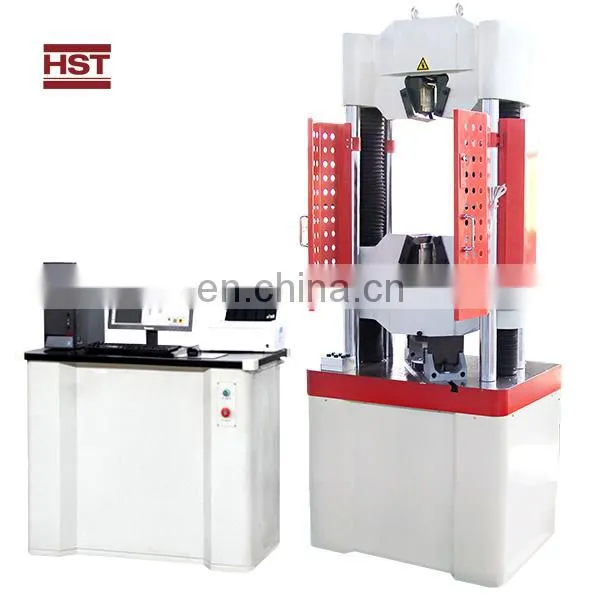

WEW-1000D Computer Display 1000kn UTM Universal Testing Machine
1.Application:
It is suitable for tensile,compression,bending,shearing,peeling,tearing and other tests
by adding different test fixture for metal and non-metal materials.It is widely used in inspection
department,engineering area,laboratories,universities and institutes for material properties
research and quality control.
2.Standards:
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN Standards.
3.Main Specifications:
Model |
WEW-1000D |
Structure |
6 Column (Four Columns Two Ball Screws) |
Control Way |
Loading Process Manual Control, Computer Automatic Data Dealing. |
Max. Load |
1000kN |
Load Accuracy |
≤±1% (Optional: ≤± 0.5%) |
Load Range |
2%-100%FS (Optional: 0.4%-100%FS) |
Load Resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation Accuracy |
≤± 1% (Optional: ≤± 0.5%) |
Displacement Resolution |
0.01mm |
Displacement Error |
≤±0.5% |
Max.Piston Stroke |
250mm |
Max. Piston Moving Speed |
0-50mm/min Manual adjustment |
Crossbeam Lifting Speed |
120mm/min |
Max. Tension Test Space |
650mm(Can Be Customized) |
Max. Compression Test Space |
500mm(Can Be Customized) |
Center Spacing Between Columns |
600mm |
Column Effective Spacing |
525mm |
Clamping Method |
Hydraulic Automatic Clamp |
Round Specimen Clamping Range |
Φ13-Φ26mm,Φ26-Φ40mm (Optional: Φ6-Φ13mm, Φ40-Φ50mm) |
Flat Specimen Clamping Range |
0-15mm (Optional: 15-30mm) |
Flat Specimen Clamping Width |
80mm |
Compression Plate Size |
φ160mm |
Bending Roller Distance |
450mm |
Width Of Bending Rollers |
120mm |
Power Supply |
3-phase,AC380V, 50Hz (Can Be Customized) |
