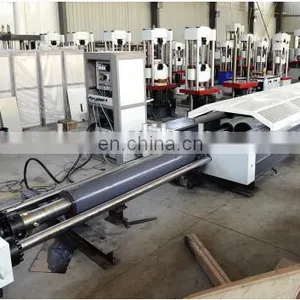

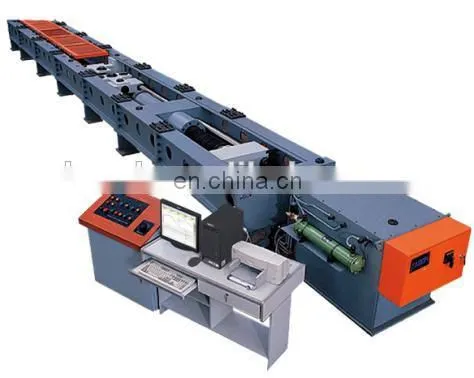

WAL Computer Control Electro-Hydraulic Servo Horizontal Tensile Testing Machine
Application:
This machine is mainly designed for tensile strength tests on all kinds of mental component, anchor chain, hook, wire rope, stopper, electric cable and separating disc.
Main technical parameter:
Model |
WAL-600 |
WAL-1000 |
WAL-2000 |
WAL-3000 |
|
Max Load Capacity |
600KN |
1000KN |
2000KN |
3000KN |
|
Range of Testing Force |
4%-100% |
||||
Accuracy of Testing Force |
±1% |
||||
Relative error of displacement |
±1% |
||||
Stress speed |
1-45Mpa/s |
||||
Precision of constant stress |
±1% |
||||
Stretching distance |
0-10000mm |
||||
Piston stroke |
500mm or customized |
||||
Method of Specimen Clamping |
Bolt way,specially according to the specimen that customer provide. |
||||
Control mode |
Computer controlled or hand valve control |
||||
Effective testing space |
Width 750mm or customized |
||||
Fixed-way of moving beam |
Manual bolt fixed or hydraulic automatic bolt fixed |
||||
Power supply |
220V/380V, 50Hz |
||||
