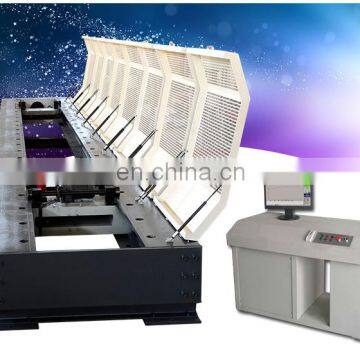

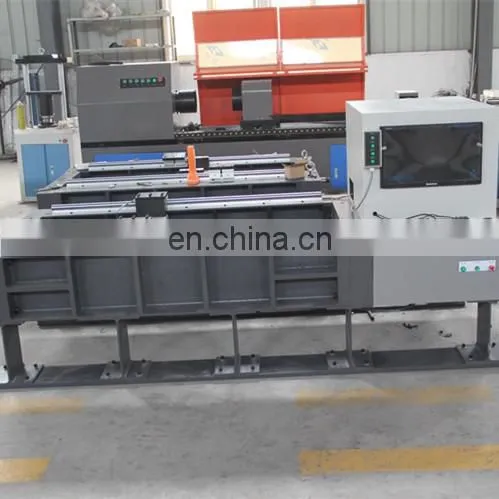

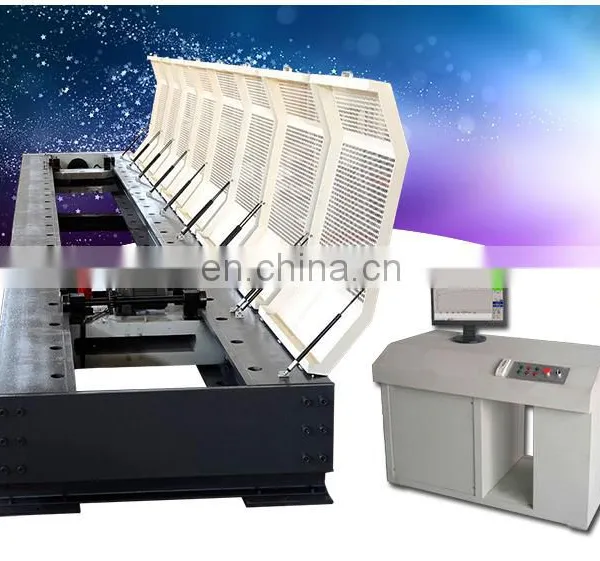

WAL Computer Control Electro-Hydraulic Servo Horizontal Tensile Testing Machine
Application:

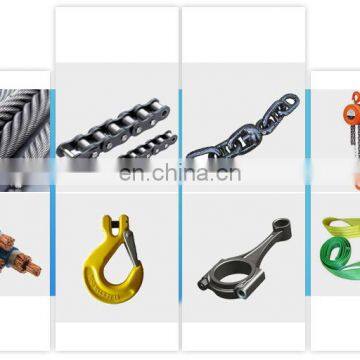

This machine is mainly designed for tensile strength tests on all kinds of mental component, anchor chain, hook, wire rope, stopper, electric cable and separating disc.
Main technical parameter:
Model |
WAL-600 |
WAL-1000 |
WAL-2000 |
WAL-3000 |
|
Max Load Capacity |
600KN |
1000KN |
2000KN |
3000KN |
|
Range of Testing Force |
4%-100% |
||||
Accuracy of Testing Force |
±1% |
||||
Relative error of displacement |
±1% |
||||
Stress speed |
1-45Mpa/s |
||||
Precision of constant stress |
±1% |
||||
Stretching distance |
0-10000mm |
||||
Piston stroke |
500mm or customized |
||||
Method of Specimen Clamping |
Bolt way,specially according to the specimen that customer provide. |
||||
Control mode |
Computer controlled or hand valve control |
||||
Effective testing space |
Width 750mm or customized |
||||
Fixed-way of moving beam |
Manual bolt fixed or hydraulic automatic bolt fixed |
||||
Power supply |
220V/380V, 50Hz |
||||
Configuration
1. Test machine host
Single out bar double action low friction piston cylinder------ 1 set
Oil cylinder block------ 1 set
Tensile test fixture----- 1 set
Travelling car( used to ensure beam and the piston level movement)----- 1 set
Host framework (using the steel plate welding structure)-------1 set
Safety protection device (including protective cover, etc).------ 1 set
2. Control cabinet
Bench hydraulic pump station--1 set
Italy MARZOCCHI import oil pump
3. Tester acquisition display system
AD800 universal test card---- 1 set
Maxtest tester special software under the WINDOWS98/2000 / XP operating environment------ 1 set
High voltage control system---- 1 set
High precision load sensor----- 1 pc
4. Computer system:
LENOVO computer ----1set
HP printer---1set
Features:
1. Computer automatic loop-closed control, sensor test force,
2. Computer screen can timely display, memory printing
3. Sample hydraulic automatic clamping
4. Automatic calculate the material test result of the max force, tensile strength,yield strength, elastic modulus, percentage elongation after fracture, reduction of area
5. Safety net protecting the test personnel is available when sample breaking
