Product Details
Brand Name: | Hongliang | Place of Origin: | Henan, China | Model Number: | SAX -W |
Type: | Low Voltage | Application: | Overhead | Insulation Material: | XLPE |
Conductor Material: | Aluminum |
Product Description

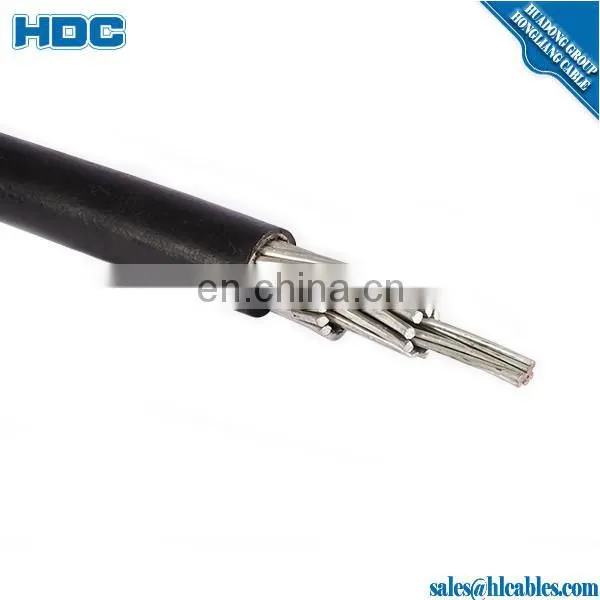

SFS 5791 SAX-W 70 Covered conductor Compacted aluminum conductor XLPE insulation factory price
Area of application: SAX and ABC type wires are laid for the purpose of lighting on the exterior of accomodations (external walls) or supplying technical equipment with power with rated operation voltage of up to 0.66, 1.0, 10, 20, 35 kV in accordance with II and III atmosphere specified in State Standard 15150. The insulation material used for the wire emits no toxic substance and concentrate hazardous for human organism and environment, when used in installation temperature.
The insulation material used in SAX type wires is low density thermoplastic polyethylene (LDPE)
The insulation material used in ABC type wires is cross-linked polyethylen (XLPE)
Technical parameters:
- Rated operation voltage: 0.66/1.0 kV (for ABC)
- Rated operation voltage: 10/20/35 kV (for SAX)
- Lateral section of cores, mm2: 16 ÷ 240 (for ABC)
- Lateral section of cores, mm2: 35 ÷ 240 (for SAX)
- Wire is sunlight and rain resistant
- Ambient environmental temperature during use of wire: -60°C +50°C
- Service life: 40 years
- Warranty period from the moment of operation: 3 years

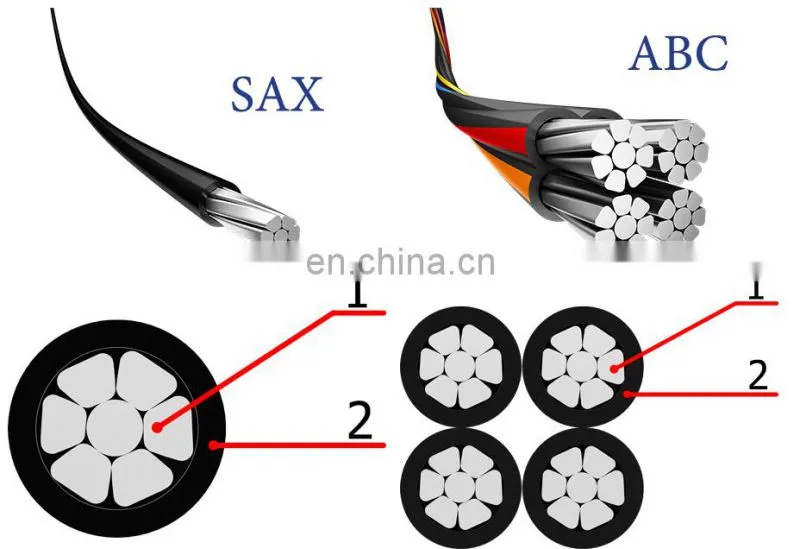

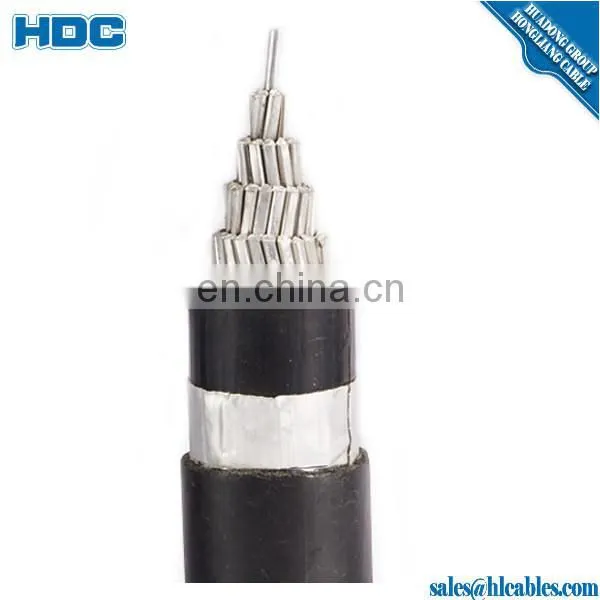

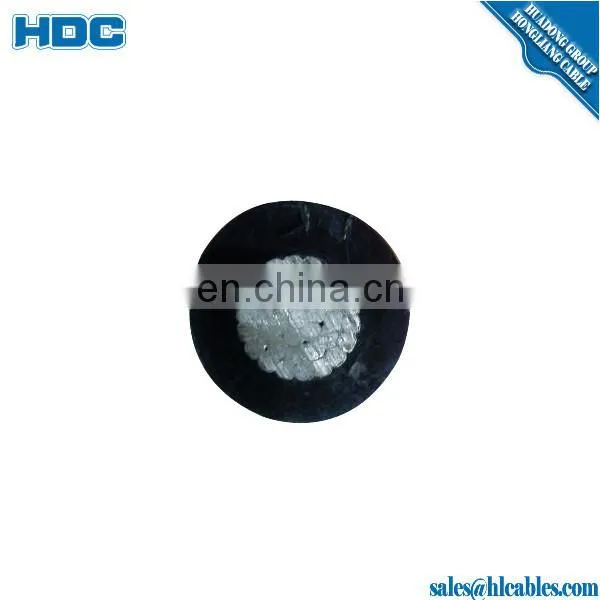

Construction

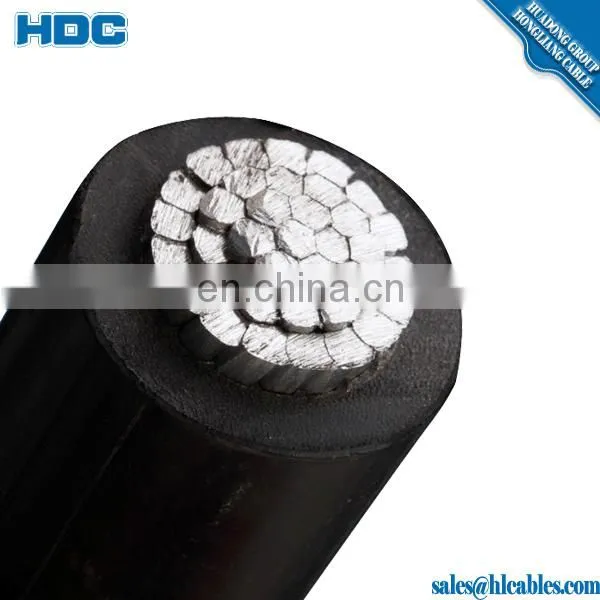

1. Aluminum wire hermetic core- 2. Insulation of light-stabilised cross-link polyethylene (XLPE)

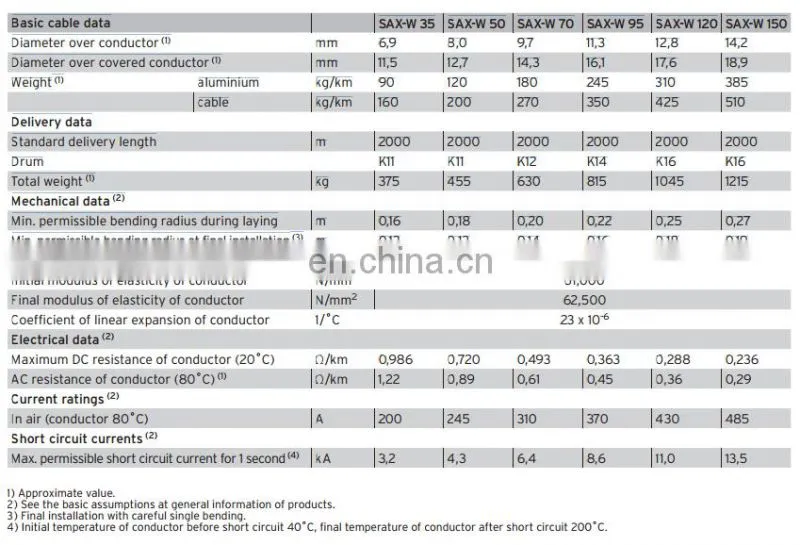

Weights and resistivities of ABC cables
Technical parameters:
- Rated operation voltage: 0.66/1.0 kV (for ABC)
- Rated operation voltage: 10/20/35 kV (for SAX)
- Lateral section of cores, mm2: 16 ÷ 240 (for ABC)
- Lateral section of cores, mm2: 35 ÷ 240 (for SAX)
- Wire is sunlight and rain resistant
- Ambient environmental temperature during use of wire: -60C+50C
- Service life: 40 years
- Warranty period from the moment of operation: 3 years
1,wooden drum, Iron wooden drum or as your request
. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
2, the long & wide & high of 40 size container:11.9*2.32*2.72
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Frequently Asked Question
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
