IEC 60287 Standard Aerial Bundle Conductor ABC Cable 3x95+50mm2 Black XLPE Insulation Aluminum Conductor
- Qingdao/Tianjin/Shanghai
- T/T Credit Card
You May Like
-
IEC GB12527-1990 AAC AAAC ACSR Conductor 0.6/1kv Low Voltage ABC Cable Overhead Aluminum Cables
-
LSZH Sheath 4FO 8 FO G652D GYTA333 Optical Cable Factory Price
-
Vietnam Best Selling Optical Ground Wire OPGW Telecommunication Cable 57/12 57/24Size Factory Price
-
Abc Cable 3x70+1x50 70mm2 Overhead Low Voltage Twisted Abc Cable
-
3 x 70mm2 + 56mm2 + 2x 16MM2 NFA2X 2x16(mm2) NFC33-209 Abc Cable 4 Core
-
Transformer Cable ABC Cable AAC Conductor 1/0awg 2awg 16mm2 25mm2 Black XLPE Insulation Overhead Cable
Product Details
| Brand Name | Hongliang | Place of Origin | Hebei, China | |
| Model Number | ABC cable | Type | Low Voltage | |
| Application | Overhead | Insulation Material | XLPE | |
| Jacket | PE | Conductor Material | Aluminum |
Product Description

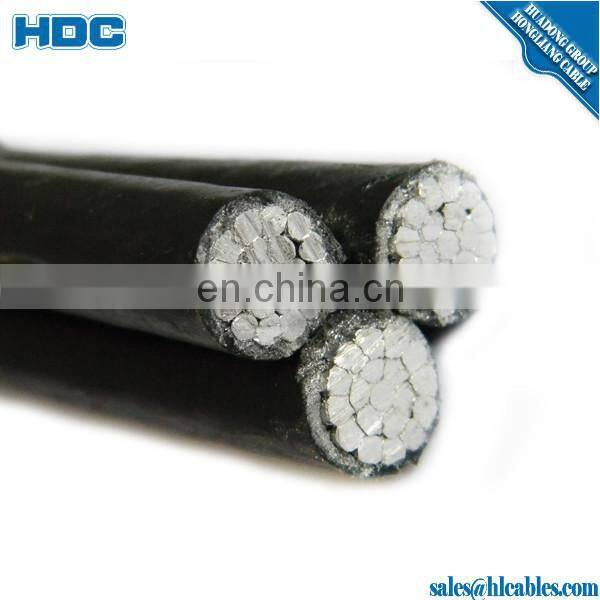

IEC 60287 Standard Aerial bundle conductor ABC cable 3x95+50mm2 Black XLPE insulation Aluminum conductor

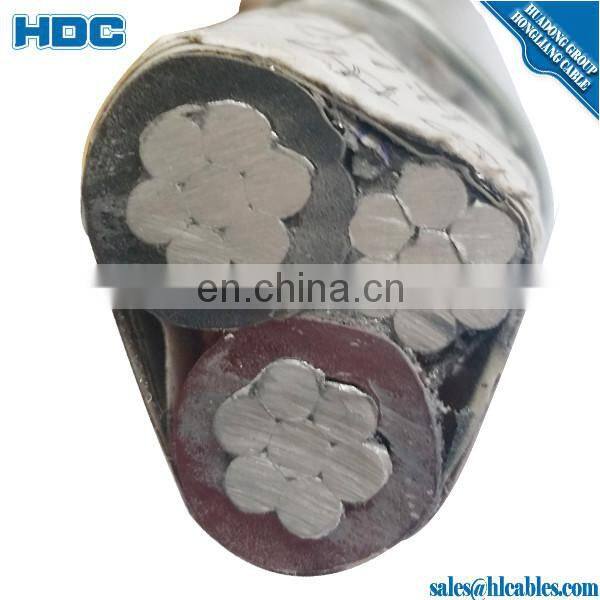

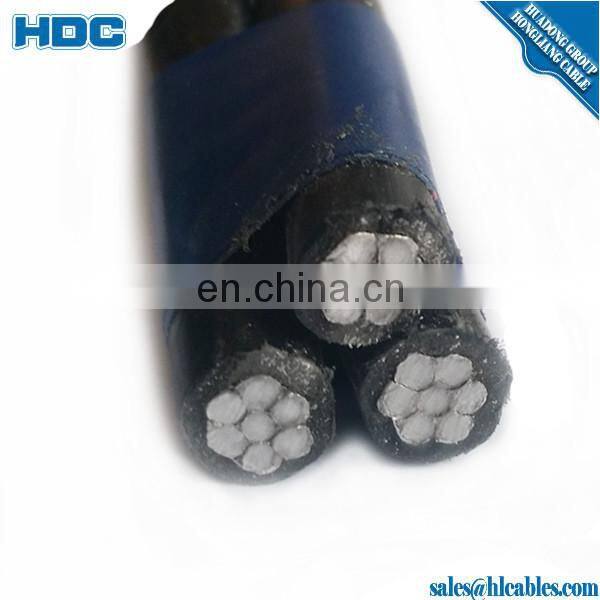

Construction

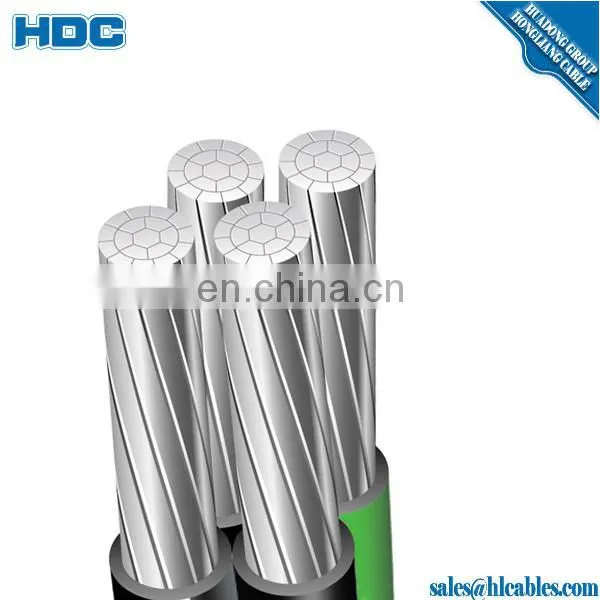

1.Phase Conductor: Aluminum conductor and compact circular stranded
2.Messenger Conductor: Aluminum alloy conductor and compact circular stranded
3.Insulation: Extruded black weather-resistant Polythylene (PE) or Cross-linked Polythylene(XLPE)
4.Completed cable:Insulated phase conductors shall be held firmly onto the insulated neutral messenger
1 | 2 | 3. | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
Specification | Conductor | Insulation Thickness | cable core
| |||||||
Type | Area | Stranding | Max. Resistance | Conductor Dia
| BreakingLoad | (normal) | Outer Dia
| |||
|
(mm2) |
| 20°C (Ω/km) | Min (mm) | Max (mm) | Min (daN) |
(mm) | Min (mm) | Max (mm) | |
Phase core or lighting core
| 16 25 35
50 70 95 120 150 | 7 7 7
7 12 19 19 19 | 1.9l 1.20 0.868
0.641 0.443 0.320 0.253 0.206 | 4.6 5.8 6.8
7.9 9.7 11.0 12.0 13.9 | 5.1 6.3 7.3
8.4 10.2 12.0 13.1 15.0 | 190 300 -
- - - - - | 1.2 1.4 1.6
1.6 1.8 1.8 1.8 1.7 | 7.0 8.6 10.0
11.1 13.3 14.6 15.6 17.3 | 7.8 9.4 lO.g
12.0 14.2 15.7 16.7 18.6 | |
Self-supported conductor | 54.6 70 95 | 7 7 19 | 0.63 0.50 0.343 | 9.2 10.0 12.2 | 9.6 10.2 12.9 | 1660 2050 2750 | 1.6 1.5 1.6 | 12.3 12.9 15.3** | 13.0 13.6 16.3** | |
Test line | 1.5 | 1 | 12.1 | - | 1.5 | - | 1.2 | 3.7 | 4. | |
1,wooden drum, Iron wooden drum or as your request
. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
2, the long & wide & high of 40 size container:11.9*2.32*2.72
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Frequently Asked Question
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
