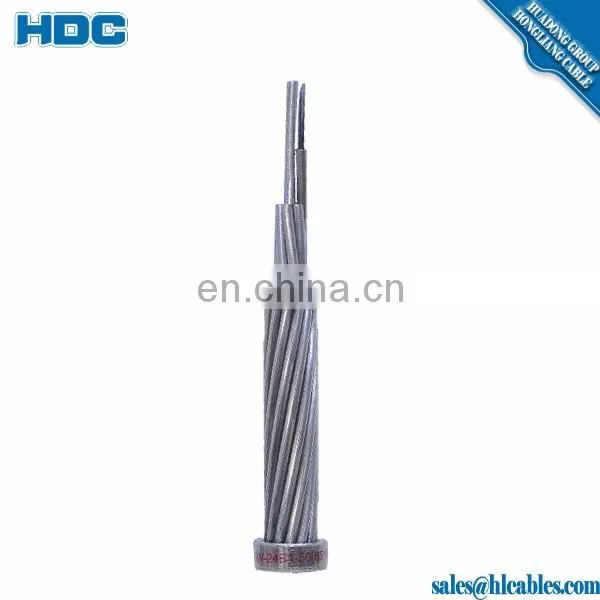

Help CenterVietnam Best Selling Optical Ground Wire OPGW Telecommunication Cable 57/12 57/24Size Factory Price
Related Products
-
Abc Cable 3x70+1x50 70mm2 Overhead Low Voltage Twisted Abc CableUS$ 1 - 5MOQ: 1000 Meters -
3 x 70mm2 + 56mm2 + 2x 16MM2 NFA2X 2x16(mm2) NFC33-209 Abc Cable 4 CoreUS$ 1.2 - 48MOQ: 200 Meters
-
Transformer Cable ABC Cable AAC Conductor 1/0awg 2awg 16mm2 25mm2 Black XLPE Insulation Overhead CableUS$ 0.1 - 23MOQ: 200 Meters
-
600V AAC Neutral Messenger XLPE Insulated Overhead 6 Awg Duplex Cable WireUS$ 0.1 - 28MOQ: 1000 Meters
-
Optical Ground Wire OPGW Telecommunication Cable AC 72/504 Size Factory PriceUS$ 410 - 600MOQ: 1 Kilometer

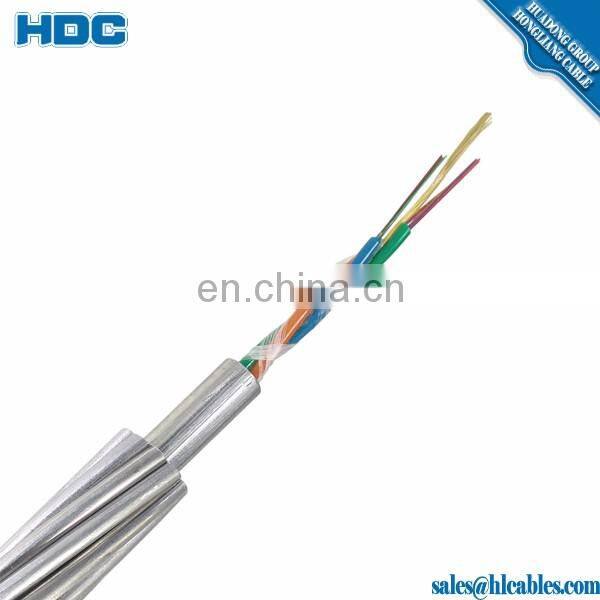

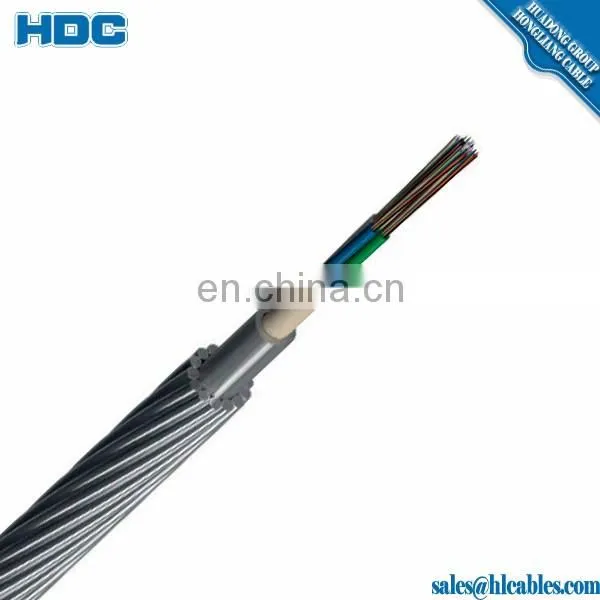

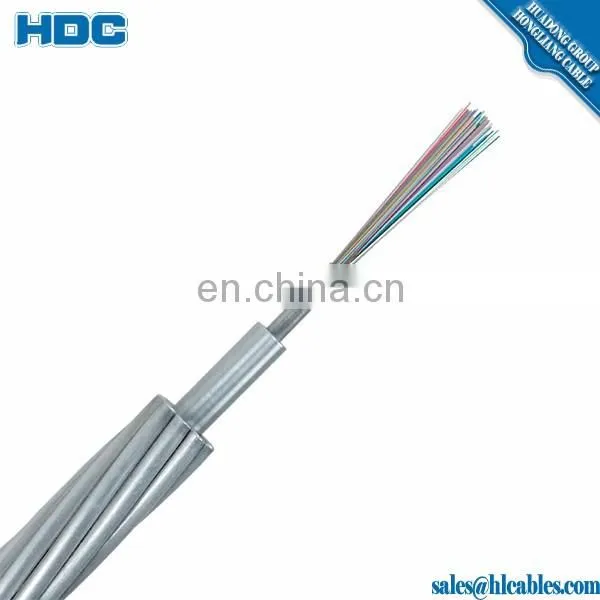

AlumaCore Optical Ground Wire is preferred for its central aluminum pipe and color-coded fiber optic buffer tubes which simplify the splicing process while providing optimum fiber protection as well as long term product reliability.
Optical Ground Wire is a dual functioning cable. It is designed to replace traditional static/shield/earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes. OPGW must be capable of withstanding the mechanical stresses applied to overhead cables by environmental factors such as wind and ice. OPGW must also be capable of handling electrical faults on the transmission line by providing a path to ground without damaging the sensitive optical fibers inside the cable
Features:
1>Preferred option for easy handling and splicing
2>Thick-walled aluminum pipe provides excellent crush resistance
3>Hermetically sealed pipe protects optical fibers
4>Outer wire strands selected to optimize mechanical and electrical properties
5>Optical sub-unit provides exceptional mechanical and thermal protection for fibers
6>Dielectric color-coded optical sub-units available in fiber counts of 6, 8, 12, 18 and 24
7>Multiple sub-units combine to achieve fiber counts up to 144
Applications:
OPGW is primarily being used by power transmission industry for lightning shielding purposes as well as telecommunications facility for data transfer. OPGW is designed considering environmental factors such as wind and iceload to avoid any disruption in data transmission.
Temperature Range:
- Operating: -40C to +85C
- Storage: -50C to +85C
- Installation: -30C to +85C
| # | Fibers | OPGW Size | Fault Current | Total Conductor Area | Overall Diameter | Weight |
|---|---|---|---|---|---|---|
| 1 | 12 | AC-57/465 | 41 (kA)2sec | 78.08 mm2 | 11.8 mm. | 0.447 kg/m |
| 2 | 12 | AC-29/29/465 | 51 (kA)2sec | 78.08 mm2 | 11.8 mm. | 0.333 kg/m |
| 3 | 12 | AC-72/504 | 56 (kA)2sec | 93.21 mm2 | 12.8 mm. | 0.548 kg/m |
| 4 | 12 | AC-32/40/504 | 70 (kA)2sec | 93.21 mm2 | 12.8 mm. | 0.420 kg/m |
| 5 | 24 | AC-64/528 | 68 (kA)2sec | 97.43 mm2 | 13.4 mm. | 0.535 kg/m |
| 6 | 24 | AC-29/34/528 | 81 (kA)2sec | 97.43 mm2 | 13.4 mm. | 0.418 kg/m |
| 7 | 24 | AC-74/552 | 81 (kA)2sec | 107.51 mm2 | 14.0 mm. | 0.602 kg/m |
| 8 | 24 | AC-37/37/552 | 98 (kA)2sec | 107.51 mm2 | 14.0 mm. | 0.455 kg/m |
| 9 | 36 | AC-71/571 | 95 (kA)2sec | 113.39 mm2 | 14.5 mm. | 0.611 kg/m |
| 10 | 36 | AC-33/38/571 | 110 (kA)2sec | 113.39 mm2 | 14.5 mm. | 0.480 kg/m |
| 11 | 36 | AC-86/607 | 118 (kA)2sec | 129.14 mm2 | 15.4 mm. | 0.716 kg/m |
| 12 | 36 | AC-40/47/607 | 141 (kA)2sec | 129.14 mm2 | 15.4 mm. | 0.558 kg/m |
| 12 | 48 | AC-86/646 | 151 (kA)2sec | 142.43 mm2 | 16.4 mm. | 0.757 kg/m |
| 13 | 48 | AC-34/52/646 | 172 (kA)2sec | 142.43 mm2 | 16.4 mm. | 0.621 kg/m |
| 14 | 48 | AC-129/724 | 239 (kA)2sec | 185.57 mm2 | 18.4 mm. | 1.046 kg/m |
| 14 | 48 | AC-65/65/724 | 292 (kA)2sec | 185.57 mm2 | 18.4 mm. | 0.789 kg/m |
| 15 | 72 | AC-88/659 | 154 (kA)2sec | 143.98 mm2 | 16.7 mm. | 0.768 kg/m |
| 16 | 72 | AC-38/49/659 | 177 (kA)2sec | 143.98 mm2 | 16.7 mm. | 0.615 kg/m |
| 17 | 72 | AC-102/691 | 182 (kA)2sec | 158.96 mm2 | 17.5 mm. | 0.866 kg/m |
| 18 | 72 | AC-44/58/691 | 212 (kA)2sec | 158.96 mm2 | 17.5 mm. | 0.692 kg/m |
| 19 | 144 | AC-82/646 | 144 (kA)2sec | 138.52 mm2 | 16.4 mm. | 0.741 kg/m |
| 20 | 144 | AC-39/43/646 | 166 (kA)2sec | 138.52 mm2 | 16.4 mm. | 0.588 kg/m |
| 21 | 144 | AC-125/726 | 230 (kA)2sec | 181.48 mm2 | 18.4 mm. | 1.030 kg/m |
| 22 | 144 | AC-58/67/726 | 277 (kA)2sec | 181.48 mm2 | 18.4 mm. | 0.800 kg/m |
With 15 working days
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
CABLE BARE OPGW 112 MM 132 FIBRE BARE CONDUCTORStandard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
CABLE BARE OPGW 112 MM 132 FIBRE BARE CONDUCTOR Certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the
Transformation of Urban and Rural Power Grid Construction.
ITU-T G.652 cable opgw fiber optical ACS outer conductor 12 fiber24fiber 60mm2 factory price
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
